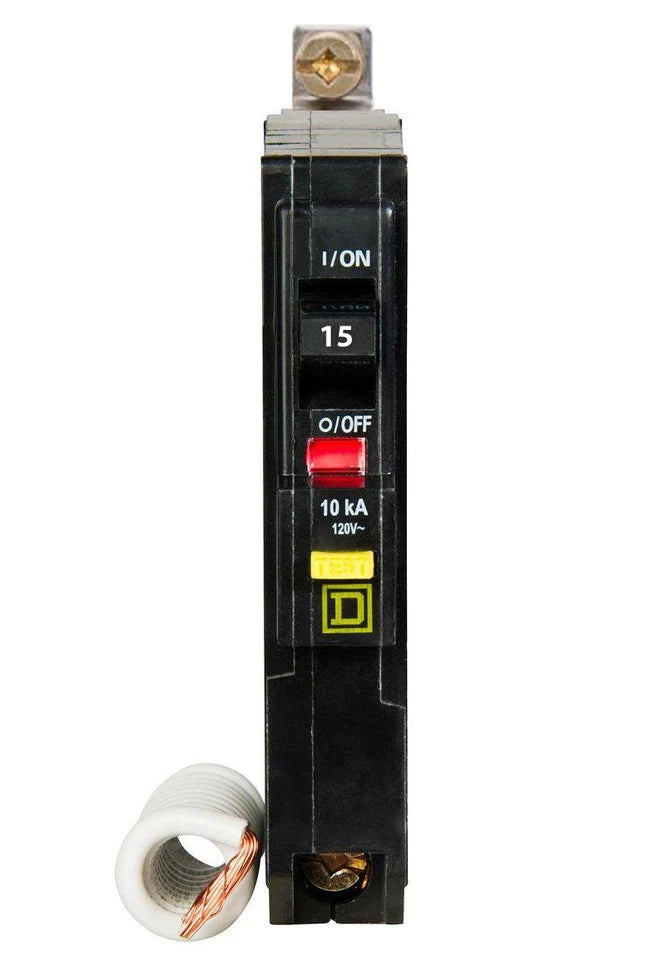

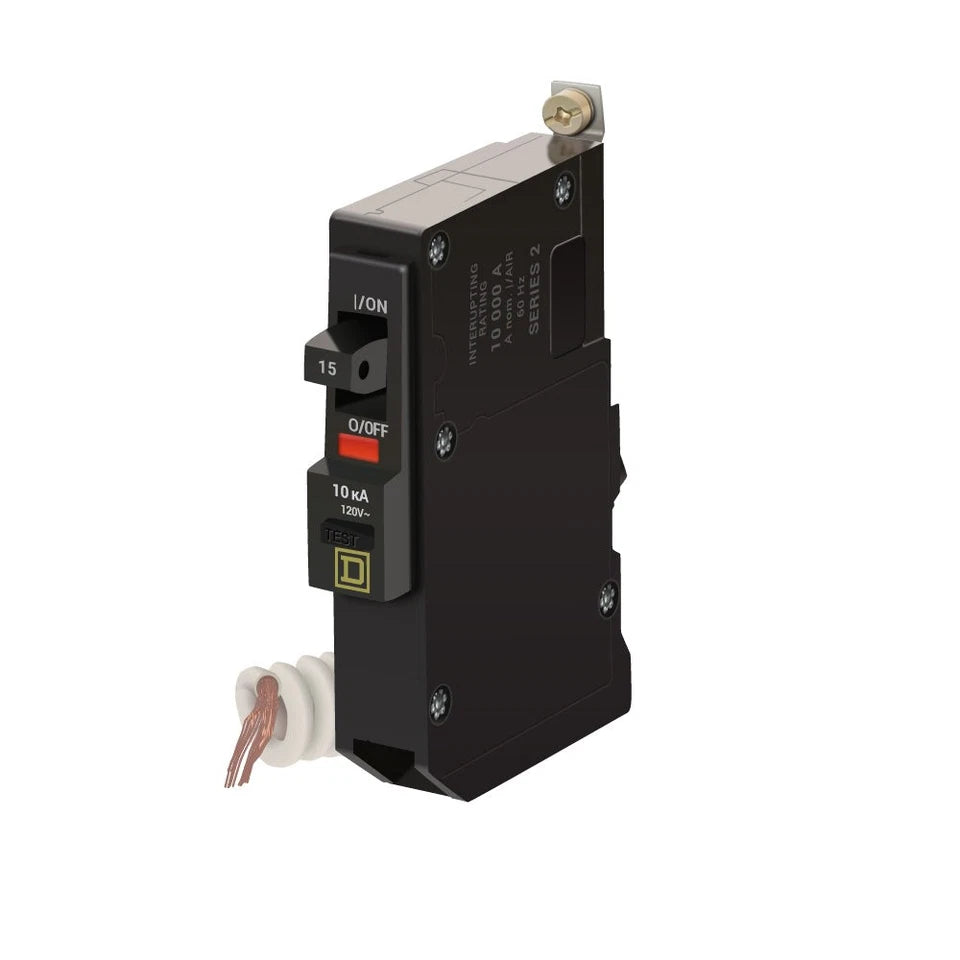

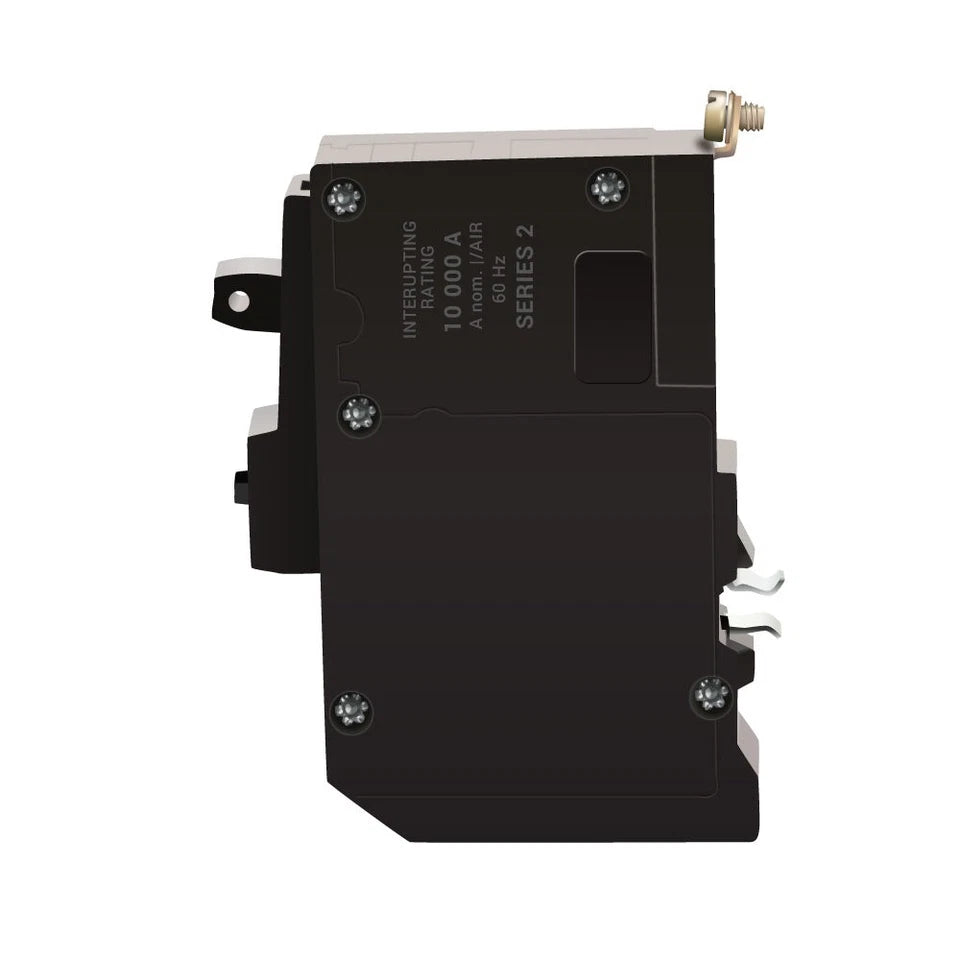

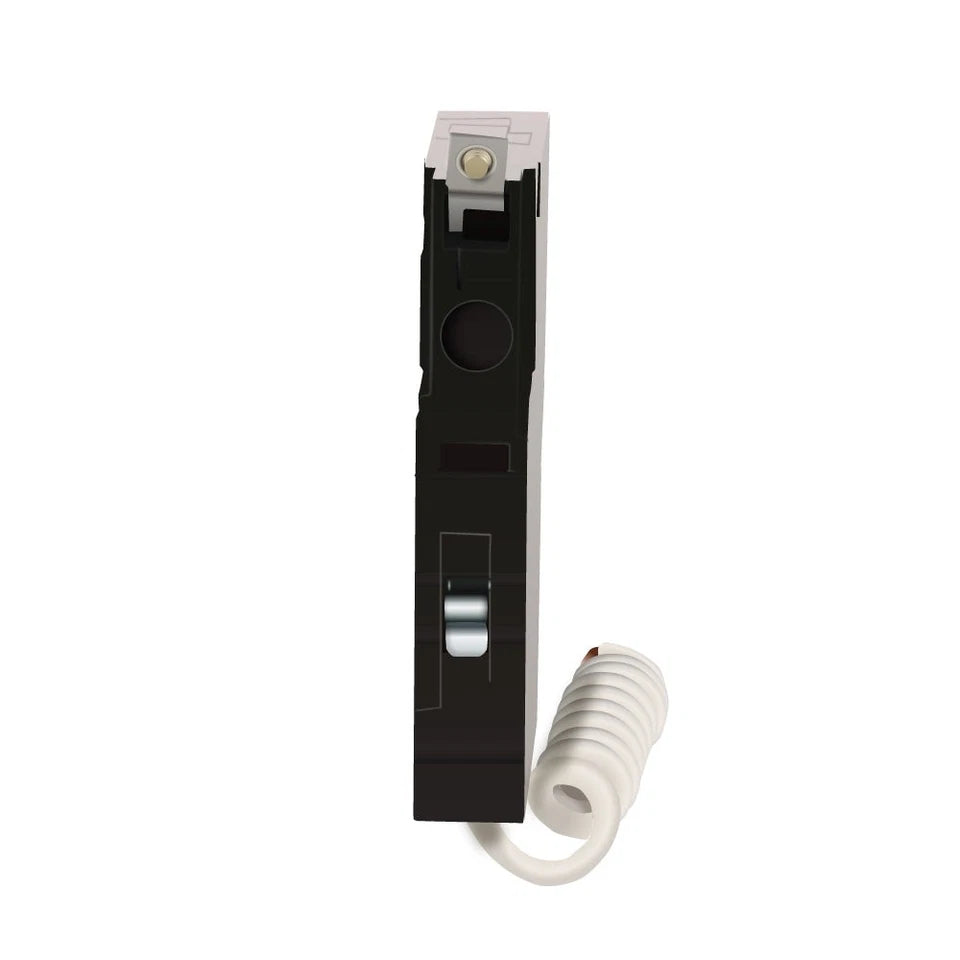

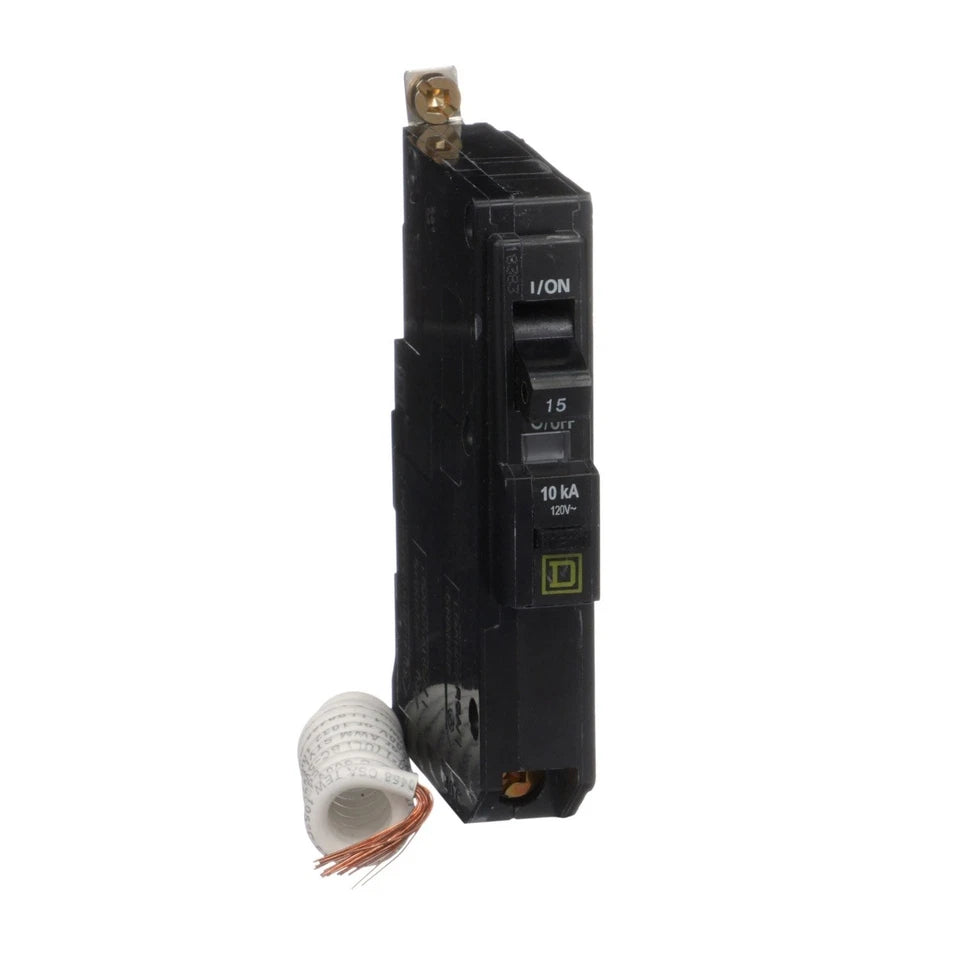

QOB115EPD | Square D QO Series 15A 1-Pole 120V Bolt-On GFCI Circuit Breaker
- Regular price
- $332.00
- Sale price
- $332.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QOB115EPD
Description
The Square D QOB115EPD is a single-pole bolt-on circuit breaker designed to provide reliable overcurrent protection in residential and commercial electrical systems. Rated at 15 amps and 120 VAC, this breaker features thermal-magnetic trip technology for dependable long-time and instantaneous protection. It is engineered for use in Square D QO load centers and NQ panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | QOB115EPD |
| Subcategory | Circuit Breakers |
| Series | QO |
| Product Type | GFCI Circuit Breaker |
| Rated Current | 15 A |
| Number of Poles | 1 |
| Phase | Single Phase |
| Voltage Rating | 120 VAC |
| Protection Type | Thermal-Magnetic |
| Interrupting Rating | 10 kAIC @ 120 VAC |
| Mounting Type | Bolt-On |
| Terminal Type | Pressure Plate |
| Wire Size | AWG 14–8 Copper, AWG 12–8 Aluminum |
| Actuator Type | Paddle |
| Temperature Rating | 40 °C |
| Height | 4.1 in |
| Width | 0.7 in |
| Depth | 2.9 in |
| Weight | 0.3 lb (approx.) |
Information About QOB115EPD
The QOB115EPD is part of Square D’s QO series, known for compact design and dependable performance in branch circuit protection. This breaker utilizes a thermal-magnetic trip mechanism to protect circuits from overloads and short-circuit conditions. Its bolt-on mounting design ensures a secure mechanical and electrical connection within compatible panelboards. Designed to meet UL, CSA, HACR, RoHS, and REACh standards, the breaker supports copper and aluminum conductors across a defined wire range for flexible installation.
Key Features:
- 15 Amp Current Rating: Designed for standard branch circuit protection.
- Single-Pole Configuration: Supports single-phase, 120V electrical systems.
- Thermal-Magnetic Protection: Provides long-time overload and instantaneous fault protection.
- Bolt-On Mounting Design: Ensures secure installation and reliable electrical contact.
- 10 kA Interrupting Rating: Rated for fault protection at 120 VAC.
- Pressure Plate Terminals: Allows secure connection of copper or aluminum conductors.
- QO Series Compatibility: Designed for use with QO load centers and NQ panelboards.
The QOB115EPD delivers the reliability and precision required for residential and commercial branch circuit protection.
