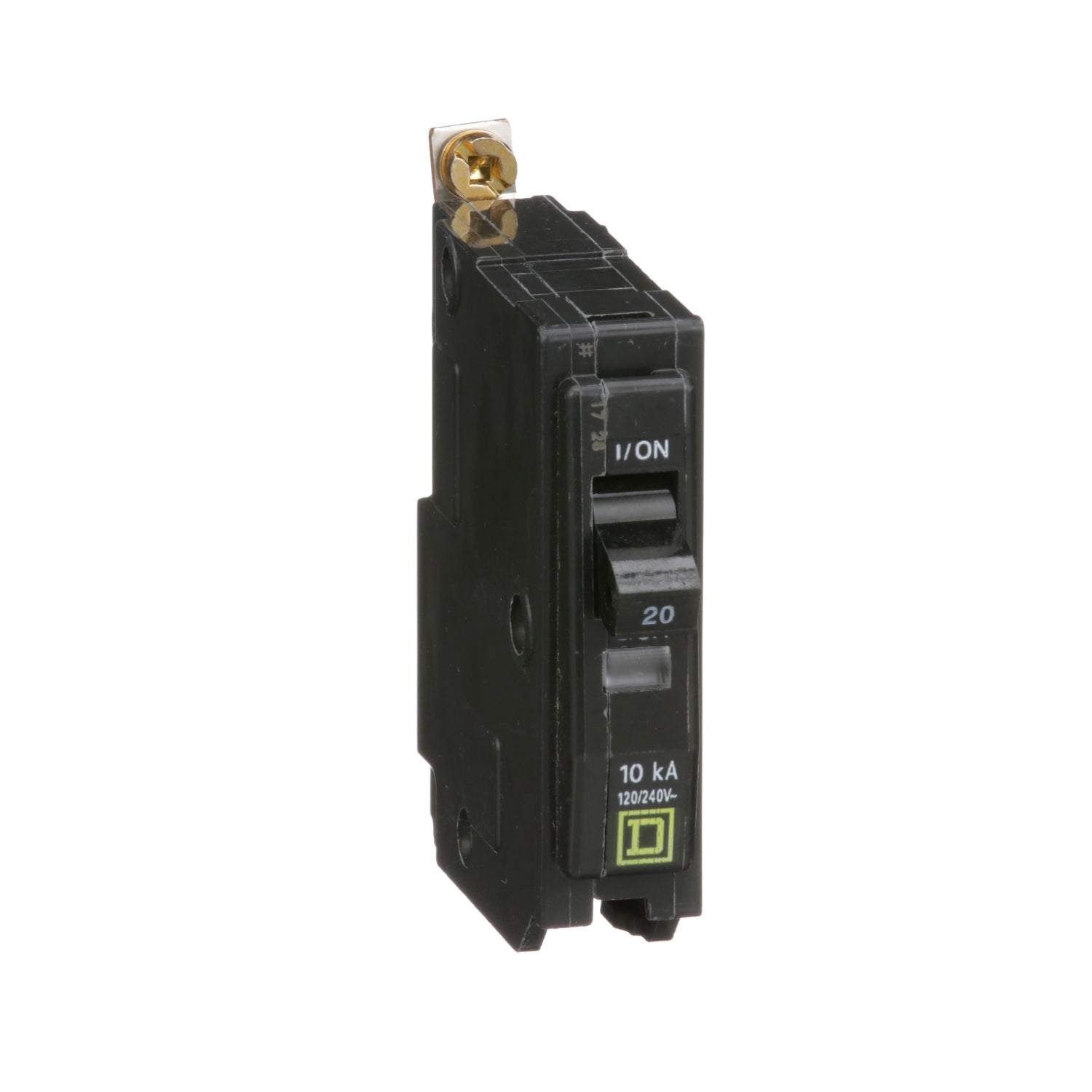

QOB120 | Schneider Electric Mini Circuit Breaker
- Regular price
- $55.00
- Sale price
- $55.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB120
Description
The QOB120 is a mini circuit breaker manufactured by Schneider Electric under the QO series. Designed for overcurrent protection and switching in AC and DC systems, it comes in one, two, and three pole configurations. Featuring an over-center, trip-free toggle mechanism with quick make, quick break action and positive handle indication, it ensures efficient operation.
Equipped with VisiTrip trip indication, the QOB120 provides visual confirmation of a tripped circuit. It offers a range of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, enhancing its functionality and adaptability to various applications
Technical Specifications
|
Part # |
QOB120 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA 120/240 V AC, 10 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.30 lb(US) (0.136 kg) |
Information About QOB120
The QOB120 is a mini circuit breaker designed by Schneider Electric as part of the QO series. These circuit breakers, available in one, two, and three pole configurations, are thermal magnetic devices engineered to deliver overcurrent protection and switching capabilities for both AC and DC systems.
Featuring an over-center, trip-free toggle mechanism, they ensure quick make, quick break action and positive handle indication for efficient operation. Additionally, they incorporate VisiTrip trip indication, offering a visual cue when the circuit breaker has tripped and interrupted the circuit, aiding in troubleshooting.
The QOB120 is specifically a 1-pole QO circuit breaker, rated at 20A and compatible with 120/240VAC systems. It boasts a robust 10kA breaking capacity, ensuring reliable performance under various load conditions.
With bolt-on mounting, installation of the QOB120 is straightforward and secure. Additionally, a comprehensive range of features and factory-installed accessories are available, including shunt trips, auxiliary switches, and alarm switches, enhancing its versatility and functionality.
