QOB1201021 | Schneider Electric Mini Circuit Breaker
- Regular price
- $174.00
- Sale price
- $174.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB1201021
Description

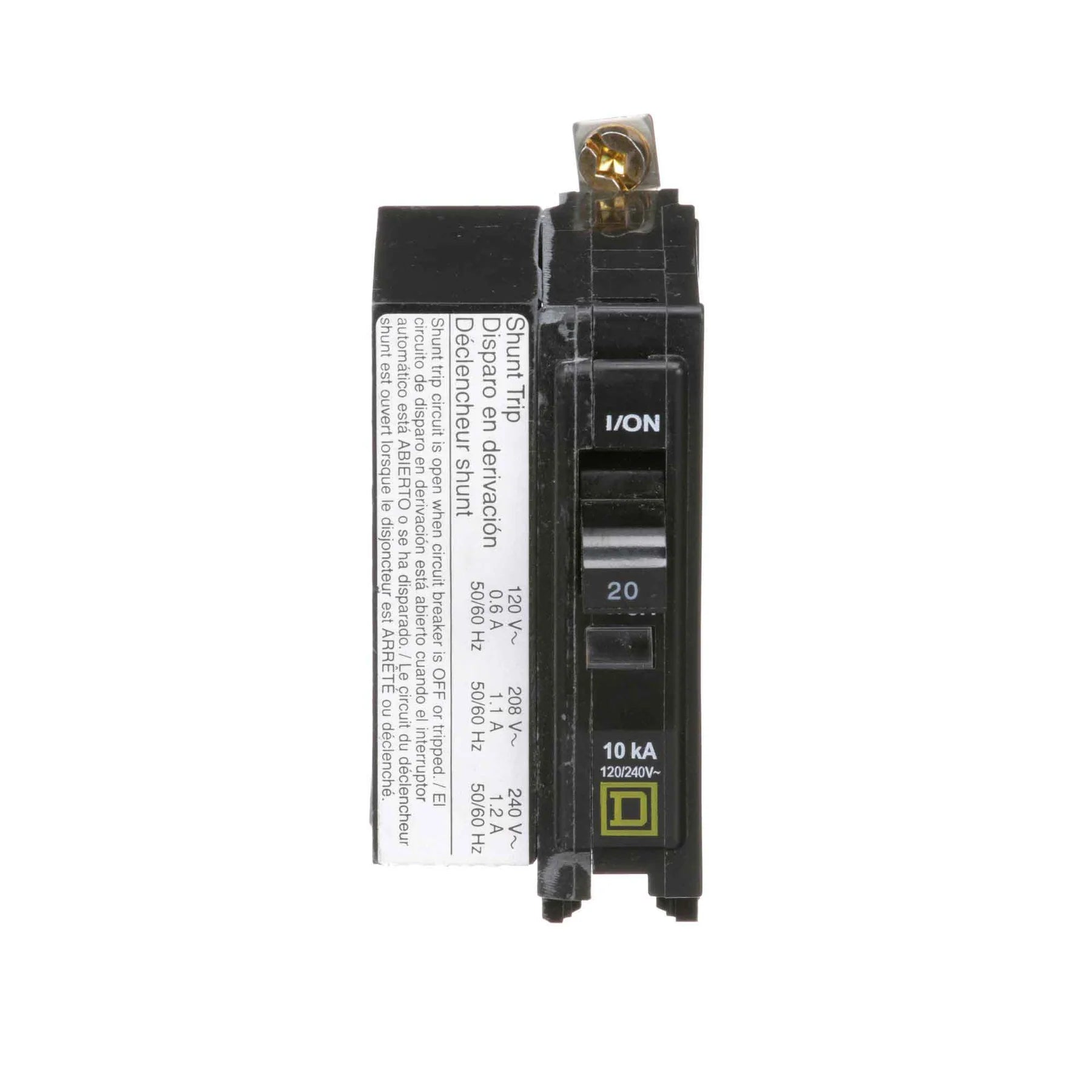

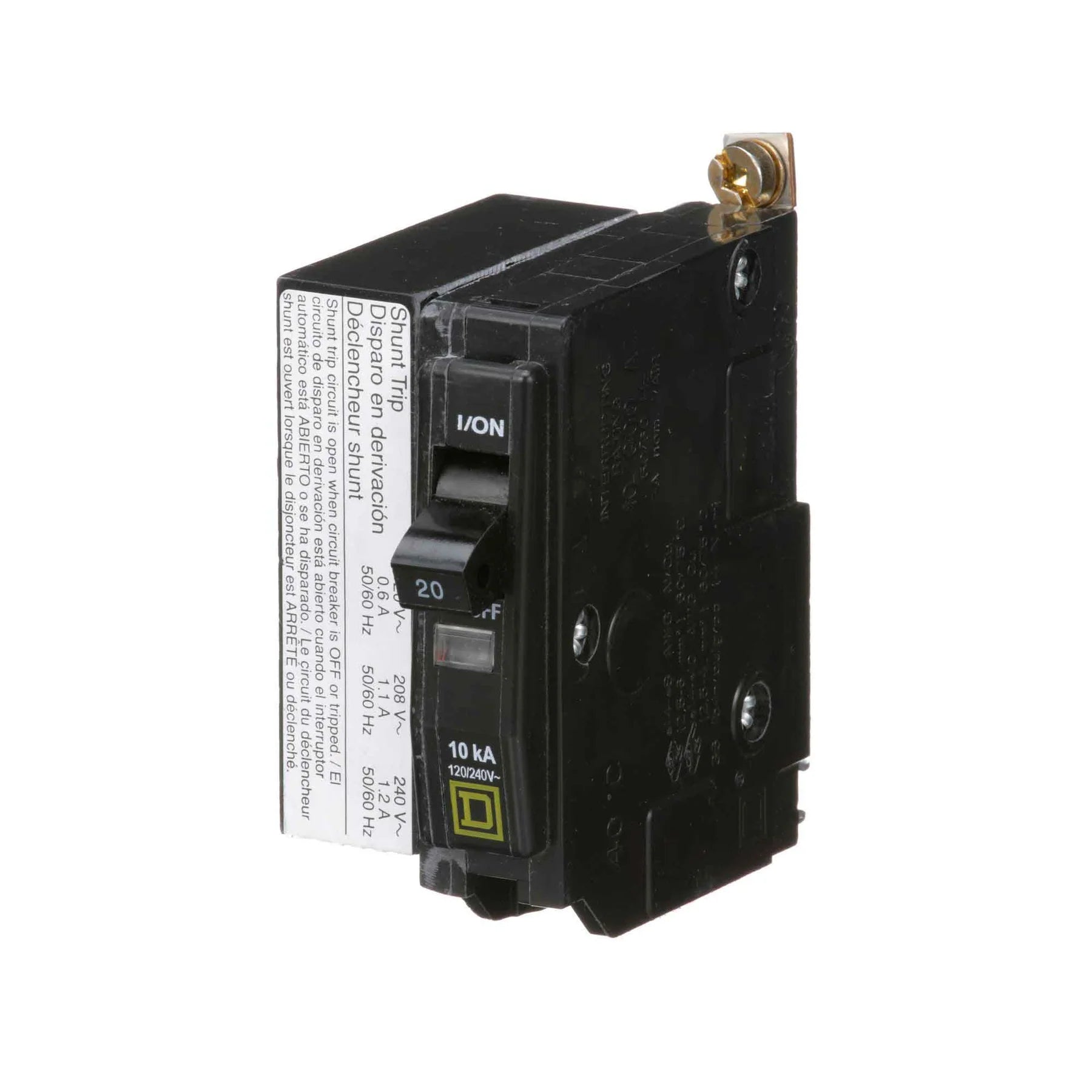

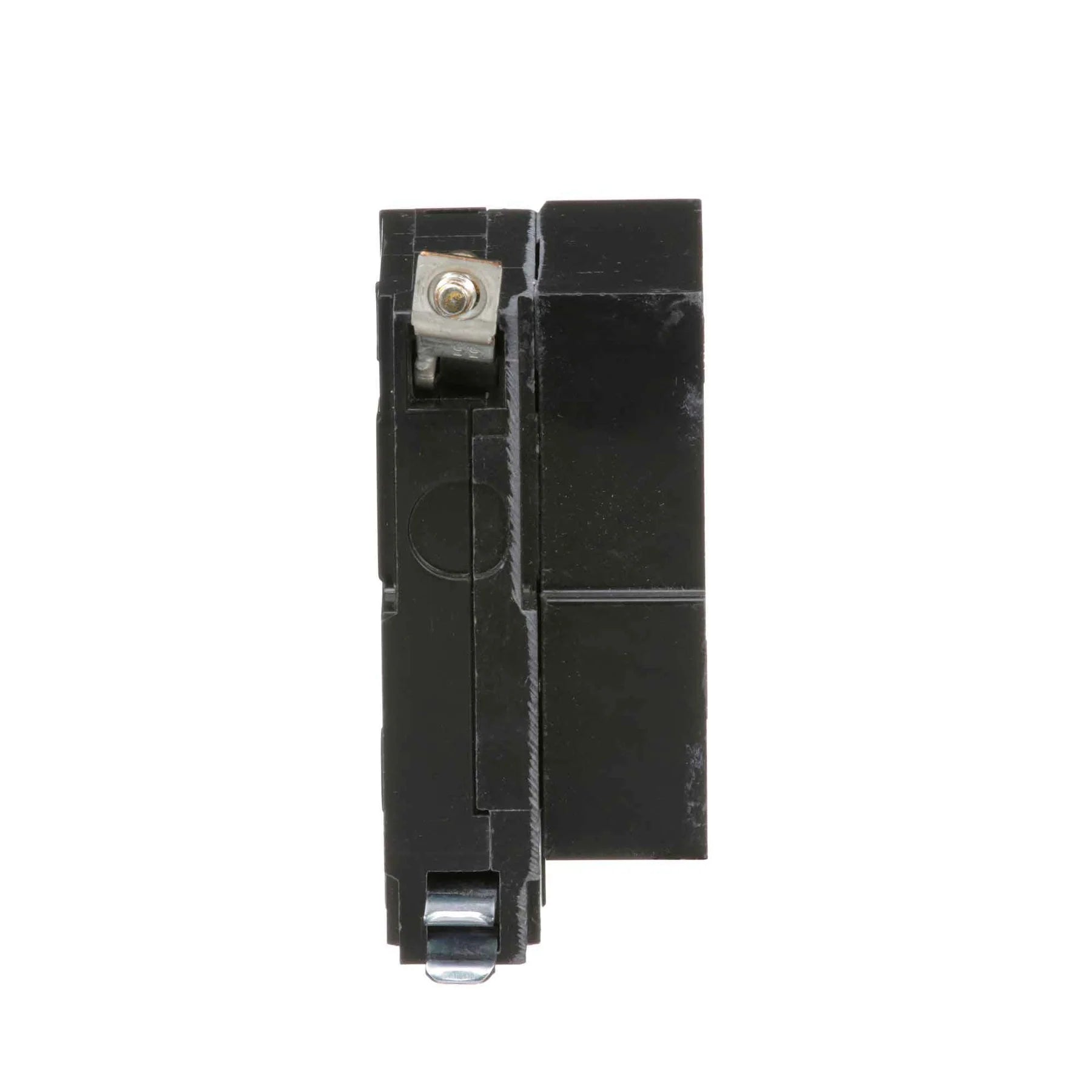

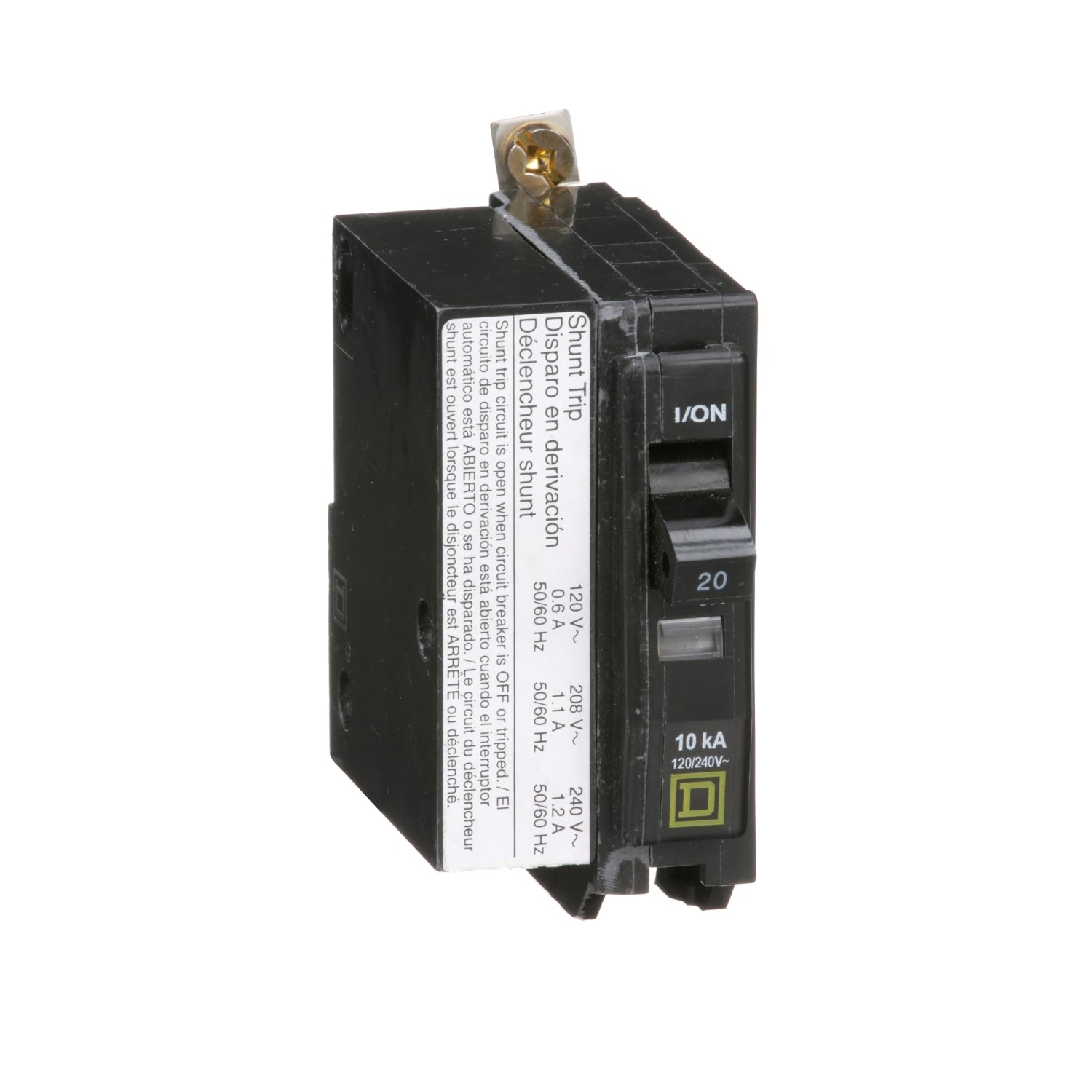

The QOB1201021 is a single-pole mini circuit breaker from Schneider Electric's QO series, designed for providing overcurrent protection and switching on AC and DC systems. Featuring a thermal magnetic mechanism with an over center, trip-free toggle action and positive handle indication, it includes VisiTrip for visual indication of tripping. This 20A breaker operates at 120/240VAC with a 10kA breaking capacity and utilizes bolt-on mounting.
Technical Specifications
|
Part # |
QOB1201021 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Product |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Pressure plate |
|
Options |
Shunt trip 120/208/240 V AC |
|
Interrupt Rating |
10 kA 120/240 V AC |
|
|
10 kA 120 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.4 lbf.in (4 N.m) |
|
Height |
3.0 in (76 mm) |
|
Width |
1.5 in (38 mm) |
|
Depth |
2.9 in (74 mm) |
|
Net Weight |
0.280 lb(US) (0.127 kg) |
Information About QOB1201021
The QOB1201021 is a one-pole mini circuit breaker from the QO series by Schneider Electric, designed to provide overcurrent protection and switching capabilities for both AC and DC systems. These thermal magnetic circuit breakers feature an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication. They are equipped with VisiTrip trip indication, offering a visual signal when the circuit breaker trips and interrupts the circuit. Additionally, a range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches are available for enhanced functionality.
This 1-pole QO circuit breaker is rated for 20A at 120/240VAC operational voltage. It has a breaking capacity of 10kA and utilizes a bolt-on mounting system for secure installation. The QOB1201021 model includes an AC shunt trip option, adding flexibility for specialized applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
