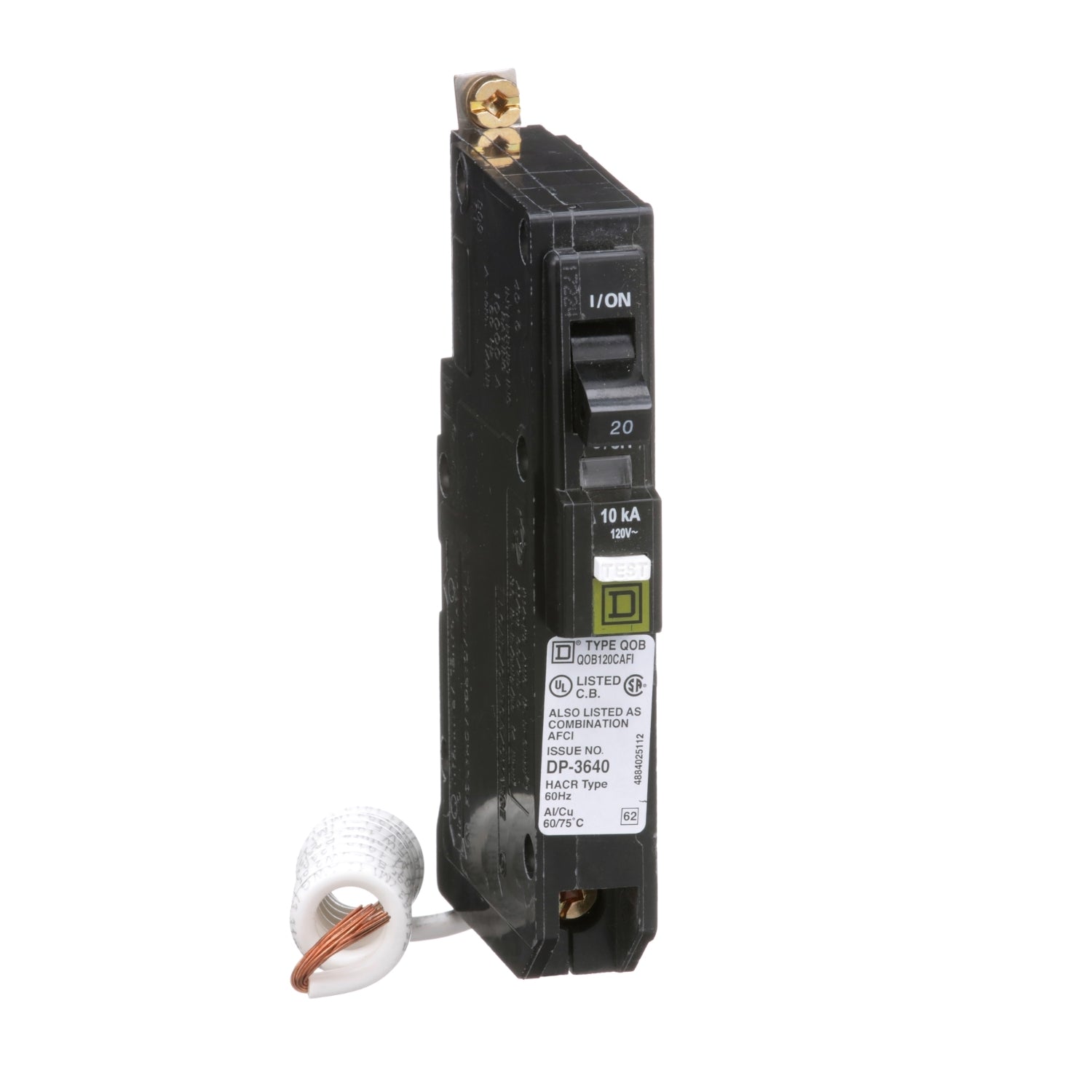

QOB120CAFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $117.00
- Sale price
- $117.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB120CAFI
Description
QOB120CAFI is a QO Mini Circuit Breaker designed for overcurrent protection and switching in AC and DC systems. This circuit breaker has a single pole and is rated at 20A at 120VAC. It provides a breaking capacity of 10kA and utilizes bolt-on mounting. The breaker features a combination arc fault protection with a pigtail. It incorporates an over-center, trip-free toggle mechanism with quick make, quick break action and positive handle indication.
Technical Specifications
|
Part # |
QOB120CAFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Combination ARC-fault |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Connections Terminals |
Pigtail neutral |
|
Interrupt Rating |
10 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper |
|
|
AWG 12...AWG 8 aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.76 in (121 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.66 lb(US) (0.299 kg) |
Information About QOB120CAFI
The QOB120CAFI is a miniature circuit breaker belonging to the QO range, designed for overcurrent protection and switching in both AC and DC systems. It features a thermal magnetic mechanism with an over center, trip-free toggle for quick make and break actions, accompanied by positive handle indication. Additionally, it includes VisiTrip trip indication for visual confirmation of tripping events.
This single-pole QO circuit breaker operates at 20A with a voltage rating of 120VAC. It boasts a robust 10kA breaking capacity and utilizes a bolt-on mounting mechanism. Notably, the QOB120CAFI integrates a combination arc fault feature with a pigtail connection, enhancing its safety capabilities in residential and commercial applications.
QO circuit breakers, including the QOB120CAFI, comply with UL standards under UL File E84967 and hold CSA certification as per CSA Master Contract 153555. They offer a comprehensive array of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, catering to diverse installation requirements and ensuring reliable performance in electrical distribution systems.
