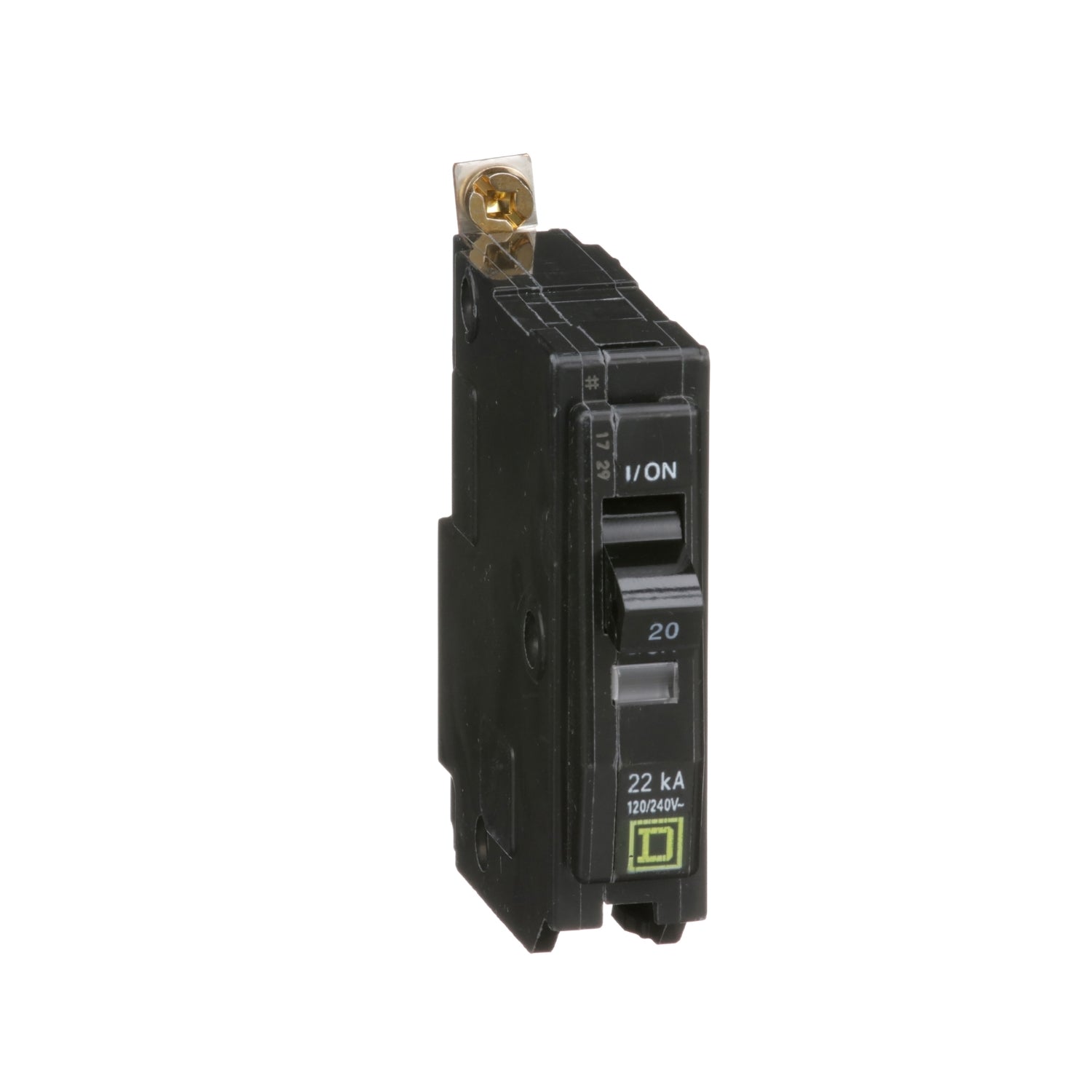

QOB120VH | Schneider Electric QOB Series 1-Pole 20A Thermal Magnetic Circuit Breaker Bolt-On
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QOB120VH
Description
The Schneider Electric QOB120VH is a single-pole molded case circuit breaker designed for dependable protection of single-phase branch circuits. It is rated for 20 amps at 120 volts and provides thermal magnetic protection with long-time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QOB120VH |
| Subcategory | Molded Case Circuit Breaker |
| Family | QOB Series |
| Type | QOB |
| Rated Voltage | 120 VAC |
| Rated Current | 20 A |
| Interrupt Rating | 22 kA at 120 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Number of Poles | 1 |
| Phase | Single-phase |
| Connection Type | Bolt-On |
Information About QOB120VH
The QOB120VH is part of the Schneider Electric QOB Series, engineered for applications requiring higher interrupting capacity than standard branch circuit breakers. It features a compact molded case design intended for use in QOB bolt-on load centers and panelboards. The thermal magnetic trip mechanism ensures consistent overload protection and rapid interruption during short-circuit events. This breaker is commonly installed in residential, commercial, and light industrial systems where secure bolt-on mounting and high fault current capability are required.
Key Features
- Single-pole circuit breaker design: Provides dedicated protection for individual single-phase branch circuits.
- 20 amp continuous current rating: Suitable for general-purpose branch circuits in residential and light commercial installations.
- Thermal magnetic protection system: Combines long-time overload sensing with instantaneous short-circuit interruption.
- Long-time and instantaneous trip functions: Ensures dependable protection against both sustained overcurrent and sudden fault conditions.
- High interrupting capacity: Rated at 22 kA at 120 V for applications with elevated available fault current.
- Bolt-on connection configuration: Provides a secure mechanical and electrical connection to compatible QOB load centers.
- QOB Series compatibility: Designed specifically for use in Schneider Electric QOB panelboards and distribution equipment.
The QOB120VH delivers the reliability and precision required for protecting single-phase branch circuits in electrical systems with higher fault current demands.
