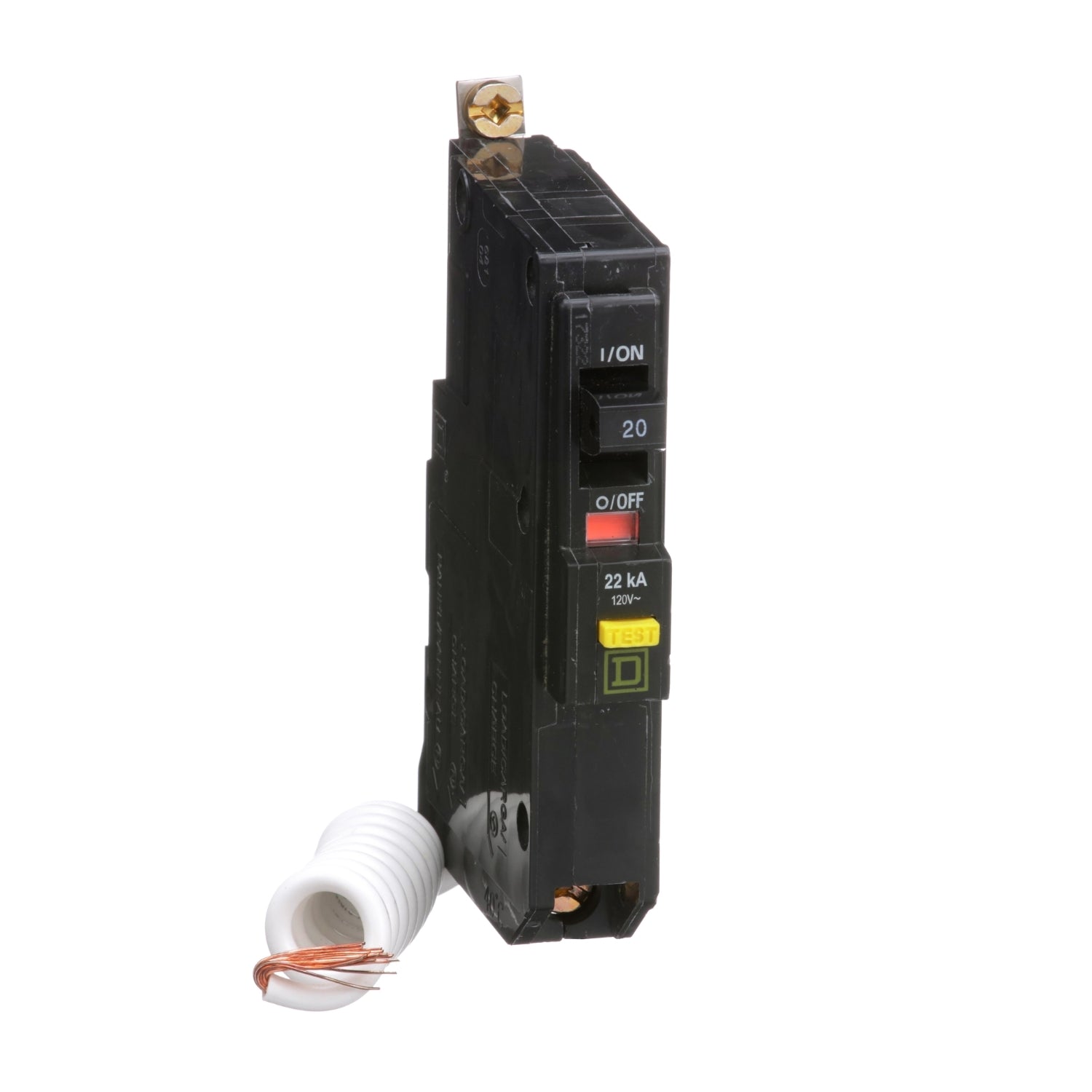

QOB120VHGFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $180.00
- Sale price
- $180.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QOB120VHGFI
Description
The QOB120VHGFI is a Mini Circuit Breaker from the QO series, designed to provide overcurrent protection and switching on AC and DC systems. Featuring a 1-pole configuration, it offers a current rating of 20A at 120VAC. With a breaking capacity of 22kA, this breaker utilizes bolt-on mounting for secure installation.
QO and QOB circuit breakers boast a thermal-magnetic mechanism with an over-center, trip-free toggle for quick make and quick break action, along with positive handle indication. They also feature VisiTrip trip indication, providing a visual signal when the breaker trips and interrupts the circuit. Additionally, a range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches are available to enhance functionality.
Technical Specifications
|
Part # |
QOB120VHGFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Interrupt Rating |
22 kA 120 V AC |
|
Number of Panel Spaces |
1 |
|
Height |
4.13 in (105 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.50 lb(US) (0.227 kg) |
Information About QOB120VHGFI
The QOB120VHGFI Mini Circuit Breaker, part of the QO series, is a 20A, 1 Pole breaker designed for applications requiring overcurrent protection and switching in both AC and DC systems. Featuring a thermal magnetic mechanism, these circuit breakers employ an over-center, trip-free toggle mechanism with quick make, quick break action, ensuring efficient operation. Additionally, they boast a positive handle indication for enhanced user convenience.
Equipped with VisiTrip trip indication, these breakers offer a visual alert when tripped, signaling the interruption of the circuit. Moreover, a comprehensive range of features and factory-installed accessories are available, including shunt trips, auxiliary switches, and alarm switches, catering to diverse application requirements.
This specific 1 Pole QO circuit breaker is rated at 20A and operates at 120VAC. It offers a substantial breaking capacity of 22kA and features bolt-on mounting for secure installation. Notably, the product includes a 6mA ground fault A with pigtail, enhancing safety measures.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
