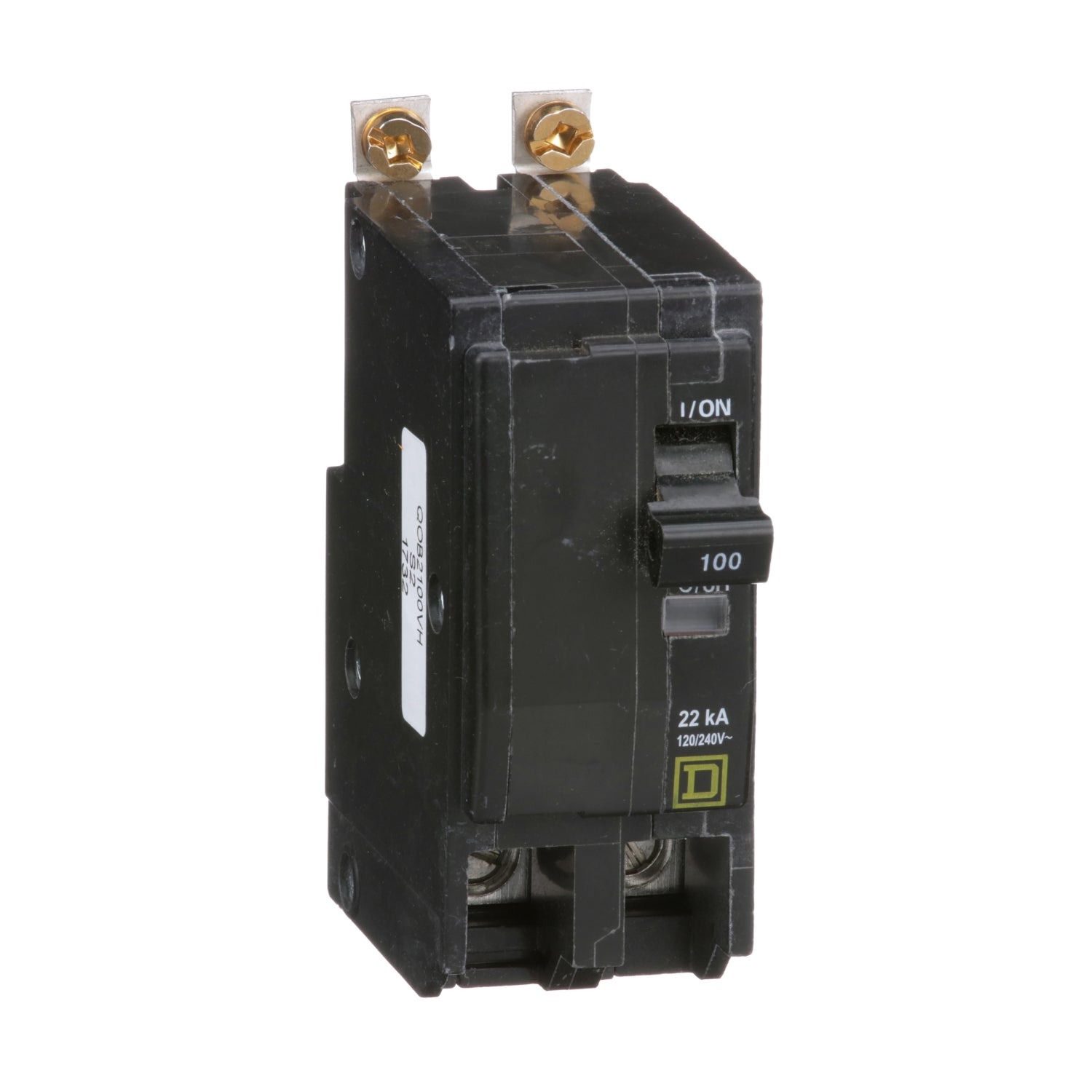

QOB2100VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $149.00
- Sale price
- $149.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB2100VH
Description
Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 100 Amps and interrupting rating of 22 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 4 - 300 AWG.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QOB2100VH |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 100 A |
| Connection type | Box Lug |
| Dimensions | 2.91 in L x 1.5 in W x 3.5 in H |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 22 kA |
| Mounting type | Bolt-On |
| Number of Poles | 2 |
| Phase | 1 |
| Temperature Rating (Degrees F) | 104, 40 deg C |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| Voltage Rating | 120/240 VAC |
| Wire Size | 4 to 2/0 AWG |
Information About QOB2100VH
The QOB2100VH from Schneider Electric is a robust Mini Circuit Breaker designed for reliable circuit protection in residential and commercial applications. With a high amperage rating of 100 A and a voltage rating of 120/240 VAC, it supports single-phase electrical systems.
Featuring a box lug connection type, the QOB2100VH ensures secure and dependable electrical connections suitable for wire sizes ranging from 4 AWG to 2/0 AWG. Its compact dimensions of 2.91 inches in length, 1.5 inches in width, and 3.5 inches in height facilitate easy installation in electrical panels.
The breaker utilizes a thermal magnetic trip mechanism, providing effective protection against overloads and short circuits. It operates at a frequency rating of 50/60 Hz and has an interrupt rating of 22 kA, ensuring reliable performance in interrupting fault currents and maintaining electrical system safety.
Designed with a temperature rating of 40 degrees Celsius (104 degrees Fahrenheit), the QOB2100VH is suitable for standard environmental conditions found in residential and commercial settings. It meets stringent safety standards, ensuring dependable circuit protection essential for protecting electrical systems and equipment.
The QOB2100VH Mini Circuit Breaker is part of Schneider Electric's comprehensive range known for durability, efficiency, and compliance with safety standards. It is an ideal choice for applications requiring high-amperage circuit protection in both residential and commercial environments, providing peace of mind and reliability.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
