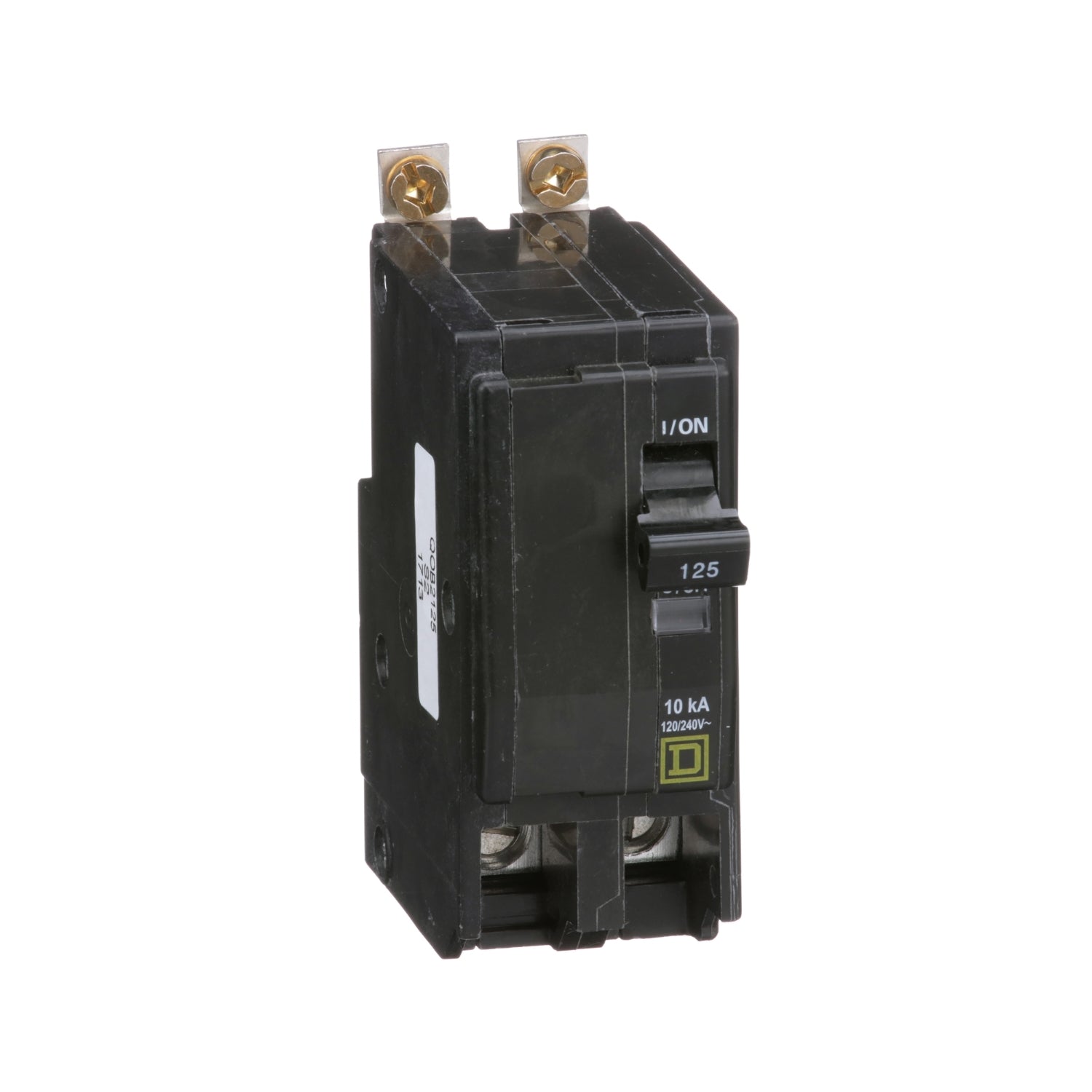

QOB2125 | Schneider Electric Mini Circuit Breaker
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QOB2125
Description
The QOB2125 is a mini circuit breaker from the QO series, providing overcurrent protection and switching for AC and DC systems. This 2 pole circuit breaker has a rated current of 125A at 120/240VAC and offers a breaking capacity of 10kA. It features a bolt-on mounting system. The QO and QOB series circuit breakers incorporate a thermal magnetic trip mechanism with an over-center, trip-free toggle that ensures quick make, quick break action. The positive handle indication and VisiTrip trip indication provide a clear visual status of the circuit breaker, showing when it has tripped and interrupted the circuit. A variety of factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, are available to enhance functionality.
Technical Specifications
|
Part # |
QOB2125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
125 A |
|
Voltage Rating |
120/240 V AC, 120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Interrupt Rating |
10 kA 120/240 V AC, 10 kA 120 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 4...AWG 2/0 copper or aluminum |
|
Tightening Torque |
49.56 lbf.in (5.6 N.m) |
|
Height |
3.50 in (89 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.74 lb(US) (0.336 kg) |
Information About QOB2125
The QOB2125 is a mini circuit breaker from the QO range, designed for both AC and DC systems. This circuit breaker offers thermal magnetic overcurrent protection and switching capabilities. It features a two-pole configuration and is rated at 125A with an operational voltage of 120/240VAC. The unit is engineered to deliver a 10kA interrupting capacity, ensuring reliable performance in various applications.
The circuit breaker incorporates an over center, trip-free toggle mechanism that provides quick make, quick break action. This mechanism enhances operational reliability and ensures the circuit breaker can trip even if the toggle is held in the on position. Additionally, the QOB2125 is equipped with a positive handle indication, allowing for clear identification of the breaker's status. This feature contributes to safer operation and easier troubleshooting.
One of the notable features of the QOB2125 is the VisiTrip trip indication. This visual indicator signals when the circuit breaker has tripped, providing immediate feedback that the circuit has been interrupted. This functionality aids in quickly identifying and addressing issues within the electrical system, thereby reducing downtime and maintenance efforts.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
