QOB2150VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB2150VH
Description

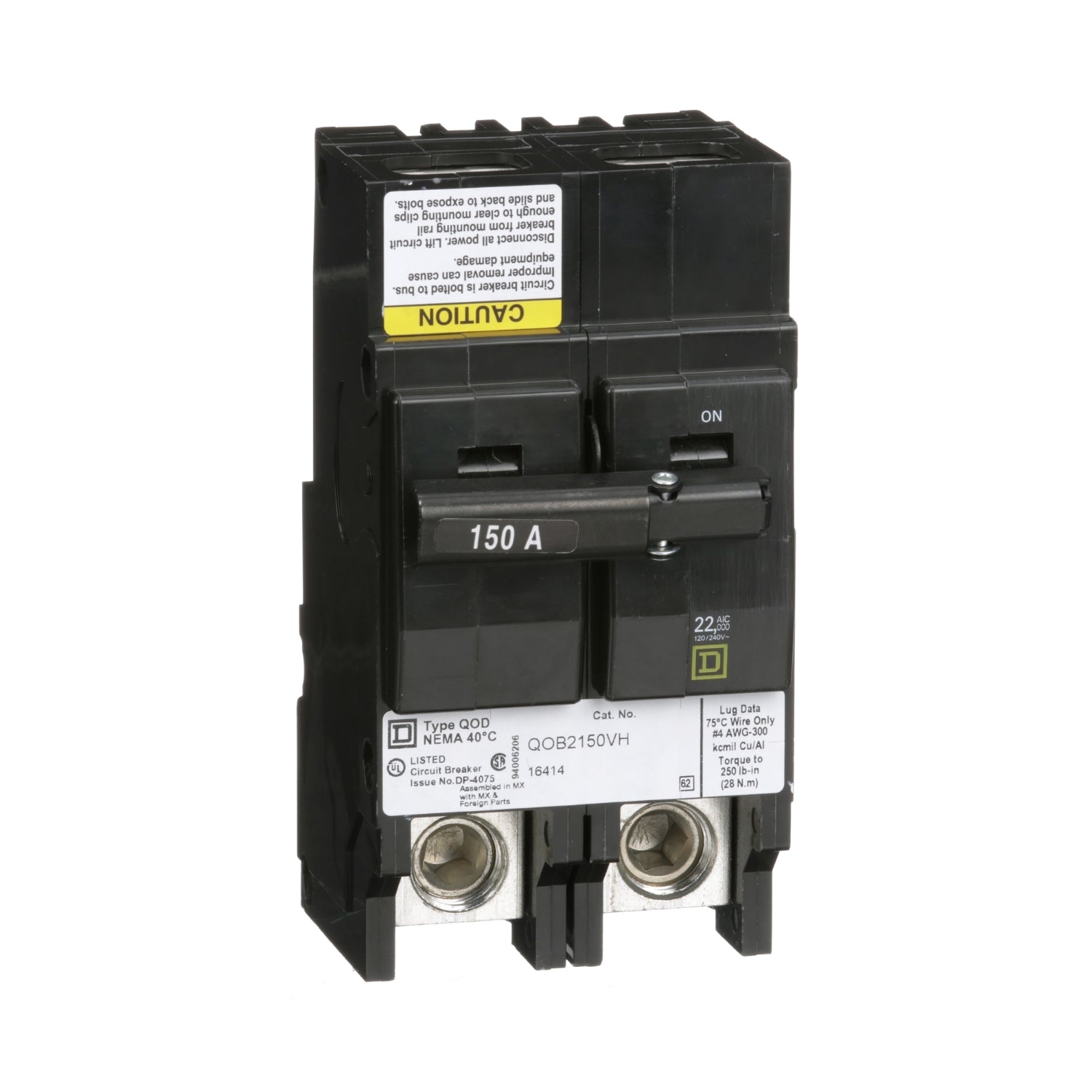

The QOB2150VH is a two-pole Mini Circuit Breaker (MCB) from the QO series manufactured by Square D. It is designed to provide overcurrent protection and switching capabilities for both AC and DC electrical systems. Featuring a thermal magnetic mechanism, these circuit breakers employ an over-center, trip-free toggle operation with quick make, quick break action and positive handle indication. Additionally, they include VisiTrip trip indication, offering a visual signal when the breaker trips and interrupts the circuit.
Technical Specifications
|
Part # |
QOB2150VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Miniature Circuit Breaker |
|
Range |
QO |
|
Current Rating |
150 A |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Number of Panel Spaces |
4 |
|
Wire Size |
AWG 4...300 kcmil copper or aluminum |
|
Tightening Torque |
250.48 lbf.in (28.3 N.m) |
|
Height |
5.71 in (145 mm) |
|
Width |
2.99 in (76 mm) |
|
Depth |
4.88 in (124 mm) |
|
Net Weight |
1.21 lb (0.549 kg) |
Information About QOB2150VH
The QOB2150VH is a Mini Circuit Breaker (MCB) within the QO series manufactured by Square D, designed to provide overcurrent protection and switching capabilities for both AC and DC electrical systems. These thermal magnetic circuit breakers are available in one, two, and three-pole configurations. They feature an over-center, trip-free toggle mechanism with quick make, quick break action, ensuring efficient operation. Additionally, positive handle indication aids in clear status identification.
Equipped with VisiTrip trip indication, the QOB2150VH offers a visual signal upon circuit interruption, enhancing troubleshooting and maintenance efficiency. Square D provides a comprehensive range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, catering to diverse operational needs.
Specifically, the QOB2150VH is a two-pole circuit breaker rated at 150A and operates at 120/240VAC. It boasts a robust 22,000 ampere interrupting capacity (22kA), effectively safeguarding against short circuits and overloads in electrical systems. Designed for bolt-on mounting, it ensures secure installation and reliability in various applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
