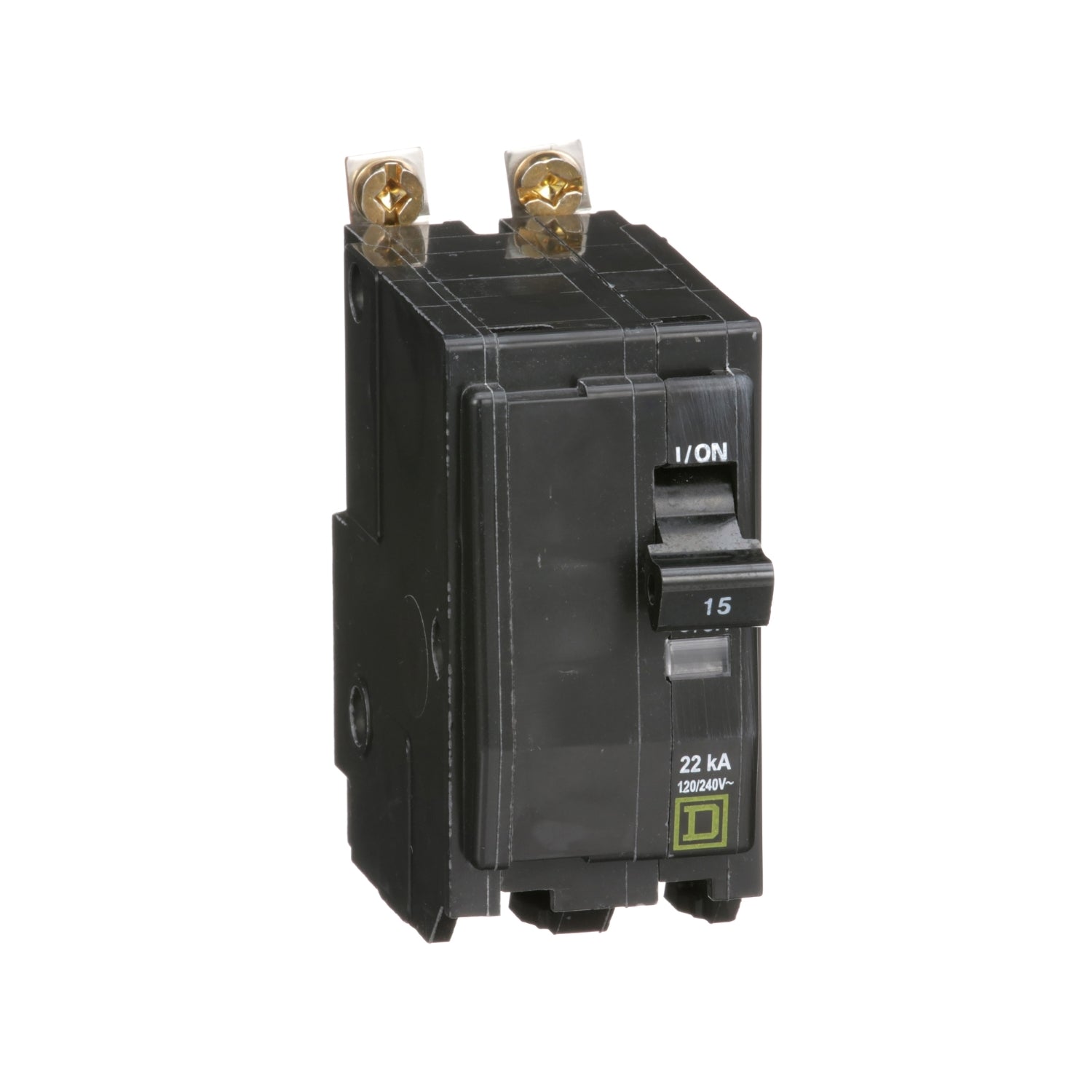

QOB215VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $105.00
- Sale price
- $105.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB215VH
Description
The QOB215VH is a 2-pole, 15-amp miniature circuit breaker (MCB) manufactured by Square D. It belongs to the QO series and is designed for use in AC and DC electrical systems with a voltage rating of 120/240 VAC.
Technical Specifications
|
Attribute |
Description |
|
Part # |
QOB215VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature Circuit Breaker |
|
Range |
QO |
|
Current Rating |
15 A |
|
Voltage Rating |
120/240 VAC, 240 VAC, 120 VAC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminum |
|
Tightening Torque |
49.56 lbf.in (5.6 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.56 lb(US) (0.254 kg) |
Information About QOB215VH
The QOB215VH is a 2-pole, 15-amp miniature circuit breaker (MCB) belonging to Square D's QO series. It is designed to provide overcurrent protection and switching functionality in both AC and DC electrical systems with a voltage rating of 120/240 VAC. This MCB caters specifically to Heating, Air Conditioning, and Refrigeration (HACR) applications.
Functional Overview:
Overcurrent Protection: The QOB215VH safeguards circuits against overcurrent conditions. It achieves this through a combined thermal and magnetic trip unit. The thermal element offers protection from sustained overcurrents based on heating effects, while the magnetic element rapidly responds to short-circuit currents.
Switching Capability: Beyond overcurrent protection, the QOB215VH can be employed for circuit switching applications.
Dual Voltage Rating: This MCB is suitable for operation on both 120 VAC and 240 VAC systems, offering application flexibility.
High Interrupting Capacity: The unit boasts a 22kA interrupting capacity, signifying the maximum fault current it can interrupt without failure.
Trip-Free Mechanism: A crucial safety feature, the trip-free mechanism ensures the breaker trips even if the handle is held in the "on" position during a fault event.
Quick-Make/Quick-Break Action: This mechanism facilitates fast circuit connection and disconnection, enhancing safety and reliability.
VisiTrip™ Indication: A visual indicator clearly shows when the breaker has tripped, aiding in efficient fault identification.
Bolt-On Mounting: The QOB215VH is designed for secure mounting onto a panel or busbar using bolts.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
