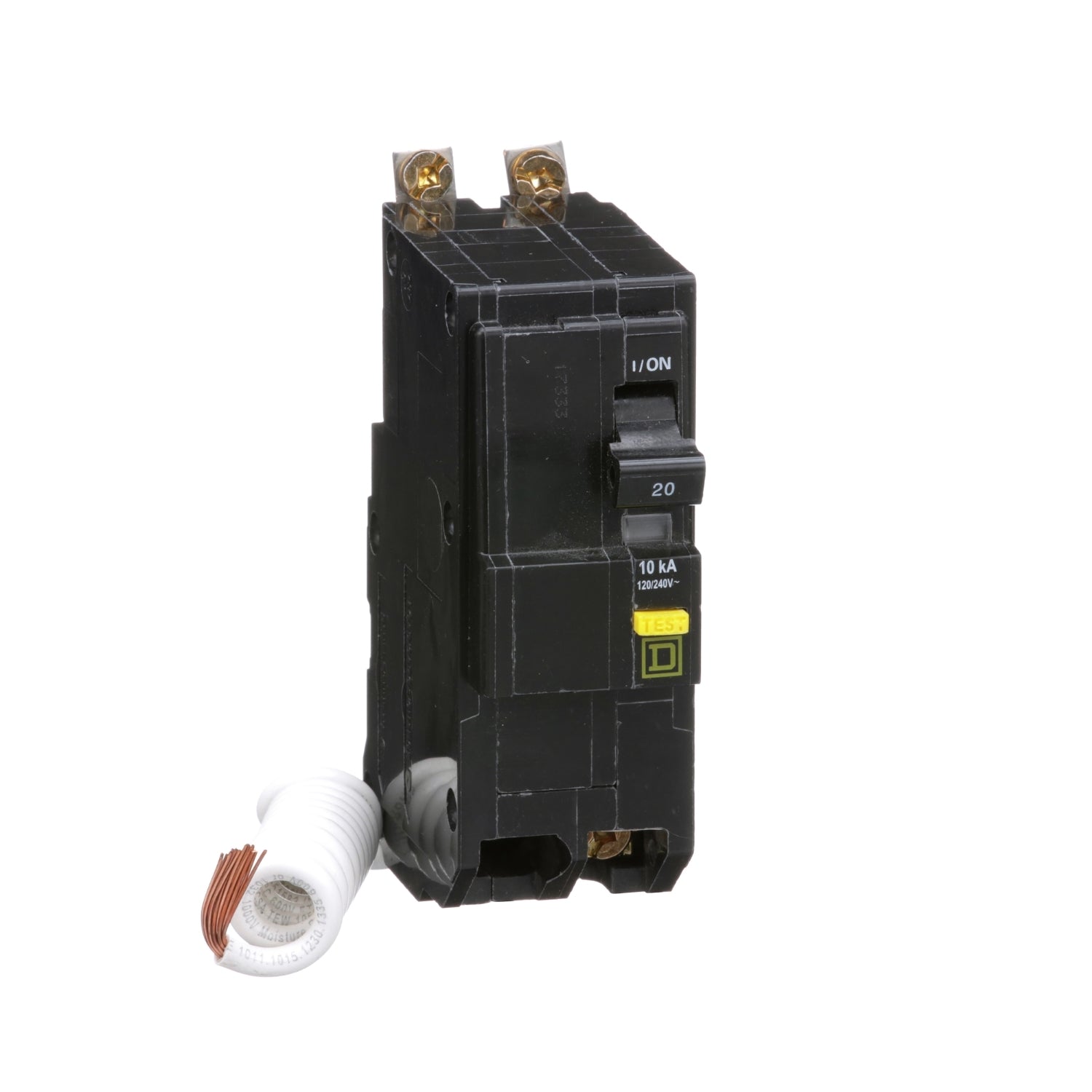

QOB220GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $267.00
- Sale price
- $267.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QOB220GFI
Description
The QOB220GFI is a mini circuit breaker belonging to the QO series, designed for overcurrent protection and switching operations in both AC and DC systems. Featuring a two-pole configuration, it offers a reliable solution for various electrical applications.
Equipped with a thermal magnetic mechanism, this circuit breaker incorporates an over-center, trip-free toggle mechanism with quick make and quick break action, ensuring efficient operation. It also includes VisiTrip trip indication, providing a visual signal when the circuit breaker has tripped, enhancing user awareness.
Technical Specifications
|
Part # |
QOB220GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
Not rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA 120/240 V AC |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 14...AWG 8 copper |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.13 in (105 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.96 lb(US) (0.435 kg) |
Information About QOB220GFI
The QOB220GFI is a mini circuit breaker within the QO series, designed for providing overcurrent protection and switching on both AC and DC systems. This 2-pole thermal magnetic circuit breaker features an over-center, trip-free toggle mechanism, ensuring quick make and quick break action, alongside positive handle indication. Additionally, it includes a VisiTrip trip indication feature, offering a visual signal when the circuit breaker trips and interrupts the circuit.
These circuit breakers are equipped with various features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, enhancing their functionality and adaptability.
The QOB220GFI is rated at 20A and operates at 120/240VAC, offering a breaking capacity of 10kA. Its bolt-on mounting configuration ensures secure installation. Moreover, this product includes a 6mA ground fault A with a pigtail, further enhancing its safety features.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
