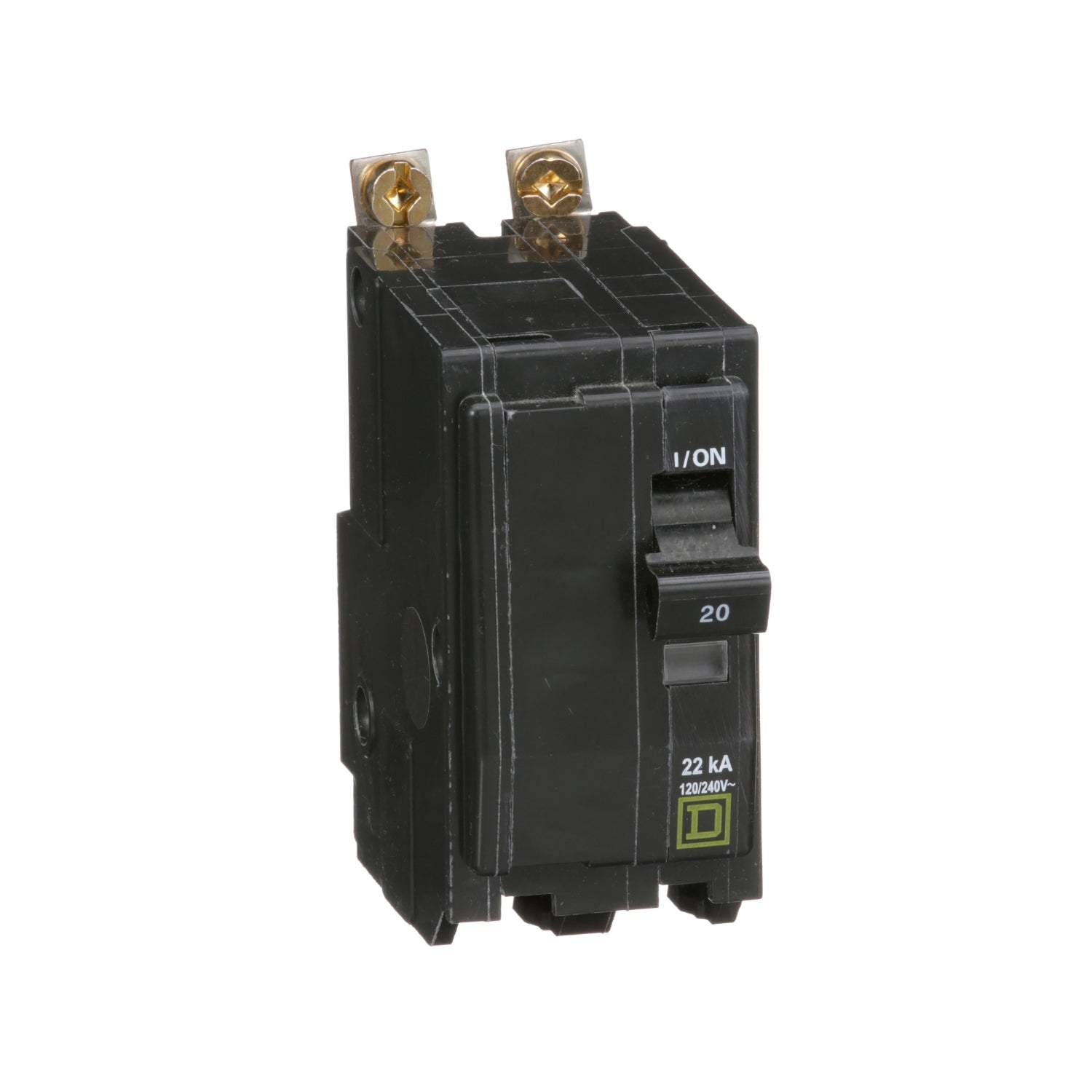

QOB220VH | Schneider Electric QOB Series 2-Pole 20A Thermal Magnetic Circuit Breaker Bolt-On
- Regular price
- $85.00
- Sale price
- $85.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QOB220VH
Description
The Schneider Electric QOB220VH is a two-pole molded case circuit breaker designed for single-phase electrical systems operating at 240 volts. It provides thermal magnetic protection with long-time and instantaneous trip functions for dependable branch circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QOB220VH |
| Subcategory | Molded Case Circuit Breaker |
| Family | QOB Series |
| Type | QOB |
| Rated Voltage | 240 V |
| Rated Current | 20 A |
| Number of Poles | 2 |
| Phase | Single-phase |
| Interrupt Rating | 22 kA at 240 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | Bolt-On |
Information About QOB220VH
The QOB220VH is part of Schneider Electric’s QOB Series circuit breakers, engineered for applications requiring higher interrupting capacity in compact panelboard designs. It features a molded case construction with a fixed thermal magnetic trip unit to deliver consistent protection against overloads and short circuits. The two-pole configuration supports single-phase 240 V circuits, protecting both ungrounded conductors simultaneously. This breaker is commonly installed in QOB load centers and panelboards where secure bolt-on mounting and enhanced fault current protection are required.
Key Features
- Two-pole molded case design: Provides coordinated disconnection and protection for both legs of single-phase 240 V circuits.
- 20 amp continuous current rating: Suitable for residential, commercial, and light industrial branch circuit applications.
- Thermal magnetic protection system: Combines inverse-time overload protection with instantaneous short-circuit response.
- LI trip functionality: Ensures reliable protection against sustained overcurrent conditions and sudden fault events.
- High interrupting capacity: Rated at 22 kA at 240 V for applications with elevated available fault current.
- Bolt-on mounting configuration: Delivers a secure mechanical and electrical connection to QOB panelboard bus assemblies.
- QOB Series compatibility: Designed specifically for use in Schneider Electric QOB load centers and panelboards.
The QOB220VH delivers the reliability and precision required for protecting single-phase branch circuits in commercial and residential QOB Series load center applications.
