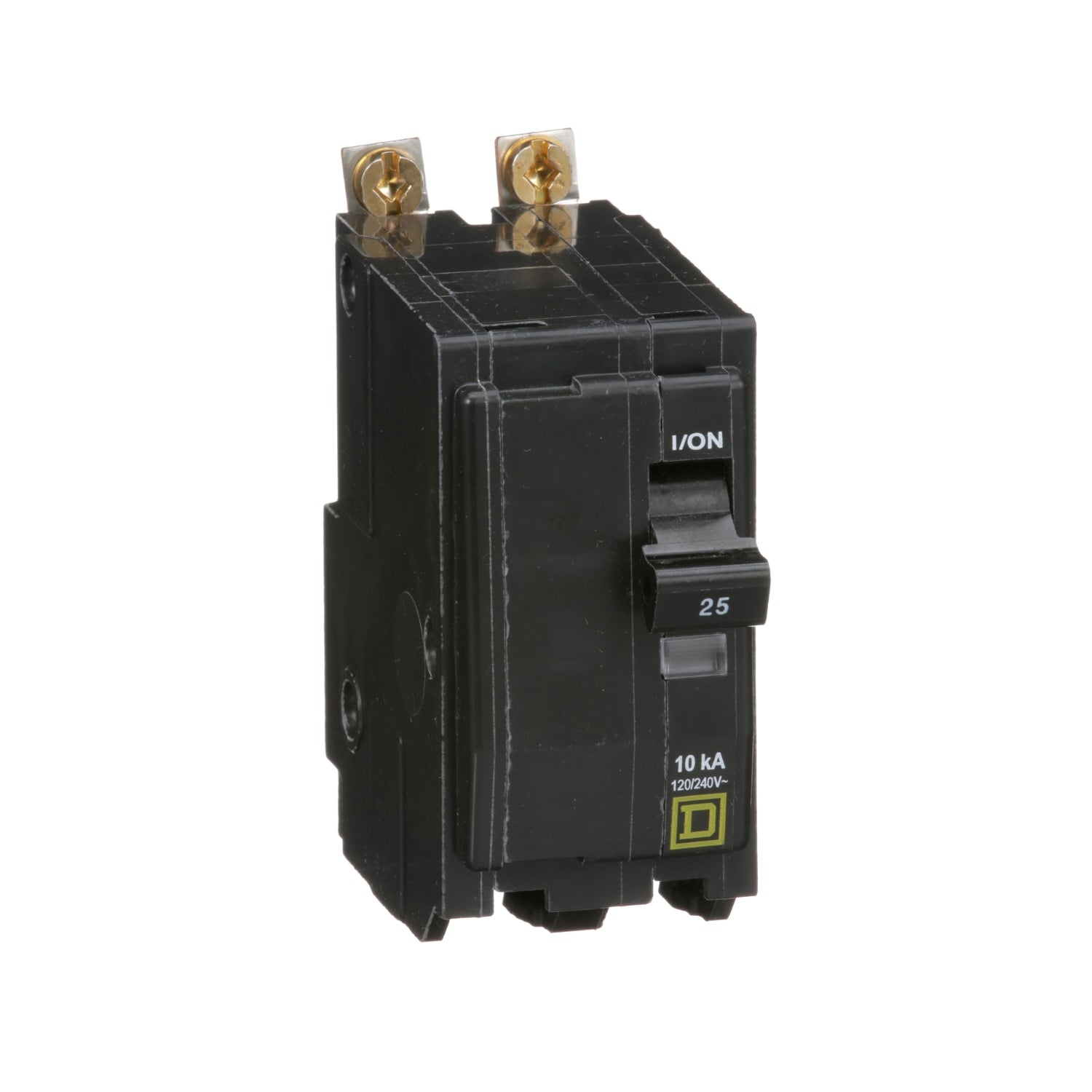

QOB225 | Schneider Electric Mini Circuit Breaker
- Regular price
- $139.00
- Sale price
- $139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB225
Description
The QOB225 is a Mini Circuit Breaker from the QO series, designed to provide overcurrent protection and switching for both AC and DC systems. Equipped with a thermal magnetic mechanism, these circuit breakers feature an over-center, trip-free toggle mechanism with quick make, quick break action and positive handle indication. Additionally, they boast VisiTrip trip indication, offering a visual signal when the circuit breaker trips.
Technical Specifications
|
Part # |
QOB225 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
25 A |
|
Voltage Rating |
120/240 V AC |
|
|
120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.57 lb(US) (0.259 kg) |
Information About QOB225
The QOB225 is a Mini Circuit Breaker belonging to the QO series, designed to deliver robust overcurrent protection and switching capabilities for both AC and DC systems. Equipped with a thermal magnetic mechanism, it ensures reliable performance under various conditions. Featuring an over center, trip-free toggle mechanism with quick make and break action, it offers precise control and positive handle indication for ease of operation. Additionally, the VisiTrip trip indication provides visual feedback in case of tripping, ensuring prompt troubleshooting.
This circuit breaker is part of a comprehensive lineup of QO and QOB series breakers, available in one, two, and three-pole configurations, catering to diverse application needs. Various factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches enhance its functionality further.
The QOB225 is specifically a 2-pole QO circuit breaker rated at 25A, suitable for operating at 120/240VAC. With a robust 10kA breaking capacity, it ensures effective protection against short circuits and overloads. Its bolt-on mounting design facilitates secure installation, ensuring stability and reliability in electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
