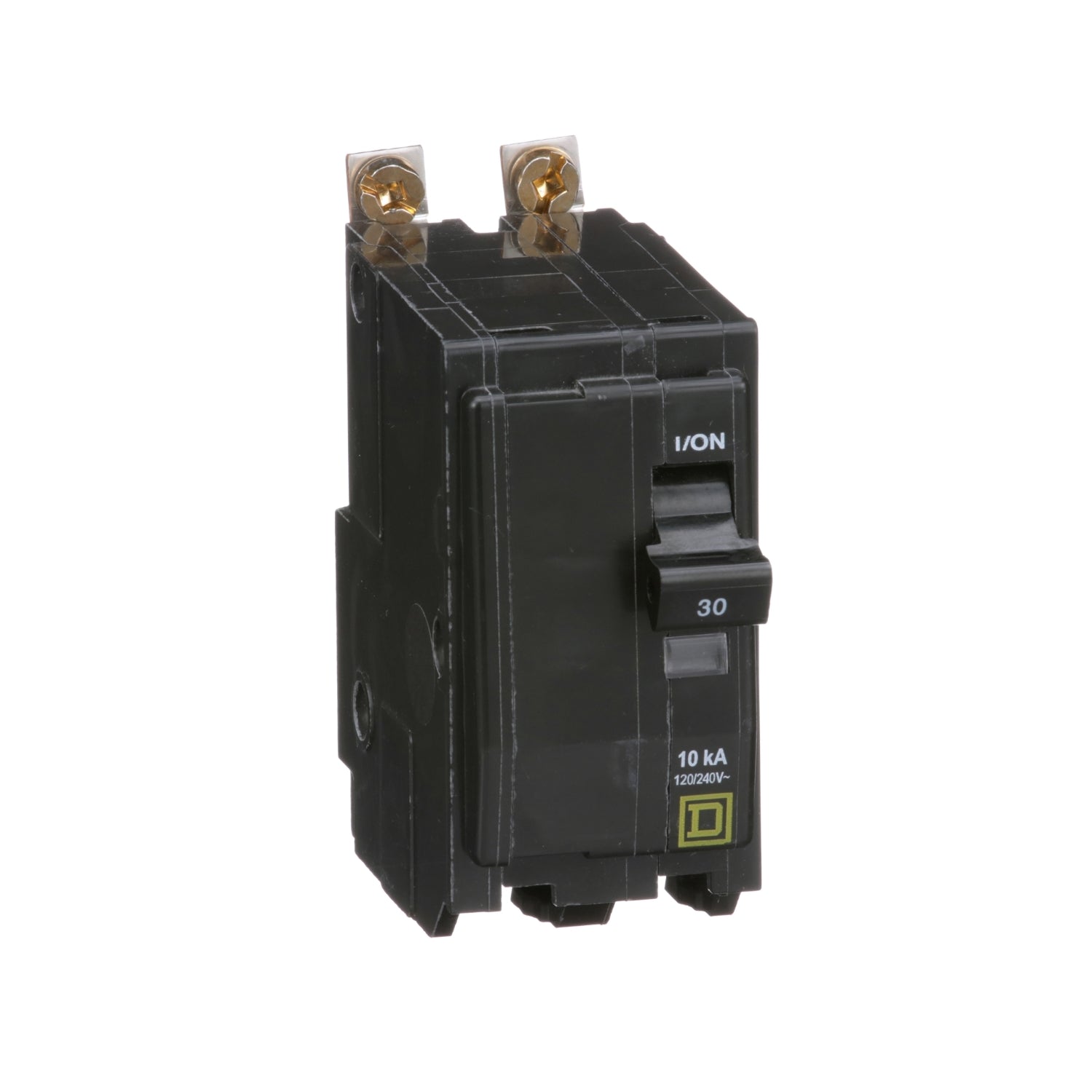

QOB230 | Schneider Electric Mini Circuit Breaker
- Regular price
- $39.00
- Sale price
- $39.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB230
Description
The QOB230 by Schneider Electric is a 30A mini circuit breaker with thermal magnetic trip, bolt-on mounting, and 10kA interrupt rating for reliable circuit protection in residential and commercial applications.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QOB230 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 30 A |
| Connection type | Pressure Plate |
| Dimensions | 3 in H x 1.5 in W x 2.91 in D |
| Frame | QOB |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Mounting type | Bolted-On |
| Number of Poles | 2 |
| Phase | 1 |
| Temperature Rating (Degrees F) | 104, 40, 40 deg C |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| Voltage Rating | 120/240, 240 VAC, 48 VDC |
| Wire Size | 14 to 10 AWG, 14 to 8 AWG, 14 to 8 |
Information About QOB230
The QOB230 from Schneider Electric is a Mini Circuit Breaker designed to provide robust and reliable circuit protection. With an amperage rating of 30 amps, this breaker utilizes a pressure plate connection type, ensuring secure and stable wire connections. Its compact dimensions of 3 inches in height, 1.5 inches in width, and 2.91 inches in depth make it ideal for applications where space is limited.
Built on the QOB frame, the QOB230 operates at a frequency rating of 50/60 Hz and features an interrupt rating of 10 kA, effectively managing short circuits and overload conditions. The bolted-on mounting type ensures easy and secure installation. The breaker is designed for single-phase systems with two poles, making it suitable for both residential and commercial applications.
The thermal magnetic trip type provides reliable protection by responding to both prolonged overloads and short circuit conditions. It supports a voltage rating of 120/240 VAC, 240 VAC, and 48 VDC, offering versatility in various electrical setups. The breaker accommodates wire sizes ranging from 14 to 10 AWG and 14 to 8 AWG, enhancing its adaptability for different wiring requirements.
Rated for temperatures up to 104°F (40°C), the QOB230 maintains optimal performance even in challenging environments. This standard type circuit breaker exemplifies Schneider Electric's commitment to quality and safety, delivering dependable protection and performance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
