QOB230VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $185.00
- Sale price
- $185.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB230VH
Description

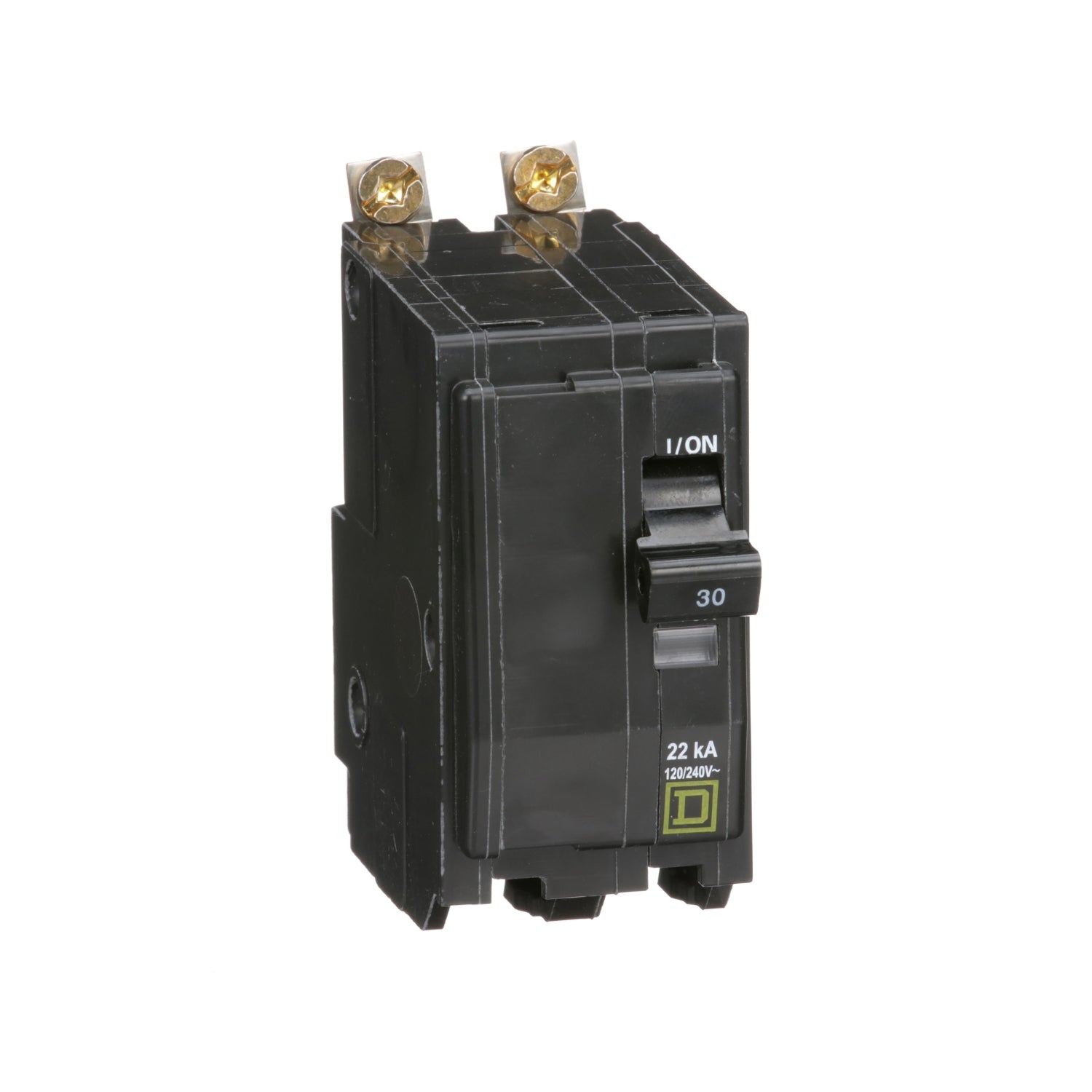

The QOB230VH is a two-pole miniature circuit breaker part of the QO series by Schneider Electric. These thermal magnetic circuit breakers offer reliable overcurrent protection and switching capabilities for both AC and DC systems. Featuring an over-center, trip-free toggle mechanism, they ensure quick make and break actions with positive handle indication. The breakers also include VisiTrip trip indication for clear visual alerts when tripped, indicating interruption in the circuit.
Technical Specifications
|
Part # |
QOB230VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
30 A |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
40.71 lbf.in (4.6 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.58 lb(US) (0.263 kg) |
Information About QOB230VH
The QOB230VH is a two-pole miniature circuit breaker from the QO series by Schneider Electric, designed to provide robust overcurrent protection and switching capabilities for both AC and DC electrical systems. These thermal magnetic circuit breakers feature an over center, trip-free toggle mechanism that ensures quick make and break actions, coupled with positive handle indication for operational clarity. Additionally, they incorporate VisiTrip trip indication, offering a visual alert when the breaker trips to interrupt the circuit.
Rated at 30A and suitable for 120/240VAC applications, the QOB230VH circuit breaker boasts a substantial 22kA breaking capacity, making it capable of handling high fault currents effectively. It is designed for bolt-on mounting, ensuring secure installation in various electrical configurations.
Schneider Electric’s QO series circuit breakers are rigorously tested and comply with UL standards, listed under UL File E84967, ensuring they meet stringent safety and performance requirements for electrical equipment in the United States. Moreover, they are CSA Certified under CSA Master Contract 153555, further attesting to their reliability and compliance with Canadian electrical standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
