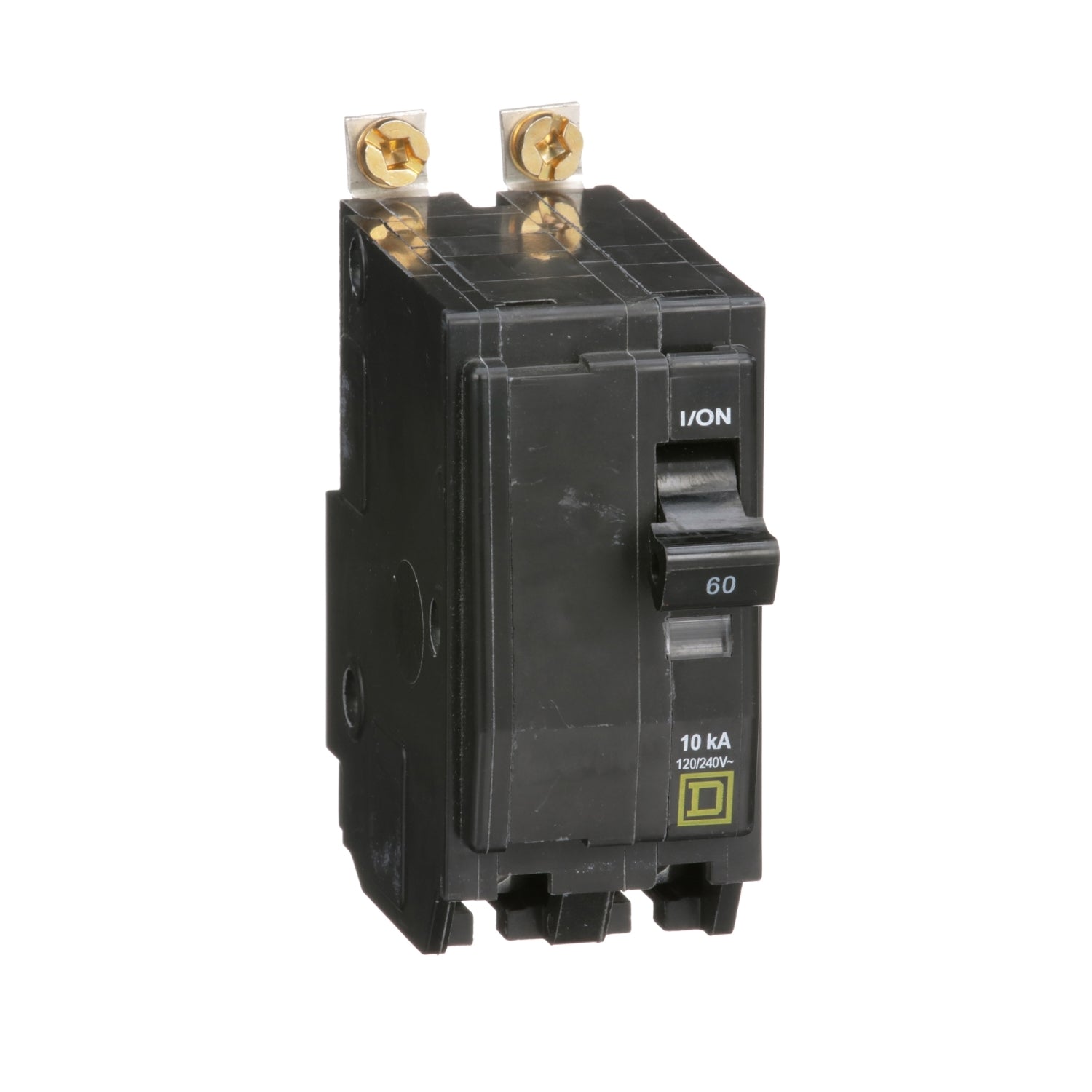

QOB260 | Schneider Electric Mini Circuit Breaker
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QOB260
DescriptionThe QOB260 is a Mini Circuit Breaker of the QO series, offering 60A capacity and featuring a 2-pole configuration. Designed for both AC and DC systems, these thermal magnetic circuit breakers provide overcurrent protection and switching capabilities. Equipped with an over center, trip-free toggle mechanism, they ensure quick make and quick break action, with positive handle indication.
Additionally, the QOB260 includes VisiTrip trip indication, offering a visual cue when the circuit breaker trips and interrupts the circuit. This unit provides a breaking capacity of 10kA and utilizes bolt-on mounting.
Technical Specifications
|
Part # |
QOB260 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Product |
|
Range |
QO |
|
Current Rating |
60 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Number of Panel Spaces |
2 |
|
Wire Size |
AWG 8...AWG 2 copper or aluminium |
|
Tightening Torque |
44.25 lbf.in (5 N.m) |
|
Height |
3.11 in (79 mm) |
|
Width |
1.50 in (38 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.60 lb(US) (0.272 kg) |
|
Certifications |
UL Listed |
|
Ambient Rating |
104 °F (40 °C) |
Information About QOB260
The QOB260 is a Mini Circuit Breaker belonging to the QO series, designed to deliver overcurrent protection and switching functionality in both AC and DC systems. Available in one, two, and three pole configurations, these thermal magnetic circuit breakers feature an over center, trip-free toggle mechanism ensuring quick make, quick break action, and positive handle indication.
Incorporating VisiTrip trip indication, they offer a visual cue indicating circuit interruption upon tripping. Moreover, a comprehensive array of features and factory-installed accessories are accessible, including shunt trips, auxiliary switches, and alarm switches.
This 2-pole QO circuit breaker boasts a rating of 60A at 120/240VAC, providing a breaking capacity of 10kA and employs bolt-on mounting for ease of installation. QO circuit breakers hold UL Listing under UL File E84967 and CSA Certification under CSA Master Contract 153555, ensuring compliance with rigorous safety standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
