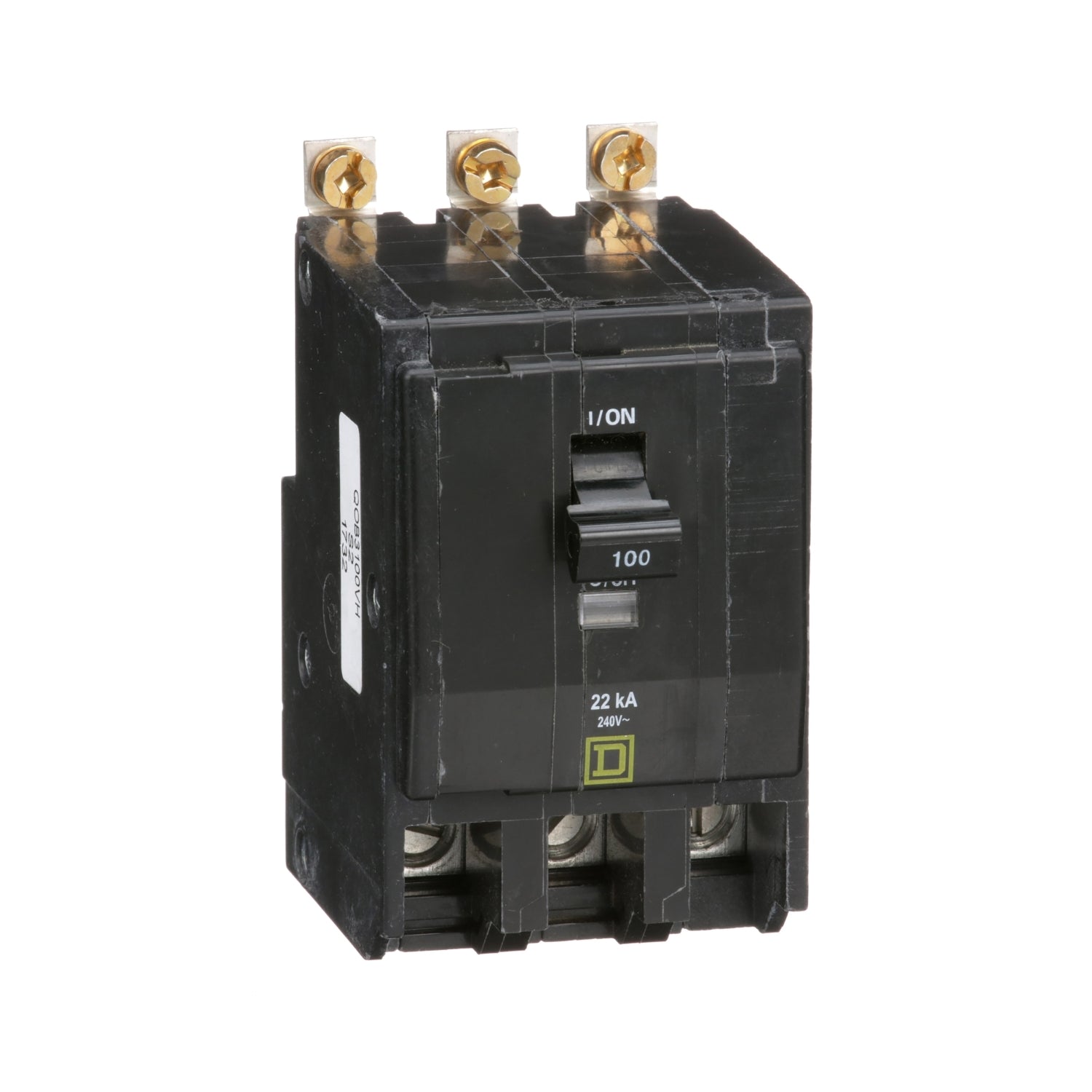

QOB3100VH | Schneider Electric 100A 3-pole 240V molded case breaker with 22 kA interrupt rating
- Regular price
- $154.00
- Sale price
- $154.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB3100VH
Description
The Schneider Electric QOB3100VH is a heavy-duty molded case circuit breaker designed for demanding three-phase, 240 VAC applications. With a 100-amp rating and thermal-magnetic trip protection, it delivers reliable overload and short-circuit safeguarding for industrial electrical systems. Its bolt-on mounting and box-lug connections ensure secure installation and compatibility with a wide range of conductor sizes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QOB3100VH |
| Subcategory | Molded Case Circuit Breaker |
| Type | Standard |
| Amperage Rating | 100 A |
| Voltage Rating | 240 VAC |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Number of Poles | 3 |
| Phase | 3 |
| Connection Type | Box Lug |
| Wire Size Compatibility | 4 to 2/0 AWG |
| Mounting Type | Bolt-On |
| Temperature Rating | 40°C (104°F) |
| Dimensions | 2.91 in L × 2.25 in W × 3.5 in H |
| Construction | Molded Case |
| Application | Industrial/commercial power distribution |
Information About QOB3100VH
The QOB3100VH is part of Schneider Electric’s trusted QOB series, engineered for high-performance industrial power distribution. Built with a durable molded case and featuring thermal-magnetic trip technology, the breaker provides both long-time overload protection and instantaneous short-circuit interruption. Its three-pole, three-phase configuration supports 240 VAC systems commonly found in commercial and industrial environments. Designed for bolt-on panel mounting, the breaker integrates securely into distribution equipment, while the box-lug terminals accept wire sizes from 4 AWG to 2/0 AWG for versatile installation. With a high interrupting capacity of 22 kA, it is capable of clearing significant fault currents, ensuring system safety and reliability.
Key Features:
- 100A molded case design: Built for heavy-duty industrial circuit protection.
- Thermal-magnetic trip: Provides long-time overload and instantaneous short-circuit response.
- 22 kA interrupt rating: Handles high fault currents for enhanced system safety.
- 3-pole, 3-phase configuration: Supports robust 240 VAC power distribution.
- Bolt-on mounting: Secure installation in panelboard systems.
- Wide wire range: Box-lug terminals accept 4 to 2/0 AWG conductors.
- Compact industrial footprint: Measures 2.91" × 2.25" × 3.5" for efficient panel layout.
- Rated for 40°C environments: Consistent performance under typical industrial conditions.
The QOB3100VH delivers the reliability and precision required for molded case circuit protection in industrial power systems.
