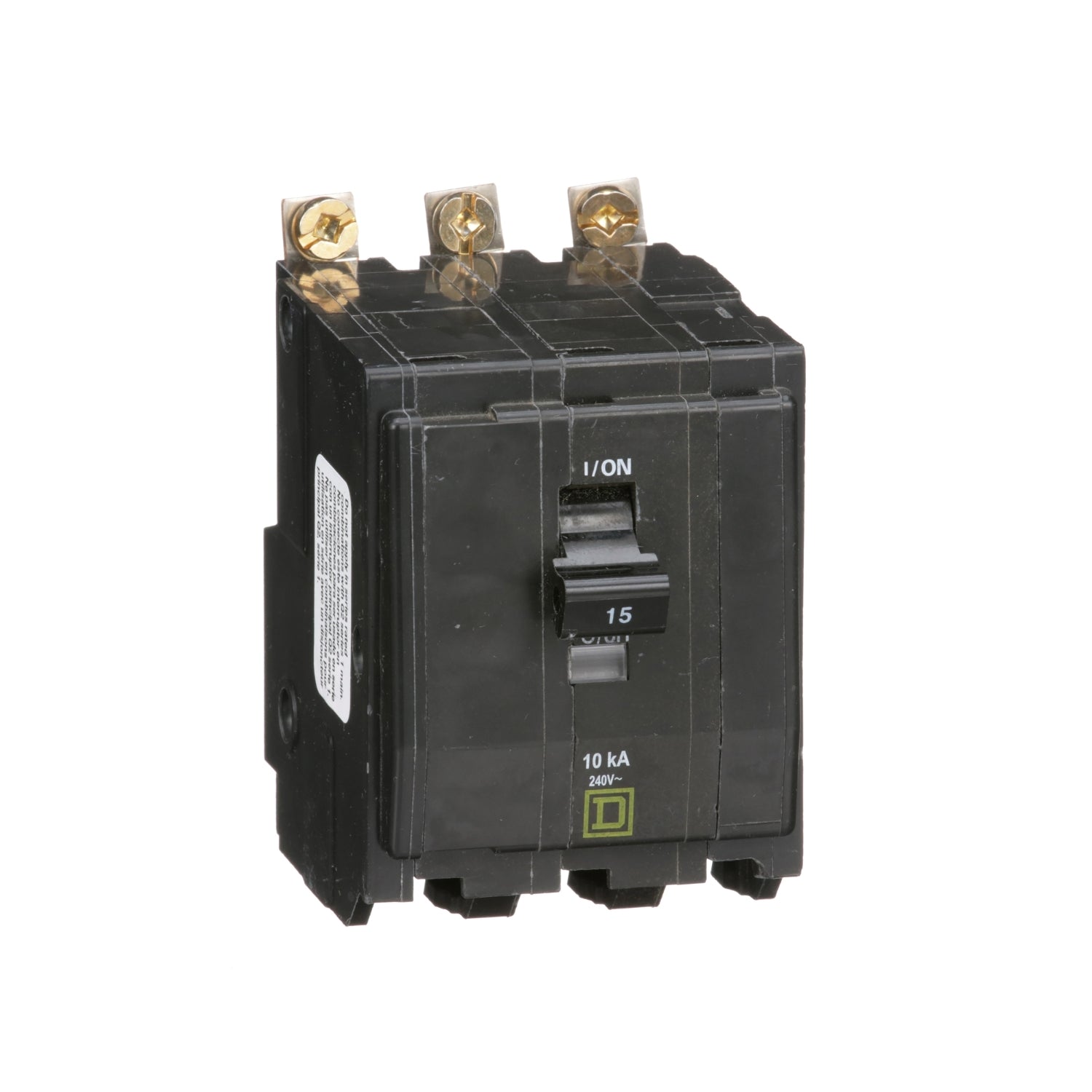

QOB315 | Schneider Electric Mini Circuit Breaker
- Regular price
- $105.00
- Sale price
- $105.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QOB315
Description
The QOB315 is a QO series mini circuit breaker designed for 120/240VAC systems. It has a 15A rating and a 3-pole configuration, with a breaking capacity of 10kA. This bolt-on circuit breaker features a thermal magnetic trip mechanism, an over center, trip-free toggle mechanism, and VisiTrip indication. It includes factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches. The QOB315 is UL Listed under UL File E84967 and CSA Certified under CSA Master Contract 153555.
Technical Specifications
|
Part # |
QOB315 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
15 A |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
2.24 in (57 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.85 lb(US) (0.386 kg) |
Information About QOB315
The QOB315 is a mini circuit breaker categorized under the QO series, designed for applications requiring overcurrent protection and switching in both AC and DC systems. Available in one, two, and three-pole configurations, these thermal magnetic circuit breakers feature an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication for efficient operation.
Additionally, the QOB315 includes VisiTrip trip indication, offering visual confirmation when the circuit breaker has tripped and interrupted the circuit. A comprehensive range of features and factory-installed accessories, such as shunt trips, auxiliary switches, and alarm switches, are readily available to meet diverse application requirements.
This specific QOB315 model is a three-pole circuit breaker rated at 15A, suitable for use in systems operating at 120/240VAC. With a breaking capacity of 10kA, it ensures reliable protection against overcurrent conditions. The QOB315 features bolt-on mounting, facilitating secure installation within electrical panels.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
