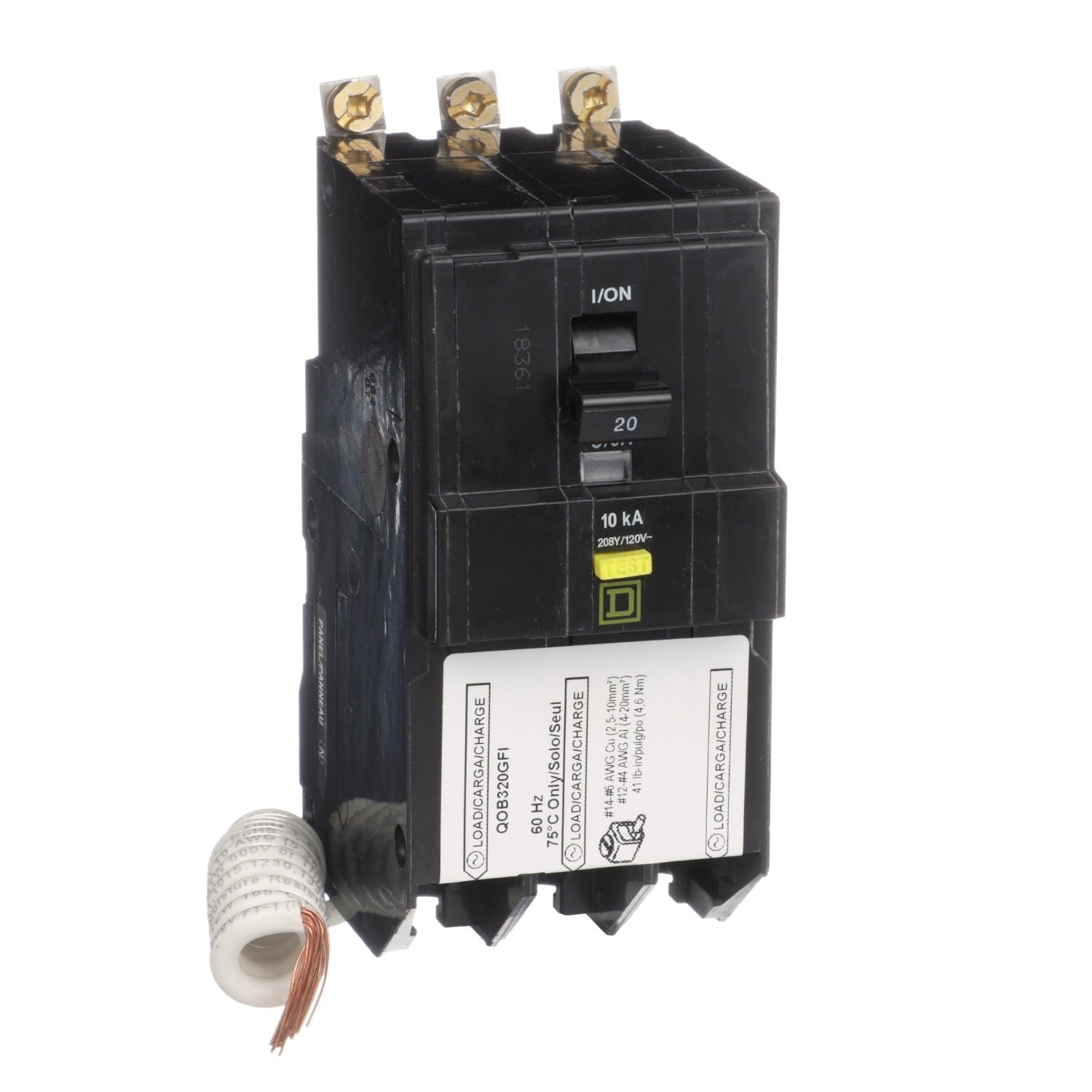

QOB320GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $594.00
- Sale price
- $594.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB320GFI
Description
The QOB320GFI is a mini circuit breaker belonging to the QO series, rated at 20 amperes (20A). It features a three-pole (3 Pole) configuration and operates at a voltage of 208Y/120 volts AC (208Y/120VAC). With a breaking capacity of 10 kiloamperes (10kA), this circuit breaker utilizes a Bolt On mounting mechanism.
Key features of the QO and QOB thermal magnetic circuit breakers include overcurrent protection and switching capabilities for both AC and DC systems. They employ an over-center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. Additionally, they are equipped with VisiTrip trip indication, providing a visual indication of circuit interruption.
Technical Specifications
|
Part # |
QOB320GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
208Y/120 V AC |
|
Mounting Type |
Bolt-On |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Ground Fault Protecting Class A 6 mA |
|
Ratings |
Not Rated |
|
Electrical Connection |
Box Lugs |
|
Interrupt Rating |
10 kA 208Y/120 V AC |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 12...AWG 4 Aluminum |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
4.13 in (105 mm) |
|
Width |
2.24 in (57 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
1.00 lb (0.454 kg) |
Information About QOB320GFI
The QOB320GFI is a mini circuit breaker from the QO series, designed to provide overcurrent protection and switching capabilities for both AC and DC systems. It operates at a current rating of 20 amperes (20A) and features a three-pole (3 Pole) configuration, suitable for applications requiring multiple phases. Operating at a voltage of 208Y/120 volts AC (208Y/120VAC), it ensures reliable performance in various electrical systems.
Key features of the QO and QOB thermal magnetic circuit breakers include an over-center, trip-free toggle mechanism with quick-make, quick-break action, and positive handle indication. Additionally, they are equipped with VisiTrip trip indication, offering visual confirmation when the circuit breaker has tripped and interrupted the circuit.
The QOB320GFI comes with a host of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, providing enhanced functionality and versatility. With a 10 kiloampere (10kA) breaking capacity and bolt-on mounting mechanism, this circuit breaker ensures reliable operation and easy installation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
