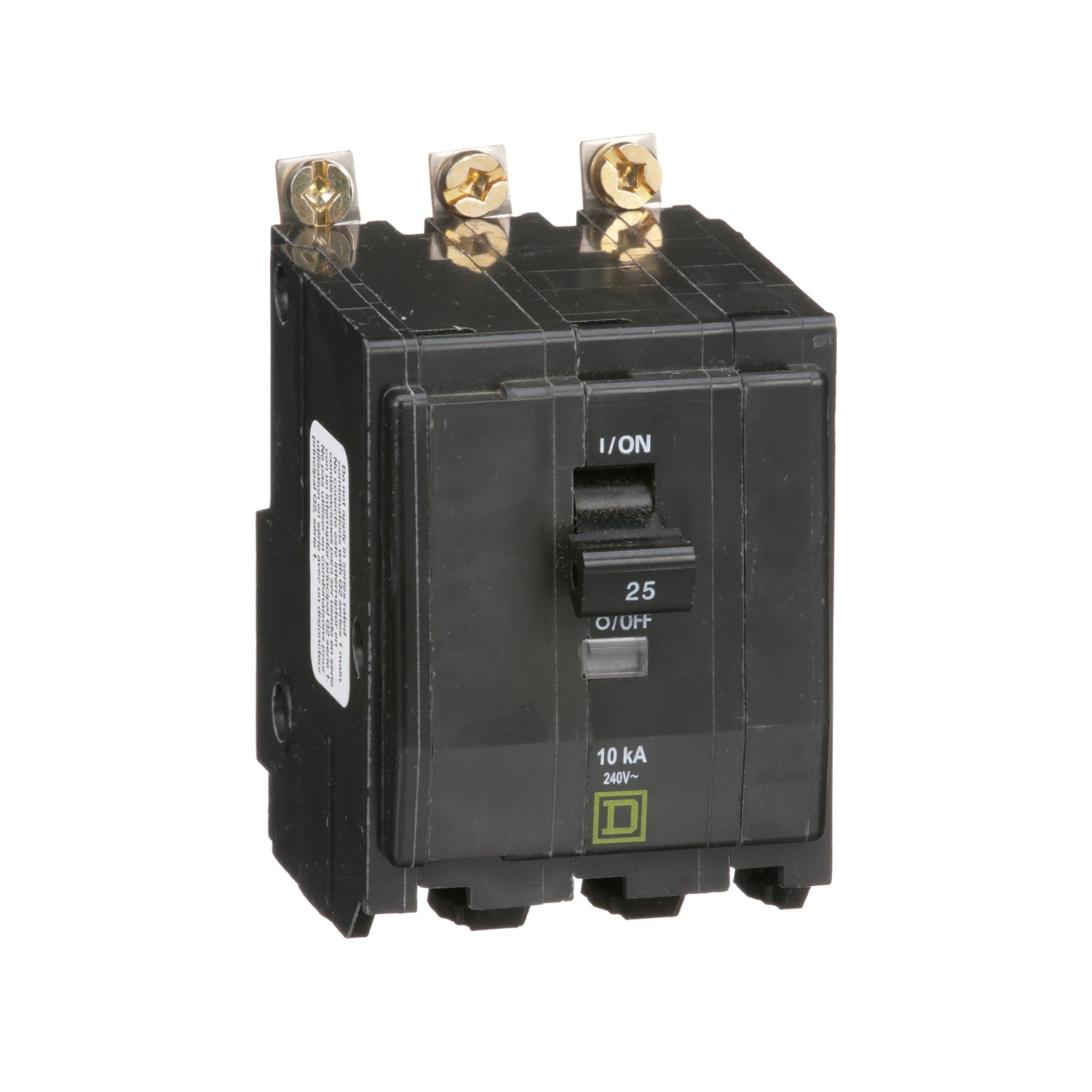

QOB325 | Schneider Electric Mini Circuit Breaker
- Regular price
- $249.00
- Sale price
- $249.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB325
Description
The QOB325 Mini Circuit Breaker, part of the QO series, offers reliable overcurrent protection and switching capabilities for both AC and DC systems. Equipped with a thermal magnetic mechanism, these circuit breakers feature an over-center, trip-free toggle mechanism with quick-make, quick-break action, and positive handle indication.
The VisiTrip trip indication provides a visual signal when the circuit breaker has tripped, ensuring prompt identification of interruptions. Additionally, a wide range of factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, are available to enhance functionality.
Technical Specifications
|
Part # |
QOB325 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
25 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminum |
|
Tightening Torque |
35.40 lbf.in (4 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
2.24 in (57 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.82 lb (US) (0.372 kg) |
|
Ambient Rating |
104 °F (40 °C) |
Information About QOB325
The QOB325 is a Mini Circuit Breaker, specifically from the QO series, designed for various applications requiring overcurrent protection and switching on both AC and DC systems. These circuit breakers feature a thermal magnetic mechanism with an over center, trip-free toggle mechanism, ensuring quick make, quick break action, and positive handle indication. Additionally, they include VisiTrip trip indication, offering a visual cue when the circuit breaker trips and interrupts the circuit.
This Mini Circuit Breaker comes with a comprehensive set of features and options. It supports one, two, and three-pole configurations and is compatible with factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, providing flexibility and customization options to suit different needs.
The QOB325 is a 3-pole circuit breaker rated at 25A, suitable for use with 120/240VAC systems. It offers a high breaking capacity of 10kA, ensuring reliable protection against overcurrents and short circuits. With bolt-on mounting, installation is straightforward and secure, ensuring stable operation in various environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
