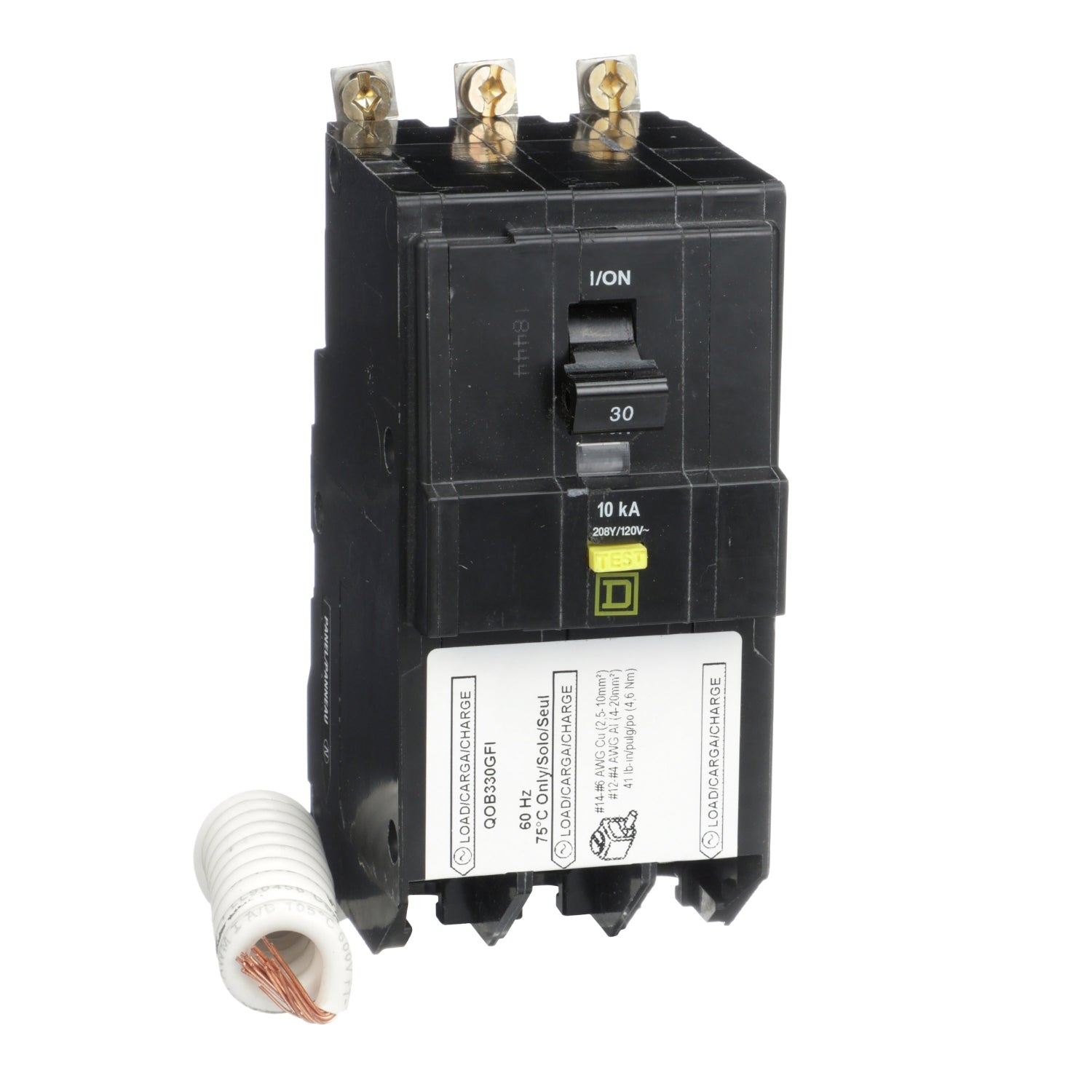

QOB330GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $547.00
- Sale price
- $547.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QOB330GFI
Description
The QOB330GFI mini circuit breaker, part of Square D's QO series, offers robust overcurrent protection and switching capabilities for both AC and DC systems. Available in one, two, and three pole configurations, these thermal magnetic circuit breakers feature an over center, trip-free toggle mechanism with quick make and break actions, ensuring efficient operation and a positive handle indication for clear status indication. The VisiTrip trip indication provides a visual signal when the circuit breaker trips, aiding in identifying circuit interruptions.
|
Part Number |
QOB330GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
30 A |
|
Voltage Rating |
208Y/120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Interrupt Rating |
10 kA 208Y/120 V AC |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 12...AWG 4 aluminium<br>AWG 14...AWG 6 copper |
|
Tightening Torque |
35.40 lbf.in (4 N.m)<br>40.71 lbf.in (4.6 N.m) (AWG 12...AWG 4) |
|
Height |
4.13 in (105 mm) |
|
Width |
2.24 in (57 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
1.32 lb(US) (0.600 kg) |
Information About QOB330GFI
The QOB330GFI circuit breaker belongs to the QO and QOB series, offering one, two, and three pole thermal magnetic configurations for overcurrent protection and switching in both AC and DC electrical systems. These circuit breakers feature an over center, trip-free toggle mechanism that ensures quick make and quick break actions, along with positive handle indication for operational status. Additionally, they include VisiTrip trip indication, providing a clear visual signal when the circuit breaker has tripped and interrupted the circuit.
This specific QO circuit breaker is a three pole model rated at 30A and operates at 208Y/120VAC. It is designed for bolt-on mounting and offers a substantial 10kA breaking capacity, ensuring reliable protection against short circuits and overloads. The product is equipped with a 6mA ground fault protecting class A feature, including a pigtail connection.
