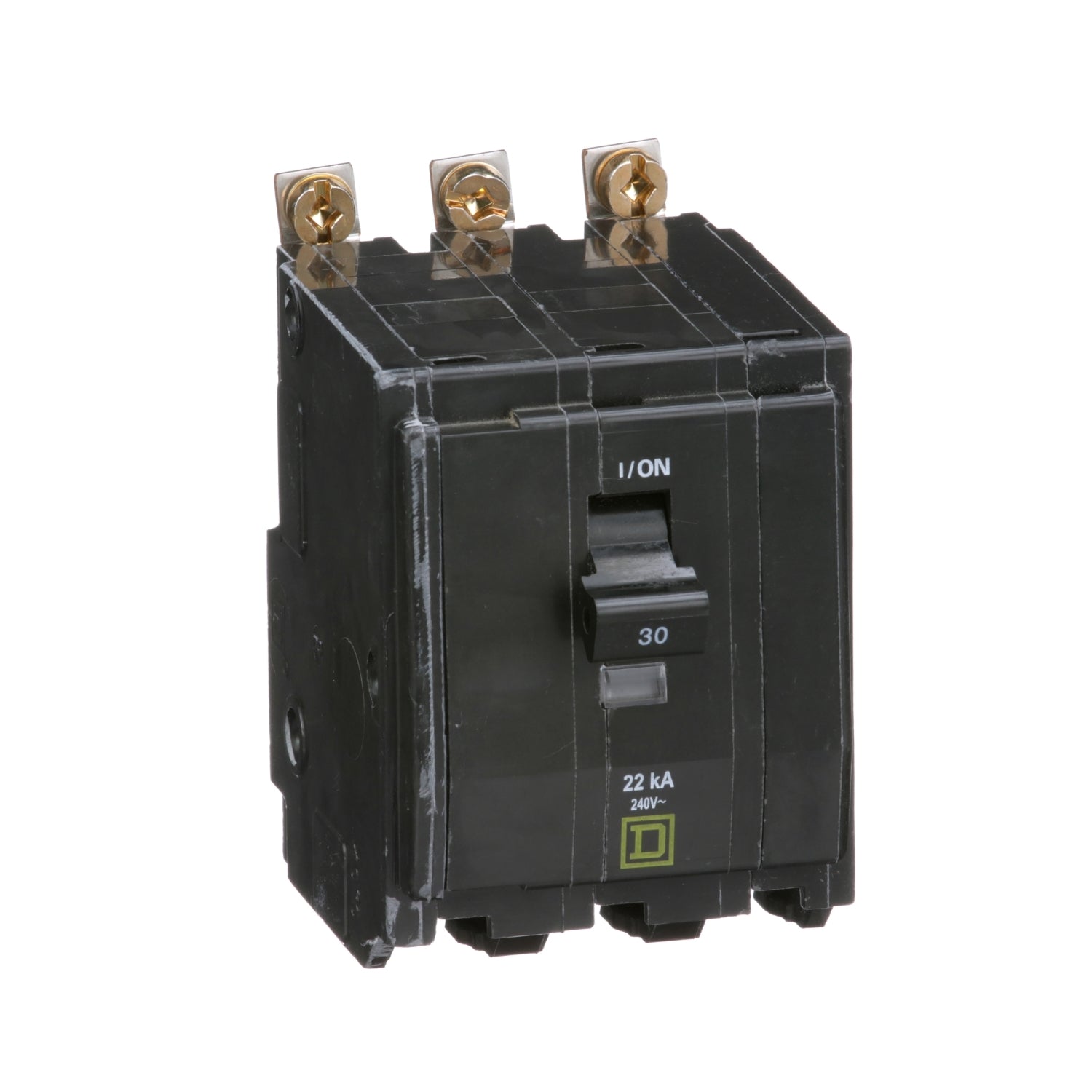

QOB330VH | Schneider Electric Mini Circuit Breaker
- Regular price
- $134.00
- Sale price
- $134.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB330VH
Description
The QOB330VH is a three-pole QO mini circuit breaker designed to provide overcurrent protection and switching capabilities for both AC and DC systems. Manufactured under the QO series by Square D™, these thermal magnetic circuit breakers feature an over-center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication.
Equipped with VisiTrip trip indication, the QOB330VH offers visual confirmation when the circuit breaker has tripped and interrupted the circuit. This feature enhances operational visibility and safety.
Technical Specifications
|
Part # |
QOB330VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Product, Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
30 A |
|
Voltage Rating |
120/240 V AC, 240 V AC, 120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
40.71 lbf.in (4.6 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
2.24 in (57 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.80 lb(US) (0.363 kg) |
Information About QOB330VH
The QOB330VH is a robust mini circuit breaker within the QO series by Square D™, designed to deliver reliable overcurrent protection and switching capabilities for both AC and DC systems. These circuit breakers employ a thermal magnetic mechanism across one, two, and three poles, featuring an over center, trip-free toggle mechanism with quick make and quick break actions. They also include a positive handle indication and VisiTrip feature, offering visual confirmation when the breaker trips and interrupts the circuit.
Engineered for durability and efficiency, the QO and QOB series circuit breakers are equipped with a range of features and optional factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, catering to diverse application needs.
Specifically, the QOB330VH is a three-pole circuit breaker rated at 30A, suitable for operation at 120/240VAC. It boasts a robust 22kA breaking capacity and utilizes a bolt-on mounting configuration, ensuring secure installation in various electrical systems.
Certified to meet stringent safety standards, the QO circuit breakers are UL Listed under UL File E84967 and hold CSA Certification under CSA Master Contract 153555, ensuring compliance with rigorous industry regulations and standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
