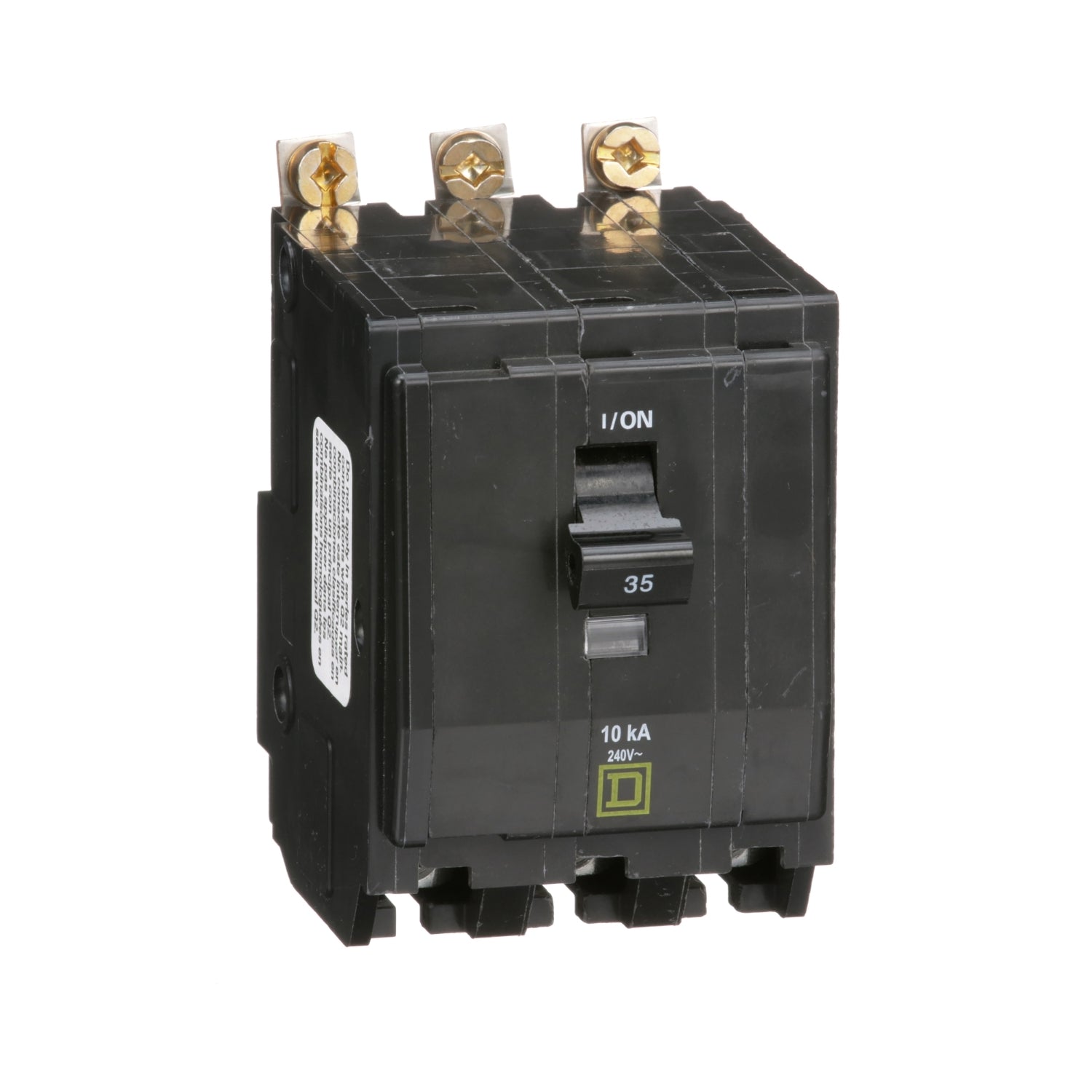

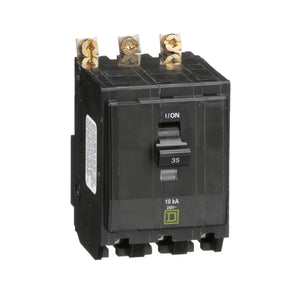

QOB335 | Schneider Electric Mini Circuit Breaker
- Regular price
- $194.00
- Sale price
- $194.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB335
Description
The QOB335 is a three-pole Mini Circuit Breaker from the QO series, designed for both AC and DC systems to provide overcurrent protection and switching. Featuring a thermal magnetic mechanism, it includes an over center, trip-free toggle with quick make and break action, alongside positive handle indication. The breaker incorporates VisiTrip trip indication for visual confirmation of tripped status and circuit interruption.
Technical Specifications
|
Part # |
QOB335 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
35 A |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
3 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2) |
|
Height |
3.11 in (79 mm) |
|
Width |
2.24 in (57 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.82 lb(US) (0.372 kg) |
Information About QOB335
The QOB335 is a three-pole Mini Circuit Breaker from the QO series designed to deliver thermal magnetic overcurrent protection and switching capabilities for both AC and DC systems. Featuring an over center, trip-free toggle mechanism, it ensures quick make and break actions with positive handle indication for operational clarity. The breaker includes VisiTrip trip indication, providing a visual signal when tripped, thereby interrupting the circuit.
Rated at 35A for operation at 120/240VAC, the QOB335 offers a robust 10kA breaking capacity, suitable for various residential and commercial applications. It utilizes a bolt-on mounting system, facilitating secure installation in electrical panels.
QO circuit breakers, including the QOB335, are comprehensively equipped with a range of factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, ensuring versatility and enhanced functionality as per specific requirements.
