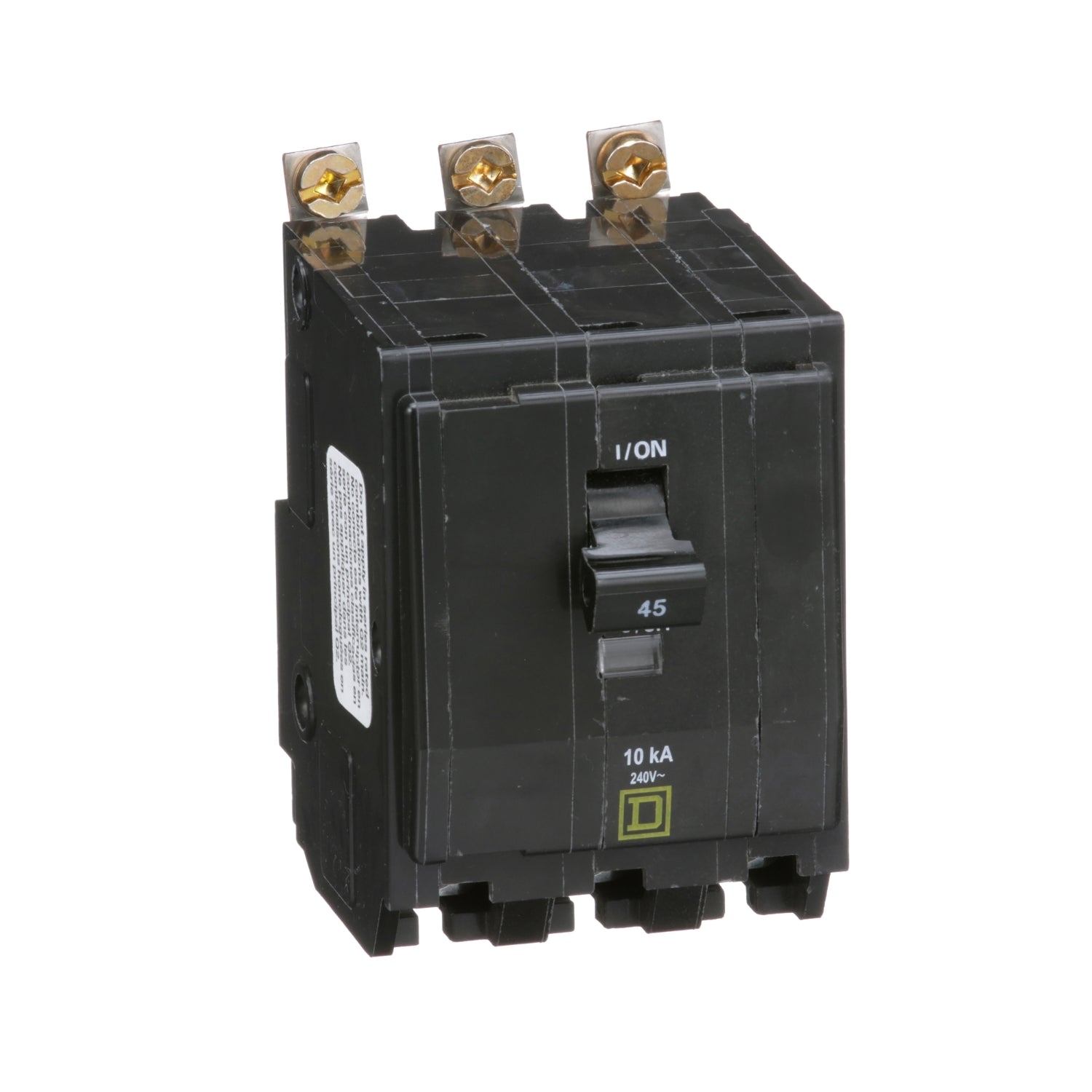

QOB345 | Schneider Electric Mini Circuit Breaker
QOB345 | Schneider Electric Mini Circuit Breaker
Part #: QOB345 Manufactured by: Schneider Electric

QOB345 | Schneider Electric Mini Circuit Breaker

Regular price
$530.00
Sale price
$530.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The QOB345 is a mini circuit breaker belonging to the QO series, designed to provide overcurrent protection and switching ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: QOB345
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
QOB345 | Schneider Electric Mini Circuit Breaker
    QOB345 | Schneider Electric Mini Circuit Breaker
QOB345 | Schneider Electric Mini Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: QOB345

Description / Specifications

Description

The QOB345 is a Mini Circuit Breaker from the QO series, designed for overcurrent protection and switching in both AC and DC systems. Featuring a three-pole configuration, it employs a thermal magnetic mechanism with an over-center, trip-free toggle mechanism for quick make, quick break action and positive handle indication. Additionally, it is equipped with VisiTrip trip indication, offering a visual signal upon circuit interruption.



Technical Specifications

Part #

QOB345

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

QO

Current Rating

45 A

Voltage Rating

120/240 V AC

  Voltage Rating

240 V AC

  Voltage Rating

120 V AC

Mounting Type

Bolt-on

Number of Poles

3P

Circuit Breaker Type

Standard

Ratings

HACR rated

Electrical Connection

Box lugs

Number of Panel Spaces

3

Wire Size

AWG 8...AWG 2 copper or aluminium

Tightening Torque

44.25 lbf.in (5 N.m)

Height

3.11 in (79 mm)

Width

2.24 in (57 mm)

Depth

2.91 in (74 mm)

Net Weight

0.84 lb(US) (0.381 kg)



Information About QOB345

The QOB345 is a mini circuit breaker belonging to the QO range. Designed for electrical systems, it offers overcurrent protection and switching capabilities for both AC and DC systems. Featuring a thermal magnetic mechanism, these circuit breakers employ an over center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication. Additionally, they are equipped with VisiTrip trip indication, providing a visual cue when the circuit breaker trips and interrupts the circuit.

A comprehensive array of features and factory-installed accessories are available for these circuit breakers, including shunt trips, auxiliary switches, and alarm switches. This particular unit is a 3-pole QO circuit breaker, rated at 45A and suitable for operation at 120/240VAC. It boasts a breaking capacity of 10kA and is designed for bolt-on mounting, ensuring secure installation.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The QOB345 is a Mini Circuit Breaker from the QO series, designed for overcurrent protection and switching in both AC and DC systems. Featuring a three-pole configuration, it employs a thermal magnetic mechanism with an over-center, trip-free toggle mechanism for quick make, quick break action and positive handle indication. Additionally, it is equipped with VisiTrip trip indication, offering a visual signal upon circuit interruption.



Technical Specifications

Part #

QOB345

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

QO

Current Rating

45 A

Voltage Rating

120/240 V AC

  Voltage Rating

240 V AC

  Voltage Rating

120 V AC

Mounting Type

Bolt-on

Number of Poles

3P

Circuit Breaker Type

Standard

Ratings

HACR rated

Electrical Connection

Box lugs

Number of Panel Spaces

3

Wire Size

AWG 8...AWG 2 copper or aluminium

Tightening Torque

44.25 lbf.in (5 N.m)

Height

3.11 in (79 mm)

Width

2.24 in (57 mm)

Depth

2.91 in (74 mm)

Net Weight

0.84 lb(US) (0.381 kg)



Information About QOB345

The QOB345 is a mini circuit breaker belonging to the QO range. Designed for electrical systems, it offers overcurrent protection and switching capabilities for both AC and DC systems. Featuring a thermal magnetic mechanism, these circuit breakers employ an over center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication. Additionally, they are equipped with VisiTrip trip indication, providing a visual cue when the circuit breaker trips and interrupts the circuit.

A comprehensive array of features and factory-installed accessories are available for these circuit breakers, including shunt trips, auxiliary switches, and alarm switches. This particular unit is a 3-pole QO circuit breaker, rated at 45A and suitable for operation at 120/240VAC. It boasts a breaking capacity of 10kA and is designed for bolt-on mounting, ensuring secure installation.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
