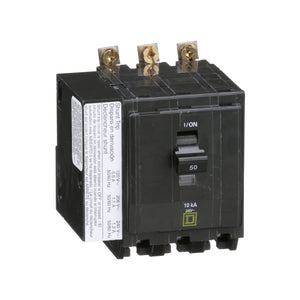

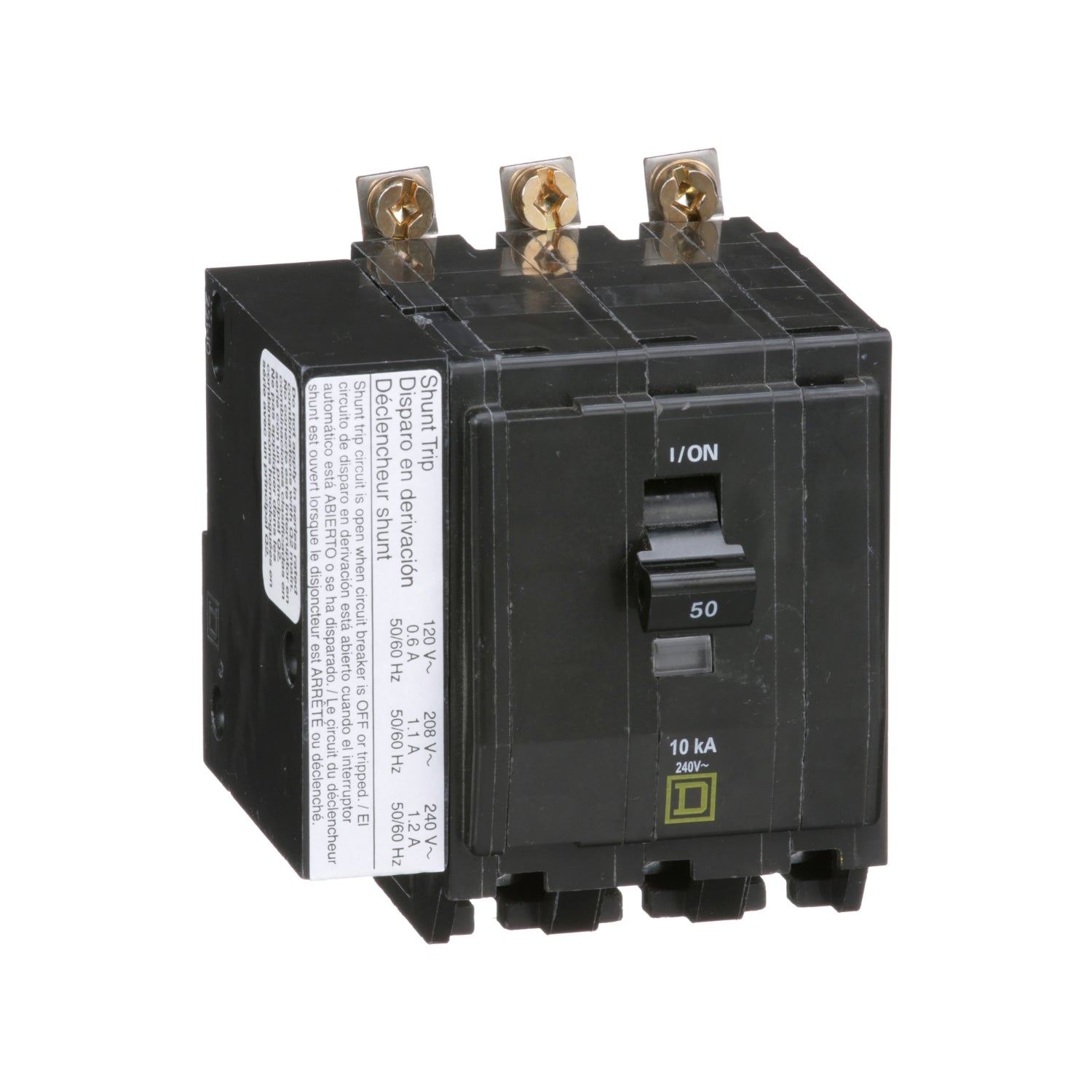

QOB3501021 | Schneider Electric Mini Circuit Breaker
- Regular price
- $697.00
- Sale price
- $697.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB3501021
DescriptionThe QOB3501021 is a Mini Circuit Breaker belonging to the QO series, featuring a 50A rating and 3 poles. Engineered to provide overcurrent protection and switching on both AC and DC systems, QO and QOB thermal magnetic circuit breakers employ an over-center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication.
Equipped with VisiTrip trip indication, these circuit breakers offer visual confirmation when tripped, signaling the interruption of the circuit. Additionally, a comprehensive range of features and factory-installed accessories, including shunt trips, auxiliary switches, and alarm switches, are available to enhance functionality.
Technical Specifications
|
Part # |
QOB3501021 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Subcategory |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
50 A |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
3P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Options |
Shunt trip 120/208/240 V AC |
|
Number of Panel Spaces |
4 |
|
Wire Size |
AWG 8...AWG 2 copper or aluminum |
|
Tightening Torque |
44.25 lbf.in (5 N.m) |
|
Height |
3.11 in (79 mm) |
|
Width |
2.99 in (76 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
1.18 lb(US) (0.535 kg) |
Information About QOB3501021
The QOB3501021 is a Mini Circuit Breaker within the QO series, featuring a 50A rating and 3 poles. QO and QOB one, two, and three-pole thermal magnetic circuit breakers offer overcurrent protection and switching capabilities for both AC and DC systems. These circuit breakers are equipped with an over-center, trip-free toggle mechanism that ensures quick-make, quick-break action, along with positive handle indication.
Furthermore, they feature VisiTrip trip indication, providing a visual cue when the circuit breaker has tripped, thereby interrupting the circuit. A comprehensive array of features and factory-installed accessories are available, including shunt trips, auxiliary switches, and alarm switches, enhancing their functionality.
This 3-pole QO circuit breaker is rated at 50A for 120/240VAC applications, boasting a breaking capacity of 10kA and bolt-on mounting for secure installation. Additionally, it comes equipped with an AC shunt trip for added versatility.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
