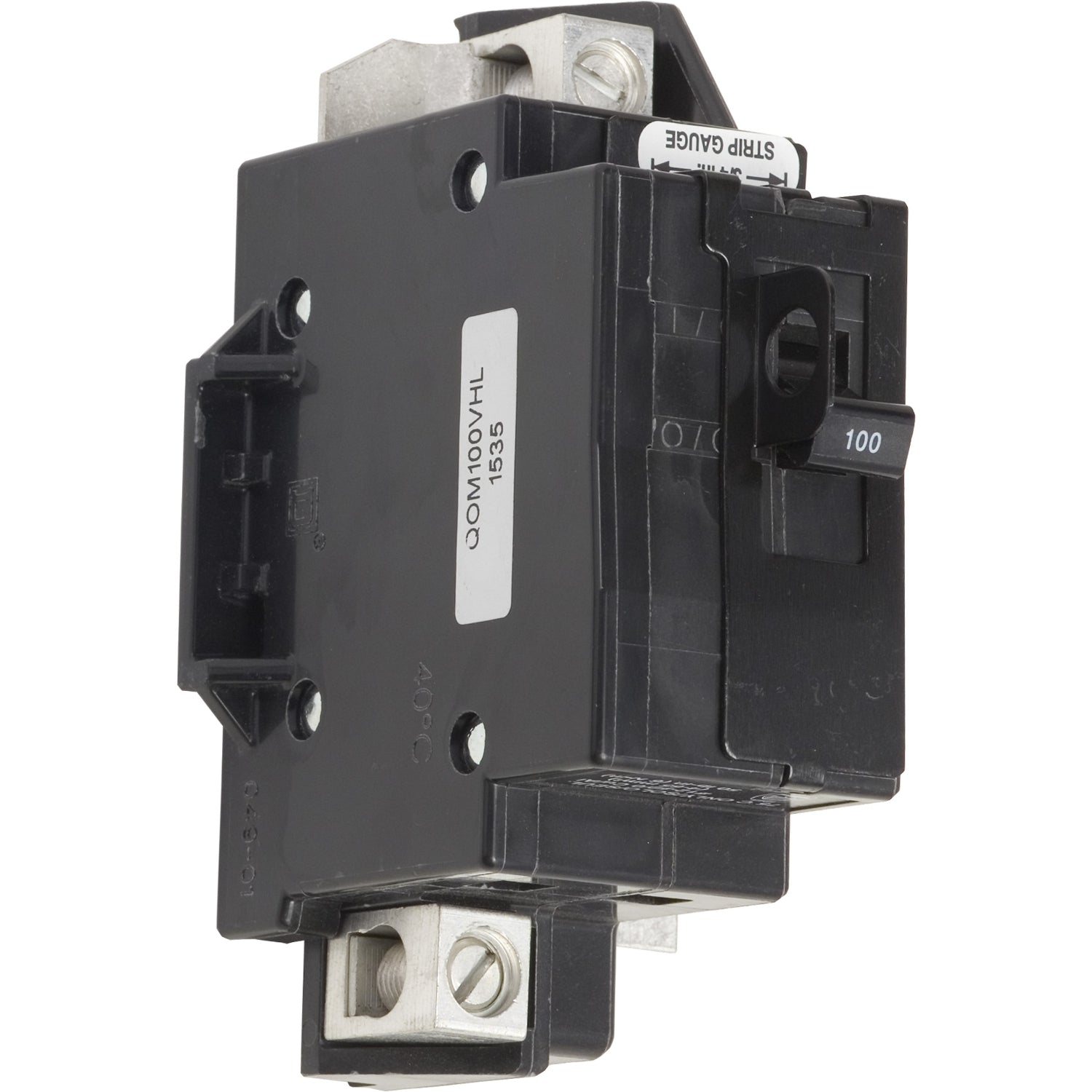

QOM100VHL | Schneider Electric Main Breaker
- Regular price
- $197.00
- Sale price
- $197.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QOM100VHL
Description
The QOM100VHL is a Main Breaker belonging to the QO series by Schneider Electric. QO circuit breakers, available in one, two, and three poles, offer overcurrent protection and switching capabilities for both AC and DC systems.
Featuring an over-center, trip-free toggle mechanism, QO breakers ensure quick make, quick break action, and positive handle indication. They incorporate VisiTrip trip indication, providing a visual cue when the breaker trips and interrupts the circuit.
This 2-pole QO main breaker is rated at 125A for operation at 120/240VAC. It offers a breaking capacity of 22kA and utilizes bolt-on mounting for secure installation.
Technical Specifications
|
Part # |
QOM100VHL |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature Circuit-breaker |
|
Range |
QO |
|
Current Rating |
100 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
Primary Main Breaker |
|
Electrical Connection |
Lugs |
|
Interrupt Rating |
22 kA 120/240 V AC |
|
|
22 kA 120 V AC |
|
Wire Size |
AWG 4...AWG 2/0 copper or aluminium |
|
Tightening Torque |
53.10 lbf.in (6 N.m) |
|
|
0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0) |
|
Height |
5.08 in (129 mm) |
|
Width |
5.00 in (127 mm) |
|
Depth |
3.46 in (88 mm) |
|
Net Weight |
1.33 lb(US) (0.603 kg) |
|
Load Center Type |
Main Breaker |
|
Number of Phases |
1 phase |
|
For Use With |
QO Load Center |
|
Breaker Compatibility |
Load Center QO |
Information About QOM100VHL
The QOM100VHL is a Main Breaker belonging to the QO series by Schneider Electric. QO circuit breakers, available in one, two, and three poles, offer overcurrent protection and switching capabilities for both AC and DC systems. These breakers feature an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication, ensuring efficient operation.
Additionally, QO breakers incorporate VisiTrip trip indication, providing a visual cue when the breaker trips and interrupts the circuit. The QOM100VHL, specifically, is a 2-pole main breaker rated at 125A for operation at 120/240VAC. It offers a breaking capacity of 22kA and utilizes bolt-on mounting for secure installation.
In addition to its primary functions, the QOM100VHL main breaker supports a full line of features and factory-installed accessories such as shunt trips, auxiliary switches, and alarm switches, enhancing its functionality and adaptability to various applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
