QOM2125VH | Schneider Electric Main Breaker
- Regular price
- $192.00
- Sale price
- $192.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

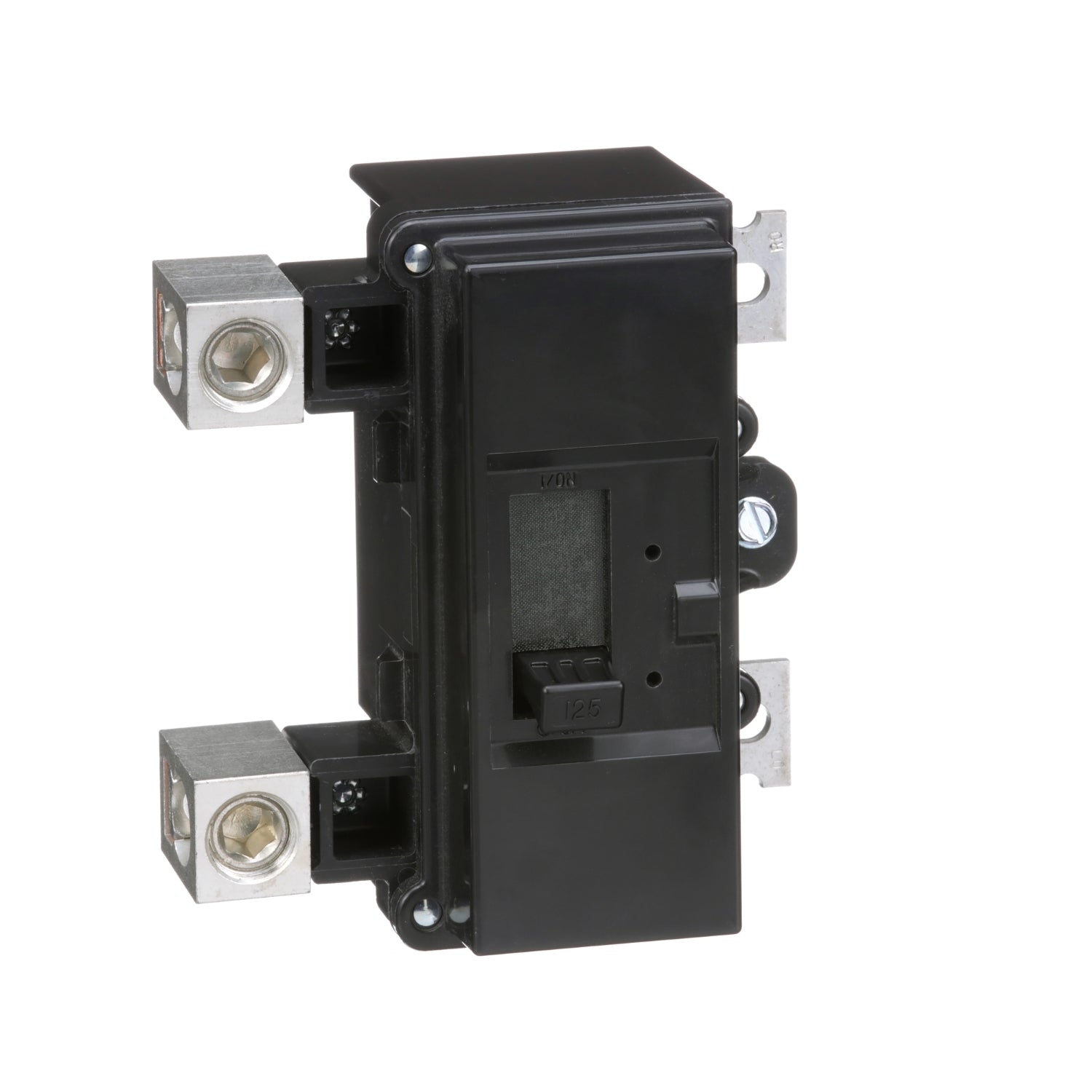

Product Description P/N: QOM2125VH
Description
QOM2125VH - Main Breaker, QO, 125A, 2 Pole, 120/240VAC, 22kA, Bolt On. QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. These circuit breakers feature an over-center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also include VisiTrip trip indication, offering a visual signal that the circuit breaker has tripped and interrupted the circuit.
Technical Specifications
|
Part # |
QOM2125VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
125 A |
|
Voltage Rating |
120/240 V AC |
|
|
120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Electrical Connection |
Lugs |
|
Frame Size |
QOM2 |
|
Interrupt Rating |
22 kA 120/240 V AC |
|
|
22 kA 120 V AC |
|
Wire Size |
AWG 4...300 kcmil aluminium/copper |
|
Tightening Torque |
53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0) |
|
Height |
5.6 in (142 mm) |
|
Width |
3.6 in (91 mm) |
|
Depth |
5.08 in (129 mm) |
|
Net Weight |
2.67 lb(US) (1.210 kg) |
|
Load Center Type |
Main breaker |
|
Number of Phases |
1 phase |
|
For Use With |
QO load center |
|
|
Homeline load center |
|
Breaker Compatibility |
Load center QO |
|
|
Load center Homeline |
Information About QOM2125VH
The QOM2125VH main breaker is part of the QO range of molded case circuit breakers. It is designed to provide overcurrent protection and switching for AC and DC systems. The breaker is a two-pole unit rated at 125A with an operational voltage of 120/240VAC. It features a 22kA interrupting capacity, making it suitable for a variety of electrical distribution applications.
This circuit breaker utilizes thermal magnetic trip technology, which provides protection against both overload and short-circuit conditions. The thermal component of the trip unit protects against overloads by using a bimetallic strip that bends when heated, while the magnetic component responds to short-circuits by using an electromagnet. This dual-function trip mechanism ensures reliable protection under various fault conditions.
The QOM2125VH breaker is equipped with an over center, trip-free toggle mechanism. This mechanism ensures that the breaker will trip regardless of the toggle position, providing an added layer of safety. The quick make, quick break action of the toggle mechanism allows for rapid opening and closing of the circuit, reducing arcing and extending the life of the breaker.
