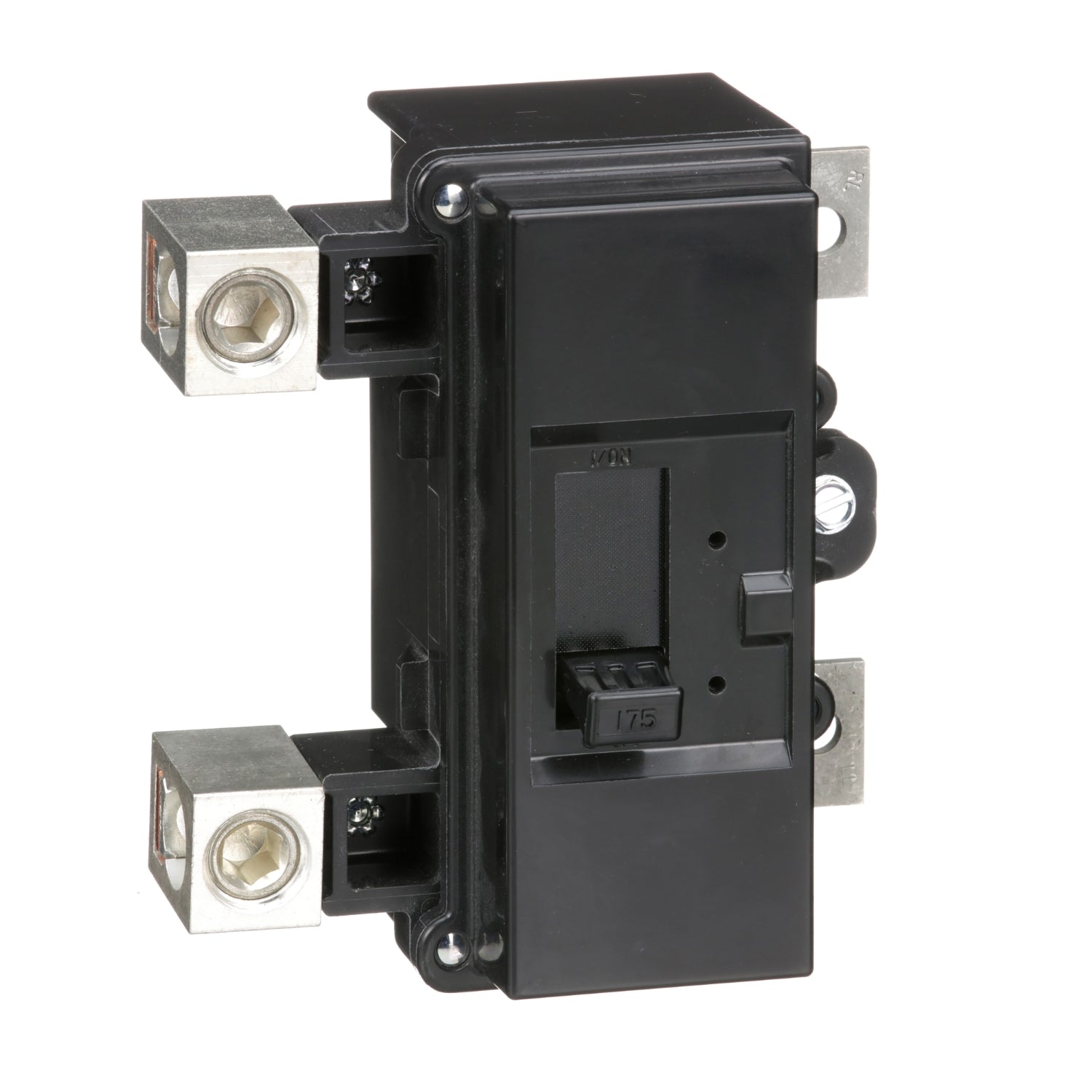

QOM2175VH | Schneider Electric Main Breaker
- Regular price
- $205.00
- Sale price
- $205.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOM2175VH
Description
Square D QO Miniature Circuit Breaker, Type QOM, 240 VAC, 175 A, 60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 175 A Trip, 2 Pole, 1 ph, Box Lug Connection, 4 AWG to 300 kcmil Al/Cu Wire, Bolt-On Mounting, 40 deg C, 5.07 in L x 3.6 in W x 5.6 in H Dimensions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QOM2175VH |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 175 A |
| Connection type | Box Lug |
| Dimensions | 5.07 in L x 3.6 in W x 5.6 in H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 22 kA |
| Mounting type | Bolt-On |
| Number of Poles | 2 |
| Phase | 1 |
| Temperature Rating (Degrees F) | 104, 40, 40 deg C |
| Trip Range | 175 A |
| Trip Type | Thermal Magnetic |
| Type | Type QOM |
| Voltage Rating | 120/240, 240, 240 VAC |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
Information About QOM2175VH
The QOM2175VH by Square D is a QO miniature circuit breaker renowned for its robust performance and reliable protection capabilities. Operating at 240 volts AC with a frequency of 60 Hz, it efficiently manages electrical currents in various applications.
With an amperage rating of 175A and a high interrupting capacity of 22 kA, this circuit breaker effectively safeguards electrical circuits from overloads and short circuits. It employs a thermal-magnetic trip mechanism, ensuring prompt response to both sustained overloads and short-circuit faults.
Featuring two poles and suitable for single-phase systems, the QOM2175VH offers comprehensive protection across both phases. Its box lug connection accommodates wire sizes ranging from 4 AWG to 300 kcmil for aluminum or copper conductors, providing flexibility in installation.
Designed for bolt-on mounting, this circuit breaker ensures secure attachment to electrical panels or enclosures. With dimensions of 5.07 inches in length, 3.6 inches in width, and 5.6 inches in height, it offers a compact yet sturdy construction suitable for various installation requirements.
Overall, the Square D QOM2175VH circuit breaker combines high-performance features, reliable protection, and versatile installation options, making it an ideal choice for demanding electrical applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
