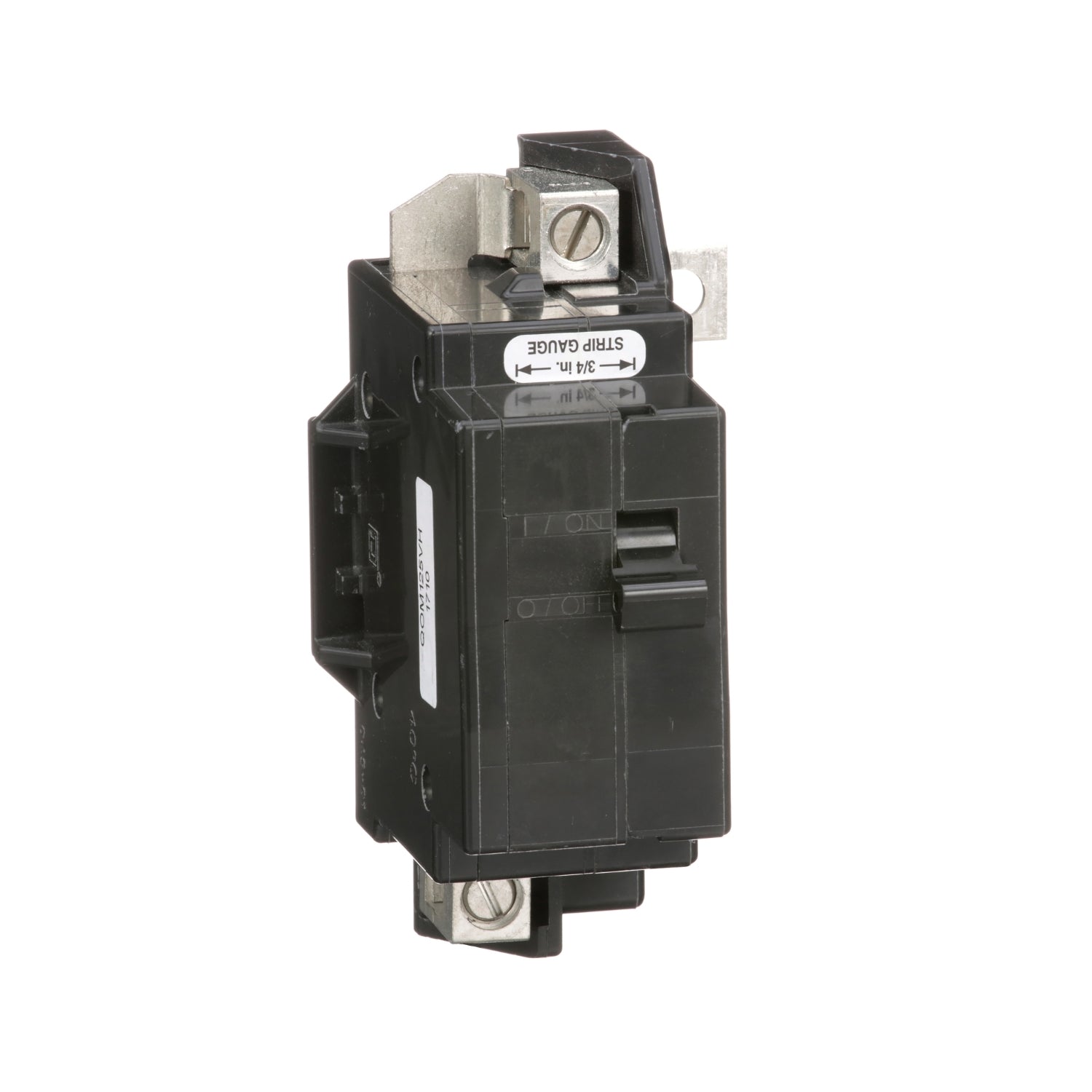

QOM70VH | Schneider Electric Main Breaker
- Regular price
- $129.00
- Sale price
- $129.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOM70VH
Description
The QOM70VH is a QO-series main breaker designed to provide robust overcurrent protection and switching capabilities for both AC and DC electrical systems. Featuring a thermal magnetic trip mechanism, this 2-pole breaker utilizes an over-center, trip-free toggle mechanism with quick make, quick break action and positive handle indication for efficient operation. It includes VisiTrip trip indication, offering clear visual confirmation of tripped status and circuit interruption.
Technical Specifications
|
Part # |
QOM70VH |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
QO |
|
Current Rating |
70 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
2P |
|
Circuit Breaker Type |
Standard |
|
Electrical Connection |
Lugs |
|
Frame Size |
QOM1 |
|
Interrupt Rating |
22 kA at 120/240 V AC |
|
Wire Size |
AWG 4...AWG 2/0 aluminum/copper |
|
Tightening Torque |
53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0) |
|
Height |
5.08 in (129 mm) |
|
Width |
3.46 in (88 mm) |
|
Depth |
5.00 in (127 mm) |
|
Net Weight |
1.25 lb (0.567 kg) |
|
Load Center Type |
Main breaker |
Information About QOM70VH
The QOM70VH is a main breaker from the QO series, designed by Square D for providing robust overcurrent protection and switching capabilities in both AC and DC electrical systems. These thermal magnetic circuit breakers, available in one, two, and three pole configurations, feature an over center, trip-free toggle mechanism ensuring quick make and break actions with positive handle indication. They incorporate VisiTrip technology, offering a visual indication when the breaker has tripped and interrupted the circuit.
This specific 2-pole QO main breaker is rated at 70A with a voltage rating of 120/240VAC. It boasts a substantial 22kA breaking capacity, making it suitable for handling high fault currents. The breaker is designed for bolt-on mounting, facilitating secure installation and ensuring reliable operation under varying electrical loads.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
