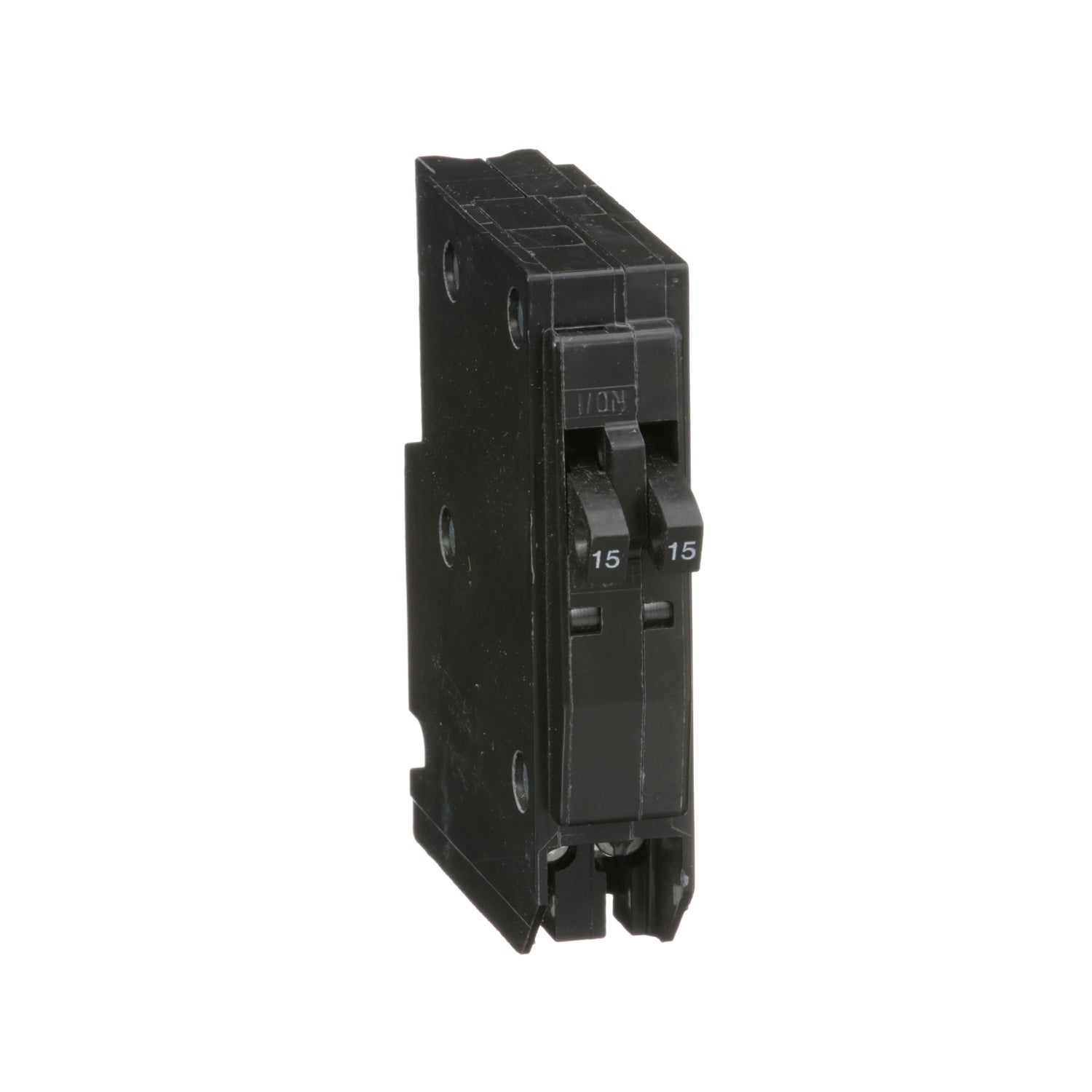

QOT1515 | Schneider Electric Tandem Mini Circuit Breaker
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOT1515
Description
The QOT1515 is a tandem mini circuit breaker from Eaton's QO series, featuring two 1-pole breakers rated at 15A each, designed for 120/240VAC applications. These circuit breakers provide essential overcurrent protection and switching capabilities for both AC and DC systems. Equipped with an over center, trip-free toggle mechanism, they ensure quick make and break actions with positive handle indication for operational clarity.
Technical Specifications
|
Part # |
QOT1515 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Product |
|
Range |
QO |
|
Current Rating |
15 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Tandem |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA 120/240 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium |
|
Tightening Torque |
24.78 lbf.in (2.8 N.m) |
|
Height |
3.23 in (82 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.32 lb(US) (0.145 kg) |
Information About QOT1515
The QOT1515 tandem mini circuit breaker from Eaton's QO series is designed to provide robust overcurrent protection and switching capabilities for both AC and DC systems. These thermal magnetic circuit breakers feature an over-center, trip-free toggle mechanism that ensures quick make and quick break actions, accompanied by positive handle indication for clear operational status. Additionally, they incorporate VisiTrip trip indication, offering a visual signal when the breaker has tripped and effectively interrupted the circuit.
Specifically, the QOT1515 model comprises two one-pole breakers each rated at 15A for operation at 120/240VAC. This configuration enables efficient protection and control within electrical systems. The unit boasts a substantial 10kA interrupt rating at 120/240VAC, ensuring it can safely handle short circuit conditions.
Ease of installation is facilitated by its plug-in mounting type, allowing straightforward integration into compatible panel setups. Eaton's QO circuit breakers, including the QOT1515, are UL Listed under UL File E84967, certifying their compliance with rigorous safety and performance standards. Furthermore, they hold CSA Certification under CSA Master Contract 153555, underscoring their suitability and reliability in diverse industrial and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
