QOT1520 | Schneider Electric Tandem Mini Circuit Breaker
- Regular price
- $62.00
- Sale price
- $62.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOT1520
Description

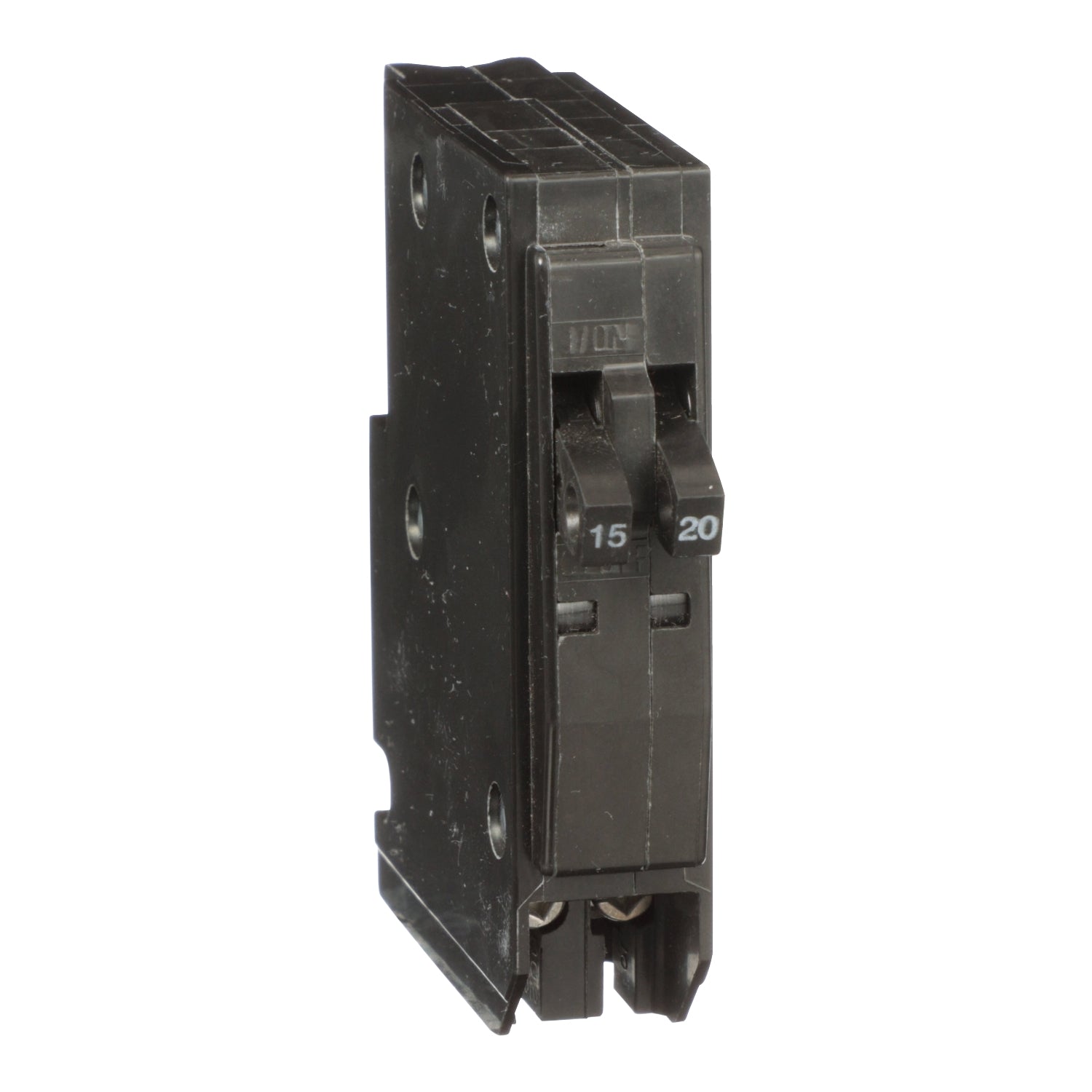

The QOT1520 is a Tandem Mini Circuit Breaker by Schneider Electric. It is part of the QO series, featuring 1 one-pole breaker rated at 15A and 1 one-pole breaker rated at 20A, suitable for 120/240VAC applications. The breaker provides a 10kA breaking capacity and is designed for plug-in mounting. QO and QOB series thermal magnetic circuit breakers offer overcurrent protection and switching for both AC and DC systems, utilizing an over-center, trip-free toggle mechanism with quick make, quick break action, and positive handle indication.
Technical Specifications
|
Part # |
QOT1520 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
QO |
|
Current Rating |
20 A, 15 A |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Tandem |
|
Ratings |
HACR rated |
|
Electrical Connection |
Pressure plate |
|
Interrupt Rating |
10 kA 120/240 V AC |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper |
|
|
AWG 12...AWG 8 aluminium |
|
Tightening Torque |
24.78 lbf.in (2.8 N.m) |
|
Height |
3.2 in (82 mm) |
|
Width |
0.7 in (19 mm) |
|
Depth |
2.9 in (74 mm) |
|
Net Weight |
0.311 lb(US) (0.141 kg) |
Information About QOT1520
The QOT1520 is a Tandem Mini Circuit Breaker manufactured by Schneider Electric, belonging to the QO series. This particular model comprises one pole rated at 15 amps and another pole rated at 20 amps, operating at a voltage of 120/240 VAC. The breaker has an interrupt rating of 10 kA and is designed for plug-in mounting, making it suitable for various electrical applications.
QO and QOB series thermal magnetic circuit breakers, including the QOT1520, are designed to provide overcurrent protection and switching for both AC and DC systems. These circuit breakers feature an over-center, trip-free toggle mechanism that ensures quick make and quick break action. The positive handle indication confirms the breaker status at a glance. Additionally, these breakers incorporate the VisiTrip feature, which provides a clear visual indication when the breaker has tripped and interrupted the circuit, facilitating quick troubleshooting.
The QOT1520, like other breakers in the QO series, offers a comprehensive range of features and factory-installed accessories. These include shunt trips, auxiliary switches, and alarm switches, enhancing the breaker's functionality and application versatility. The breaker is HACR rated, indicating suitability for heating, air conditioning, and refrigeration equipment.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
