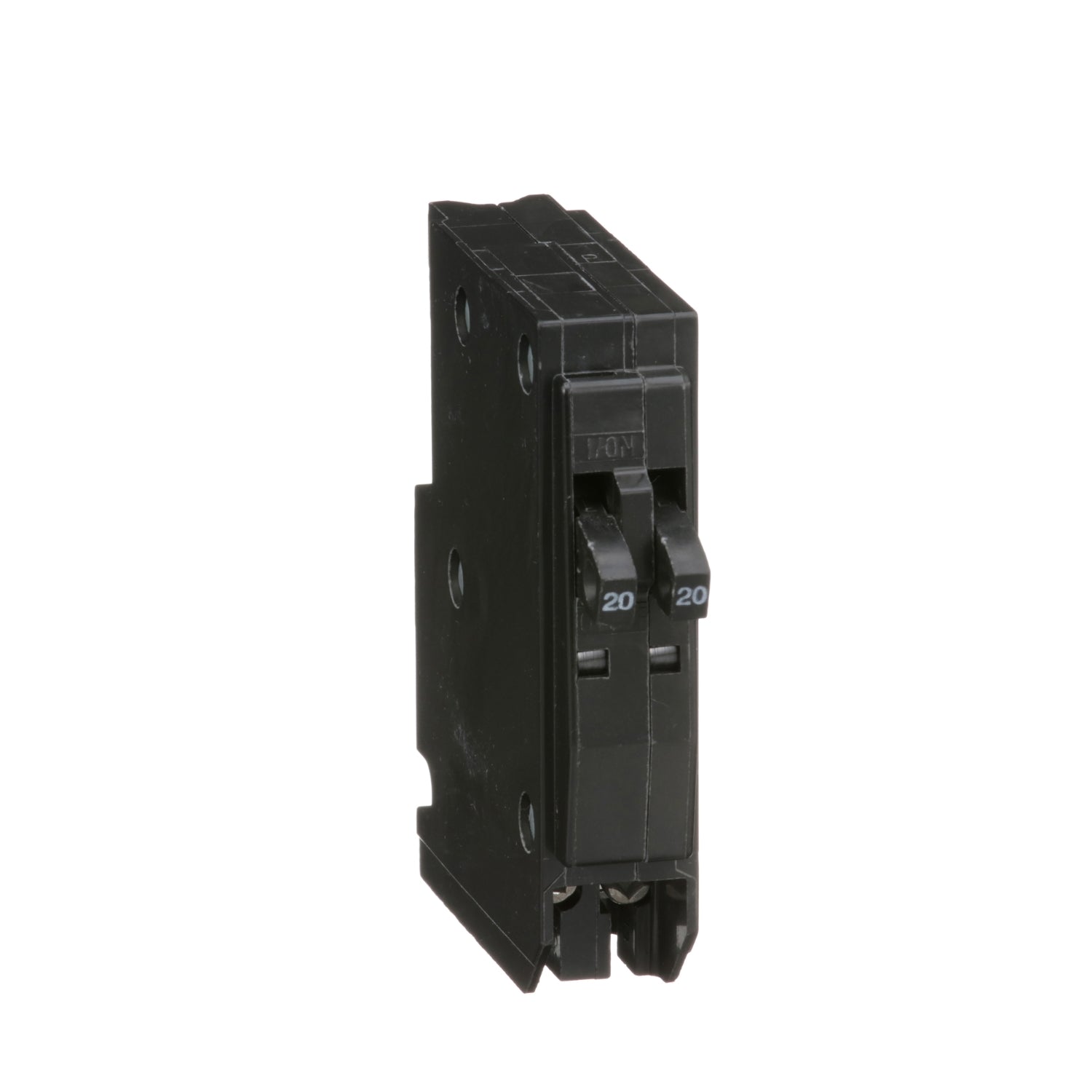

QOT2020 | Schneider Electric Tandem Mini Circuit Breaker
- Regular price
- $29.00
- Sale price
- $29.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOT2020
Description
The QOT2020 tandem mini circuit breaker by Schneider Electric is a 20 amp, 120/240V AC breaker with a toggle actuator. It features K-curve thermal magnetic trip technology, plug-in/plug-on mounting, and accommodates 12-8 AWG or 14-8 AWG wires. Ideal for residential panels, ensuring reliable circuit protection in a compact design.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QOT2020 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Actuator Type | Toggle |
| Amperage Rating | 20 A |
| Color | Black |
| Connection type | Pressure Plate |
| Dimensions | 2.91 in L x 0.75 in W x 3.22 in H, 2.91 in L x 0.75 in W x 3.5 in H |
| Frame | QOT |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Mounting type | Plug-In, Plug-On |
| Number of Poles | 1 |
| Phase | 1 |
| Temperature Rating (Degrees F) | 104, 40 deg C |
| Trip Type | K-Curve/Thermal Magnetic |
| Type | Tandem |
| Voltage Rating | 120/240 VAC |
| Wire Size | 12 to 8 AWG, 14 to 8 AWG |
Information About QOT2020
The QOT2020 tandem mini circuit breaker by Schneider Electric is a compact and versatile solution for residential electrical panels. Featuring a toggle actuator, it supports a 20 ampere current rating and operates at 120/240 volts AC. This breaker is designed for single-phase systems with a frequency rating of 50/60 Hz and an interrupt rating of 10 kA, ensuring reliable circuit protection.
It measures 2.91 inches in length, 0.75 inches in width, and comes in two height options: 3.22 inches or 3.5 inches, facilitating flexible installation in confined spaces. The QOT2020 utilizes a plug-in or plug-on mounting type, simplifying installation and maintenance tasks. It has a single pole configuration and is capable of accommodating wire sizes ranging from 12 to 8 AWG or 14 to 8 AWG, depending on the model variant.
Equipped with K-curve thermal magnetic trip technology, this breaker offers effective protection against overloads and short circuits. It operates reliably within a temperature range of 104°F (40°C), ensuring consistent performance under varying environmental conditions.
With its black color and pressure plate connection type, the Schneider Electric QOT2020 tandem mini circuit breaker combines compact design, robust performance, and ease of installation, making it ideal for residential applications where space and efficiency are paramount.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
