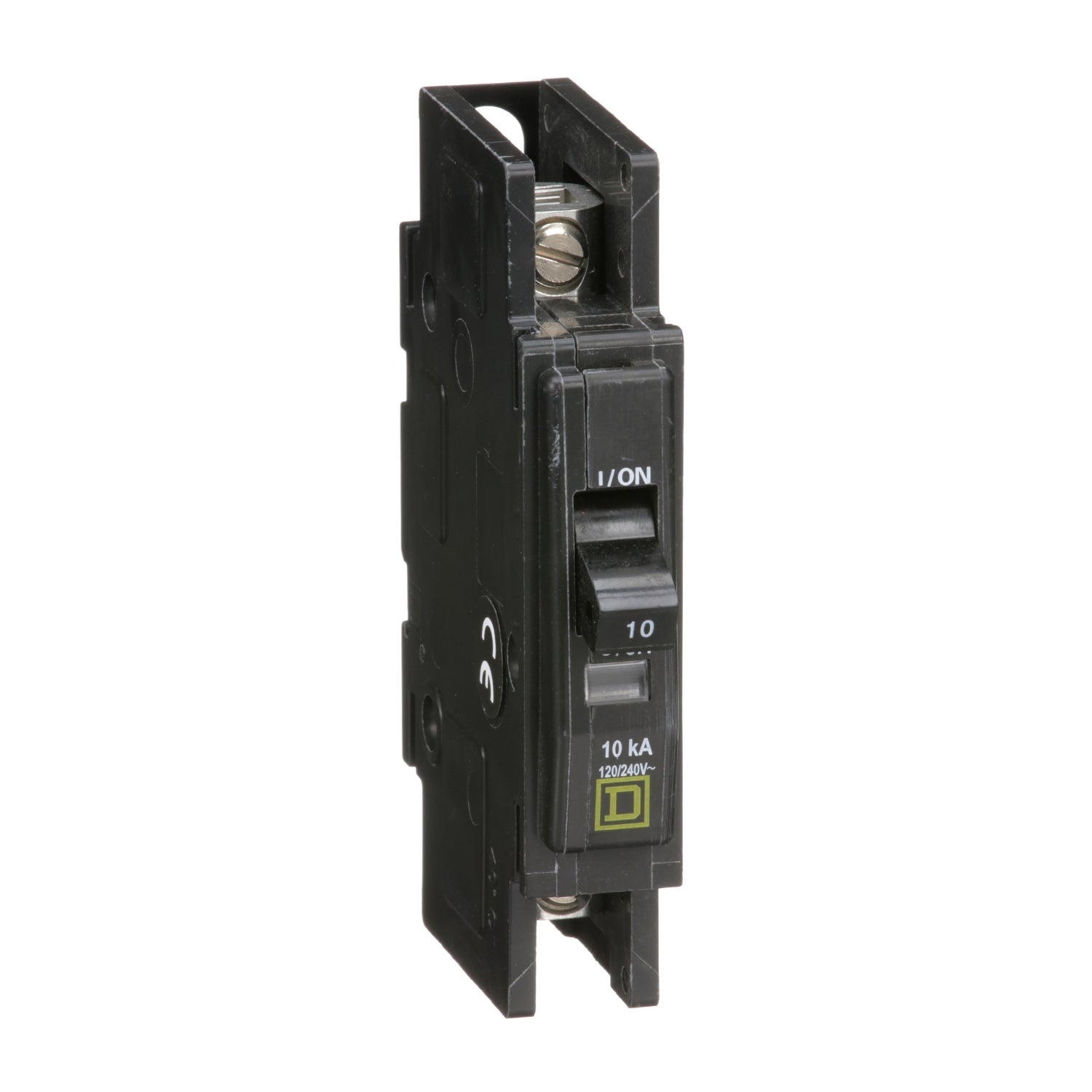

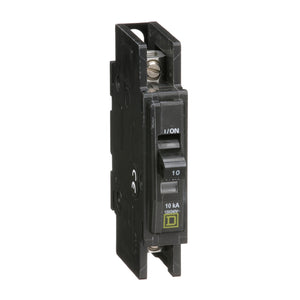

QOU110 | Schneider Electric Mini Circuit Breaker
- Regular price
- $25.00
- Sale price
- $25.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOU110
Description
The Schneider Electric QOU110 is a 10A, 120V single-pole molded case circuit breaker from the QOU Series, designed for dependable protection in single-phase electrical systems. This thermal magnetic breaker provides LI (Long-Time and Instantaneous) trip functions with a 10 kA interrupting capacity at 120V. Its bolt-on design includes field-reversible lugs, allowing either forward or reverse connection for flexible installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QOU110 |
| Subcategory | Molded Case Circuit Breaker |
| Family | QOU Series |
| Type | QOU |
| Voltage | 120 V |
| Amperage | 10 A |
| Phase | 1 |
| Poles | 1 |
| Protection | Thermal Magnetic |
| Trip Functions | LI – Long-Time & Instantaneous |
| AIC Rating | 10 kA @ 120 V |
| Connection | Bolt-On |
| Temperature Rating | 40 °C |
| Lug Type | Field-reversible lugs (forward or reverse connection) |
Information About QOU110
The QOU110 is part of the Schneider Electric QOU Series, known for compact and versatile breakers used across residential, commercial, and light industrial applications. Built with a molded case construction, the breaker offers durability while maintaining a slim profile suitable for tight panel installations. The thermal magnetic trip system delivers overload protection through a bimetallic element and instantaneous short-circuit protection via a magnetic mechanism. Designed with field-reversible lugs, the QOU110 supports flexible wiring orientation, making it easier to integrate into various distribution setups. Its 1-pole configuration and 120V rating make it ideal for branch-circuit protection in single-phase systems.
Key Features:
- Thermal magnetic trip: Reliable overload and short-circuit protection.
- LI trip functions: Long-Time and Instantaneous response for full-spectrum protection.
- 10A, 120V rating: Suitable for light-duty branch circuits in single-phase systems.
- 10 kA interrupt rating: Handles moderate fault currents safely.
- Bolt-on mounting: Provides a secure mechanical and electrical connection.
- Field-reversible lugs: Supports forward or reverse installation for enhanced flexibility.
- Compact single-pole design: Fits efficiently into a variety of panel configurations.
- Molded case construction: Ensures durability in demanding environments.
The QOU110 delivers the reliability and precision required for dependable branch-circuit protection in residential, commercial, and light industrial systems.
