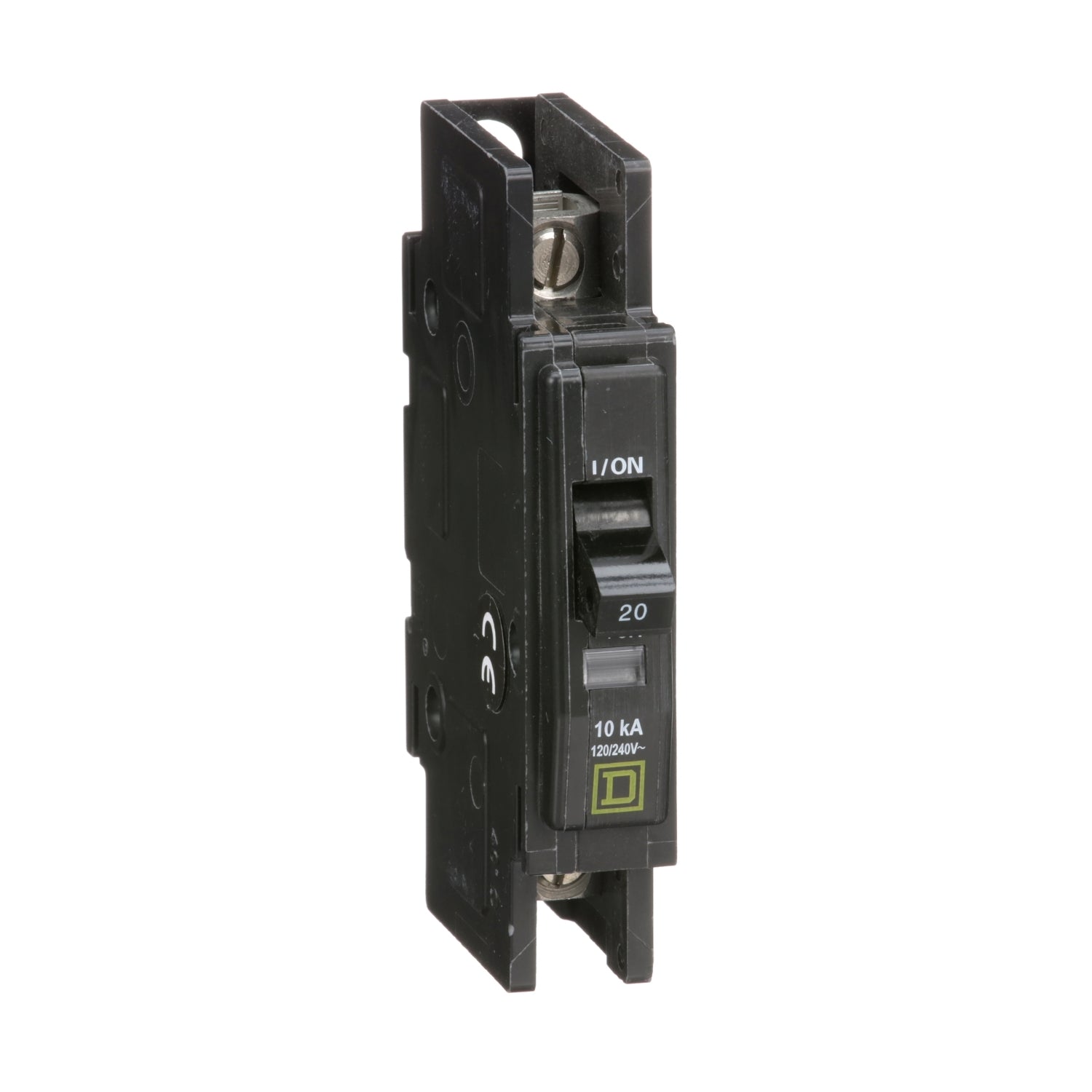

QOU120 | Schneider Electric 20A 120/240V Type QOU miniature circuit breaker with thermal-magnetic trip
- Regular price
- $12.00
- Sale price
- $12.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOU120
Description
The Schneider Electric QOU120 is a compact miniature circuit breaker designed for dependable protection in 120/240 VAC systems. The part number QOU120 features a 20 A rating and a thermal-magnetic trip unit to safeguard circuits against overloads and short-circuit conditions. Its unit-mount design allows for DIN rail or flush installation, making it adaptable for a wide range of electrical applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QOU120 |
| Subcategory | Molded Case Circuit Breaker |
| Type | Standard Unit Mount, Type QOU |
| Voltage Rating | 120/240 VAC |
| Amperage Rating | 20 A |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Actuator Type | Toggle |
| Number of Poles | 1 |
| Phase | 1 |
| Connection Type | Box Lug |
| Wire Size | 14 to 2 AWG |
| Mounting Type | DIN Rail / Flush |
| Temperature Rating | 104 °F |
| Dimensions | 2.95 in L × 0.75 in W × 4.05 in H |
| Color | Black |
| Frame | QOU |
| Application | Miniature circuit protection for residential and commercial systems |
Information About QOU120
The QOU120 is part of the Square D Type QOU Standard Unit Mount family, known for its compact form factor and reliable performance in residential, commercial, and light industrial systems. Built with a molded case design and a manual toggle actuator, the breaker provides durable construction suitable for routine switching and protection tasks. Its box-lug terminals and standardized mounting options ensure smooth integration into DIN rail or flush-mounted panel configurations. Frequently used in load centers and control panels, the QOU120 leverages thermal-magnetic trip technology for consistent protection across varying circuit conditions.
Key Features:
- 20 A capacity: Designed for standard branch-circuit protection.
- Thermal-magnetic trip: Provides dual protection against overloads and short circuits.
- 120/240 VAC rating: Supports single-phase electrical systems.
- Toggle actuator: Allows straightforward manual operation.
- Box lug terminals: Securely accepts 14–2 AWG conductors.
- DIN rail or flush mount: Supports flexible installation configurations.
- 10 kA interrupt rating: Ensures safe fault-clearing capability.
- Compact design: Slim 0.75-inch width optimizes panel space.
The QOU120 delivers the reliability and precision required for dependable miniature circuit protection.
