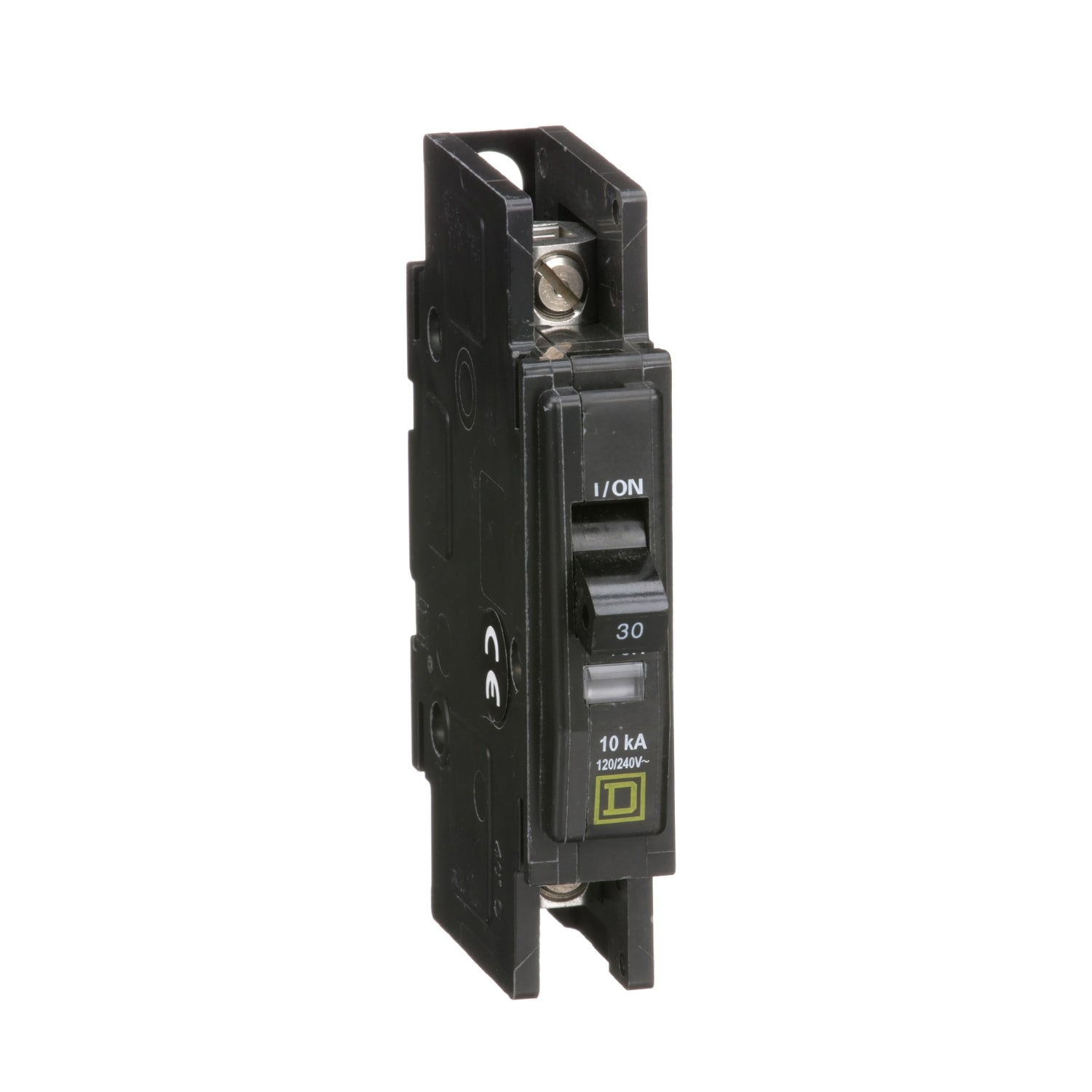

QOU130 | Schneider Electric Mini Circuit Breaker
- Regular price
- $90.00
- Sale price
- $90.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOU130
Description
The QOU130 is a Mini Circuit Breaker from the QOU series by Square D, designed specifically for OEM applications. This miniature circuit breaker is intended for both AC and DC electrical systems, providing reliable overcurrent protection and circuit switching capabilities. It features a 30A rating at 120/240VAC and has a 10kA interrupting capacity, ensuring efficient operation in various electrical applications.
The QOU130 breaker allows manual opening of circuits, providing a convenient means for maintenance and control. It is compactly designed to save space and is suitable for use in a wide range of industrial and commercial environments where robust circuit protection is essential.
Technical Specifications
|
Part # |
QOU130 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Miniature circuit-breaker |
|
Range of Product |
QOU |
|
Circuit Breaker Type |
Standard |
|
Circuit Breaker Application |
HACR rated |
|
Line Rated Current |
30 A |
|
Mounting Mode |
Unit mount |
|
AWG Gauge |
AWG 14...AWG 2 aluminium/copper |
|
Height |
4.05 in (102.87 mm) |
|
Width |
0.75 in (19.05 mm) |
|
Depth |
2.95 in (74.93 mm) |
|
Tightening Torque |
45 lbf.in (5.08 N.m) |
Information About QOU130
The QOU130 Miniature Circuit Breaker, part of the QOU series, is designed for use in OEM applications, offering reliable overcurrent protection and circuit switching capabilities for both AC and DC electrical systems. Operating as a single-pole unit, it is rated for 30A at 120/240VAC with a maximum interrupting capacity of 10kA.
QOU Miniature Circuit Breakers are pivotal in providing a manual means to open circuits, crucial for ensuring safety and functionality in various electrical installations. They are engineered to meet stringent performance standards and are well-suited for diverse industrial and commercial environments where compact size and robust performance are essential.
These breakers are designed with a focus on durability and ease of installation, featuring a unit mount configuration. The AWG gauge compatibility ranges from AWG 14 to AWG 2 for both aluminum and copper wiring, accommodating various installation requirements.
Physically, the QOU130 measures 4.05 inches in height, 0.75 inches in width, and 2.95 inches in depth, providing a compact footprint suitable for space-constrained applications. The tightening torque for installation is specified at 45 lbf.in (5.08 N.m) for AWG 14 to AWG 2 conductors.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
