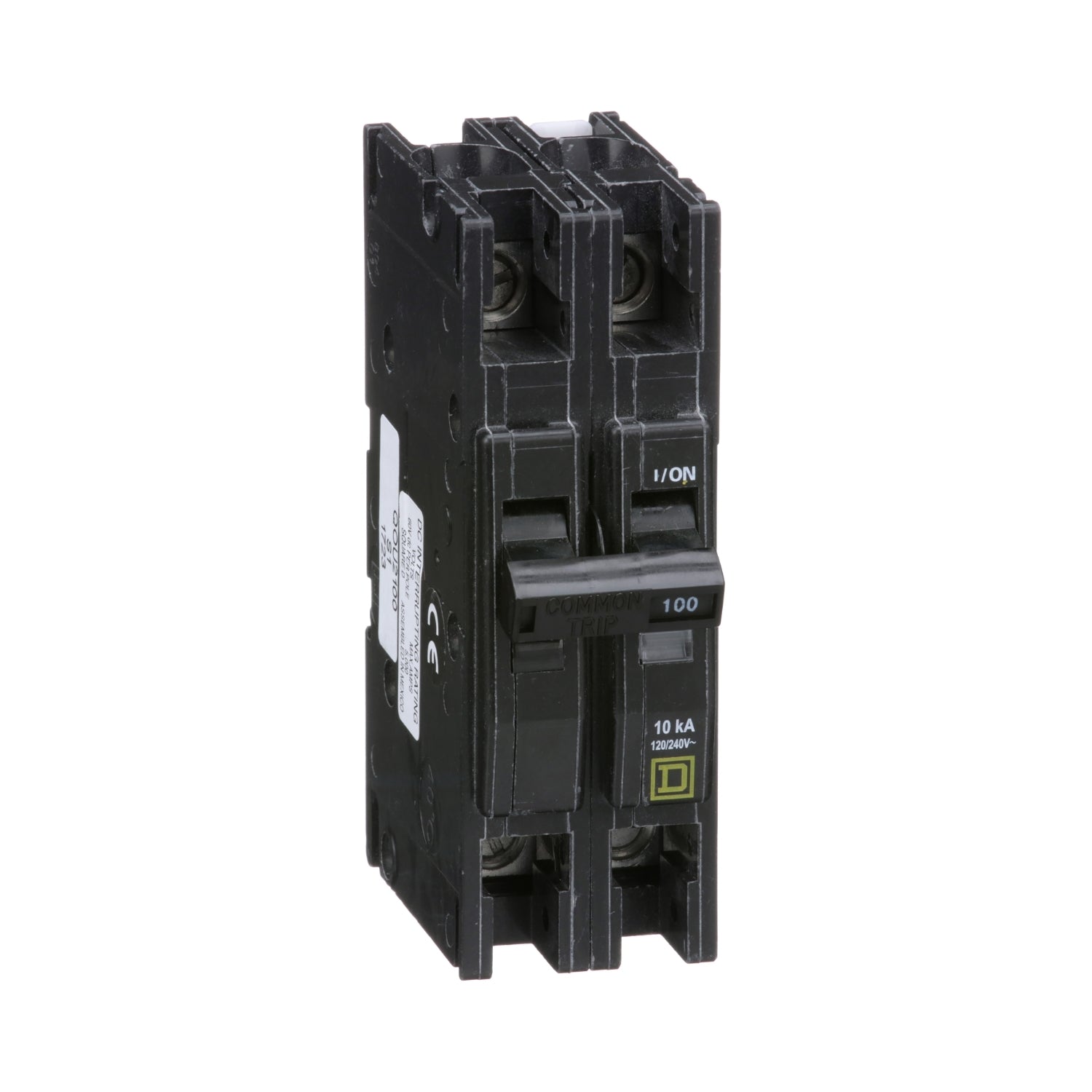

QOU2100 | Schneider Electric Mini Circuit Breaker
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOU2100
Description
The QOU2100 is a miniature molded case circuit breaker from the QOU range, designed for use in residential and commercial applications. This 2-pole circuit breaker is rated at 100A with a voltage rating of 120/240 VAC and a breaking capacity of 10kA. QOU circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. They feature internally magnetic strips for manual circuit opening. A range of accessories is available for these breakers, providing versatility in mounting.
Technical Specifications
|
Part # |
QOU2100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
100 A |
|
Mounting Mode |
Unit mount |
|
AWG gauge |
AWG 12...AWG 2/0 aluminium/copper |
|
Height |
4.45 in (113.03 mm) |
|
Width |
1.5 in (38.10 mm) |
|
Depth |
2.95 in (74.93 mm) |
|
Tightening torque |
45 lbf.in (5.08 N.m) (AWG 12...AWG 2/0) |
Information About QOU2100
The QOU2100 is a miniature molded case circuit breaker from the QOU series, designed by Schneider Electric. It is rated for a current of 100A and operates on a 120/240 VAC electrical system. This circuit breaker is specifically intended for use in residential and commercial applications, providing reliable overcurrent protection and switching capabilities for both AC and DC electrical systems.
The QOU2100 features a 2-pole configuration, enhancing its suitability for diverse electrical circuits. It operates with an interrupting capacity of 10kA, ensuring it can handle substantial fault currents without compromising the safety of the electrical system. The unit is designed for unit mount installation, which simplifies the mounting process and ensures secure and stable placement within the electrical panel.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
