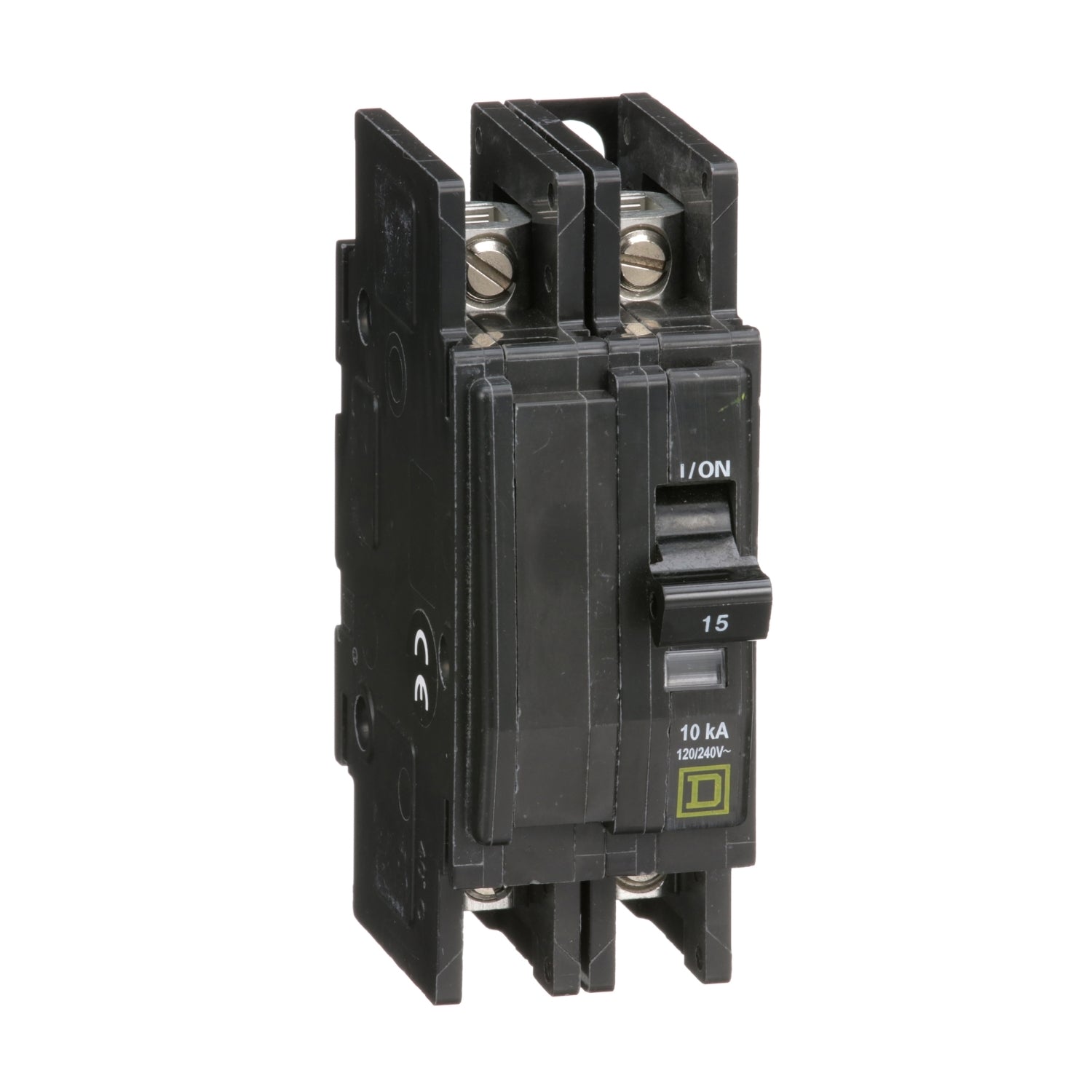

QOU215 | Schneider Electric Mini Circuit Breaker
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOU215
Description
The QOU215 Mini Circuit Breaker, part of the QO™ and QOU series, is specifically designed for OEM applications. It serves as a miniature circuit breaker capable of providing overcurrent protection and circuit switching for both AC and DC electrical systems. The QOU215 enables manual circuit interruption, offering a reliable solution for controlling electrical circuits in various industrial and commercial settings.
Technical Specifications
|
Part # |
QOU215 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Product |
|
Product or Component Type |
Miniature circuit-breaker |
|
Range of Product |
QOU |
|
Circuit Breaker Type |
Standard |
|
Circuit Breaker Application |
HACR rated |
|
Line Rated Current |
15 A |
|
Electrical Connection |
Slotted box lugs, line side; Slotted box lugs, load side |
|
[Ue] Rated Operational Voltage |
120/240 V AC; 120 V AC; 48 V DC |
|
Mounting Mode |
Unit mount |
|
AWG Gauge |
AWG 14...AWG 2 aluminium/copper |
|
Height |
4.05 in (102.87 mm) |
|
Width |
1.5 in (38.10 mm) |
|
Depth |
2.95 in (74.93 mm) |
|
Tightening Torque |
45 lbf.in (5.08 N.m) (AWG 14...AWG 2) |
Information About QOU215
The QOU215 Mini Circuit Breaker, part of the QO™ and QOU series, is specifically designed for Original Equipment Manufacturer (OEM) applications. It serves as a miniature circuit breaker capable of providing essential functions such as overcurrent protection and circuit switching for both AC and DC electrical systems. The primary role of the QOU215 and similar breakers is to safeguard electrical circuits from excessive current that could lead to equipment damage or safety hazards.
Miniature circuit breakers like the QOU215 are integral components in electrical installations where precise current control and protection are essential. They are designed to interrupt electrical flow automatically in the event of overcurrent conditions, preventing overheating and potential fire hazards. Additionally, these breakers feature manual operation capability, allowing users to manually open circuits when necessary for maintenance or safety purposes.
The QOU215 breaker is rated for 15 amps and operates effectively at both 120V and 240V AC voltages, accommodating typical residential and commercial electrical systems. With a breaking capacity of 10kA, it can safely interrupt short circuit currents up to this limit, ensuring reliable performance under varying load conditions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
