QOU220 | Schneider Electric Mini Circuit Breaker
QOU220 | Schneider Electric Mini Circuit Breaker
Part #: QOU220 Manufactured by: Schneider Electric

QOU220 | Schneider Electric Mini Circuit Breaker

Regular price
$72.00
Sale price
$72.00
Regular price
Never Used Surplus
1 in Stock
Product Overview
The QOU220 is a Mini Circuit Breaker belonging to the QOU series, designed primarily for OEM applications. These unit moun...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: QOU220
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
QOU220 | Schneider Electric Mini Circuit Breaker
    QOU220 | Schneider Electric Mini Circuit Breaker
QOU220 | Schneider Electric Mini Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: QOU220

Description / Specifications

Description

The QOU220 is a Mini Circuit Breaker from the QOU series, designed for OEM applications. These unit mount miniature circuit breakers (cable-in/cable-out) are available in one, two, or three pole configurations, offering overcurrent protection and switching capabilities for both AC and DC systems.

Featuring an over center, trip-free toggle mechanism, QOU breakers ensure quick-make, quick-break action with positive handle indication. Additionally, they incorporate VisiTrip trip indication, providing a visual cue upon circuit interruption. These miniature circuit breakers can be DIN rail mounted, surface mounted, or flush mounted using mounting feet.



Technical Specifications

Part #

QOU220

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

  Subcategory

Product or Component Type

Range of Product

QOU

Circuit breaker type

Standard

Circuit breaker application

HACR rated

Line Rated Current

20 A

Mounting Mode

Unit mount

AWG gauge

AWG 14...AWG 2 aluminium/copper

Height

4.05 in (102.87 mm)

Width

1.5 in (38.10 mm)

Depth

2.95 in (74.93 mm)

Tightening torque

45 lbf.in (5.08 N.m) (AWG 14...AWG 2)



Information About QOU220


The QOU220 is a Mini Circuit Breaker from the QOU series, designed for OEM applications. These unit mount miniature circuit breakers (cable-in/cable-out) are available in one, two, or three pole configurations, offering overcurrent protection and switching capabilities for both AC and DC systems.

Featuring an over center, trip-free toggle mechanism, QOU breakers ensure quick-make, quick-break action with positive handle indication. Additionally, they incorporate VisiTrip trip indication, providing a visual cue upon circuit interruption. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted, or flush mounted using mounting feet.

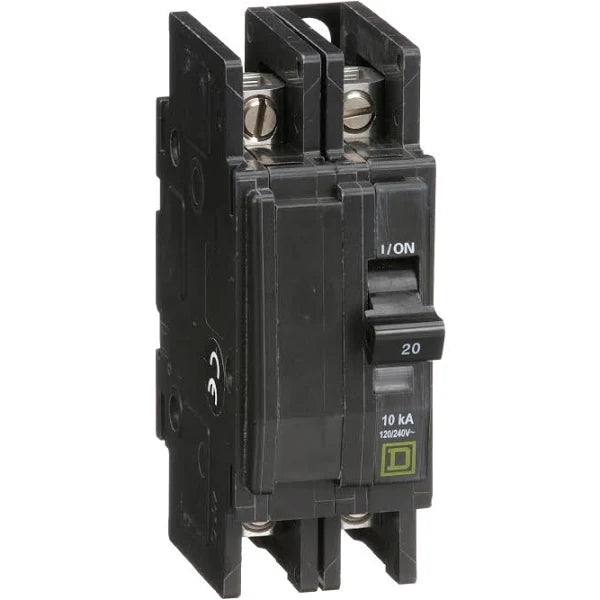

The QOU220 is a two-pole circuit breaker rated at 20A, 240VAC, with a breaking capacity of 10kA. It is compatible with a range of accessories. The slotted box lugs accommodate wire sizes ranging from 14 AWG to 2 AWG for both copper and aluminum wires.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The QOU220 is a Mini Circuit Breaker from the QOU series, designed for OEM applications. These unit mount miniature circuit breakers (cable-in/cable-out) are available in one, two, or three pole configurations, offering overcurrent protection and switching capabilities for both AC and DC systems.

Featuring an over center, trip-free toggle mechanism, QOU breakers ensure quick-make, quick-break action with positive handle indication. Additionally, they incorporate VisiTrip trip indication, providing a visual cue upon circuit interruption. These miniature circuit breakers can be DIN rail mounted, surface mounted, or flush mounted using mounting feet.



Technical Specifications

Part #

QOU220

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

  Subcategory

Product or Component Type

Range of Product

QOU

Circuit breaker type

Standard

Circuit breaker application

HACR rated

Line Rated Current

20 A

Mounting Mode

Unit mount

AWG gauge

AWG 14...AWG 2 aluminium/copper

Height

4.05 in (102.87 mm)

Width

1.5 in (38.10 mm)

Depth

2.95 in (74.93 mm)

Tightening torque

45 lbf.in (5.08 N.m) (AWG 14...AWG 2)



Information About QOU220


The QOU220 is a Mini Circuit Breaker from the QOU series, designed for OEM applications. These unit mount miniature circuit breakers (cable-in/cable-out) are available in one, two, or three pole configurations, offering overcurrent protection and switching capabilities for both AC and DC systems.

Featuring an over center, trip-free toggle mechanism, QOU breakers ensure quick-make, quick-break action with positive handle indication. Additionally, they incorporate VisiTrip trip indication, providing a visual cue upon circuit interruption. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted, or flush mounted using mounting feet.

The QOU220 is a two-pole circuit breaker rated at 20A, 240VAC, with a breaking capacity of 10kA. It is compatible with a range of accessories. The slotted box lugs accommodate wire sizes ranging from 14 AWG to 2 AWG for both copper and aluminum wires.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
