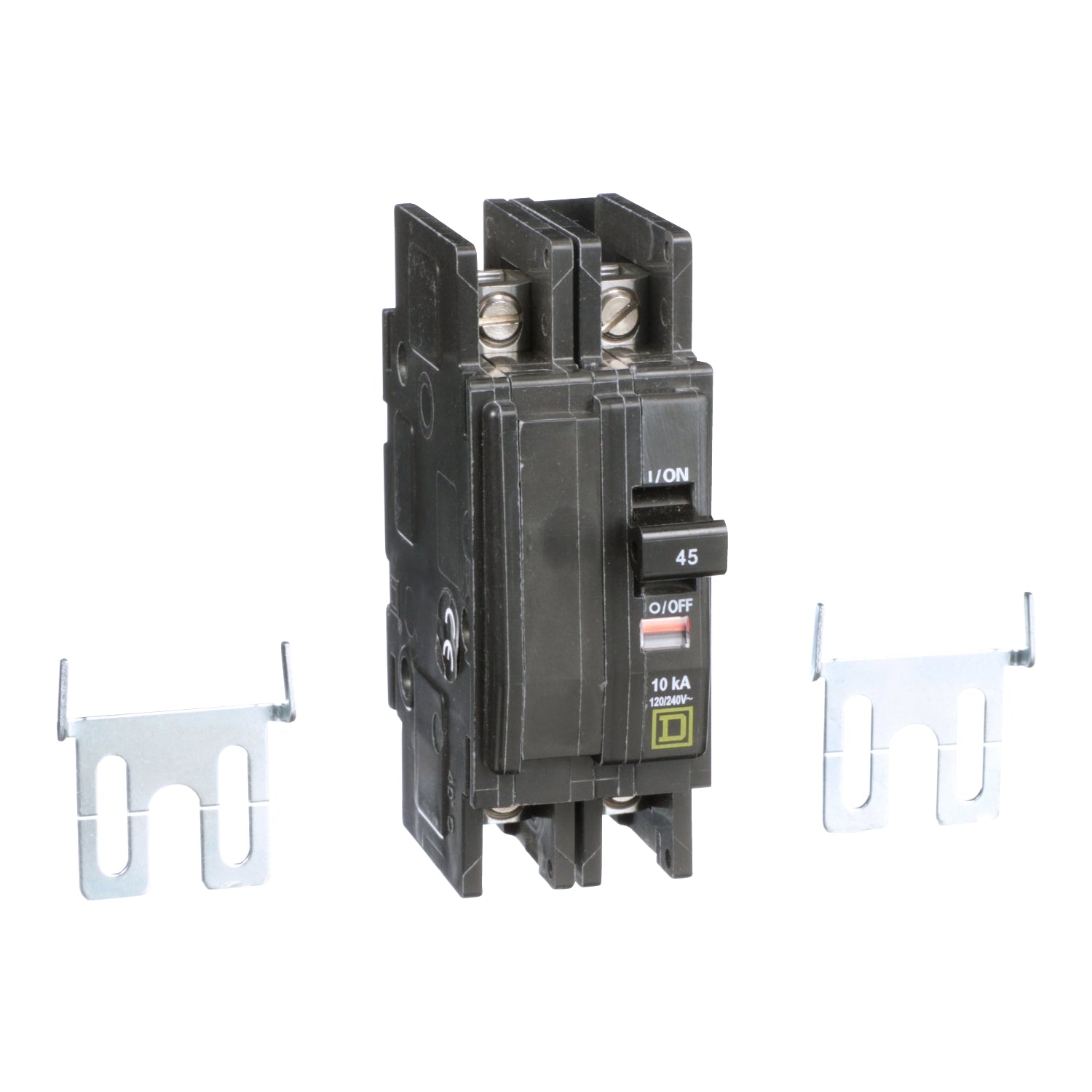

QOU245 | Schneider Electric Mini Circuit Breaker, QOU, 45A
- Regular price
- $65.00
- Sale price
- $65.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QOU245
Description
The QOU245 is a Mini Circuit Breaker (MCB) manufactured by QOU, designed for use in both residential and commercial settings. These miniature molded case circuit breakers are thermal magnetic units, offering automatic circuit interruption in the event of overload or short circuit conditions. Equipped with VisiTrip trip indication, they provide a visual alert when tripped. The QOU breakers are versatile in mounting options, allowing for flush mount, surface mount, or DIN rail mount installations. This 2-pole QOU MCB has a rating of 45A at 120/240VAC, with a breaking capacity of 10kA
Technical Specifications
|
Part # |
QOU245 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Miniature circuit-breaker |
|
Range of Product |
QOU |
|
Circuit breaker type |
Standard |
|
Circuit breaker application |
HACR rated |
|
Line Rated Current |
45 A |
|
Mounting Mode |
Unit mount |
|
AWG gauge |
AWG 14...AWG 2 aluminium/copper |
|
Height |
4.05 in (102.87 mm) |
|
Width |
1.5 in (38.10 mm) |
|
Depth |
2.95 in (74.93 mm) |
|
Tightening torque |
45 lbf.in (5.08 N.m) (AWG 14...AWG 2) |
Information About QOU245
The QOU245 is a miniature molded case circuit breaker designed for use in residential and commercial applications. These circuit breakers are of the unit mount thermal magnetic type, designed to automatically open a circuit under overload or short circuit conditions. They are equipped with VisiTrip trip indication, providing a visual signal when the circuit breaker has tripped.
These circuit breakers can be flush mounted, surface mounted, or DIN rail mounted, offering flexibility in installation options. The QOU245 is a 2-pole miniature circuit breaker rated for 45 A at 120/240 VAC. It provides a breaking capacity of 10 kA, ensuring efficient protection against electrical faults.
Featuring lugs on both cable in and cable out connectors, the QOU245 offers ease of connectivity during installation. It complies with rigorous testing and certification standards, including UL Standard 489 and CSA Standard C22.2 No. 5 02 for circuit breakers. The QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified, ensuring compliance with safety and performance regulations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
