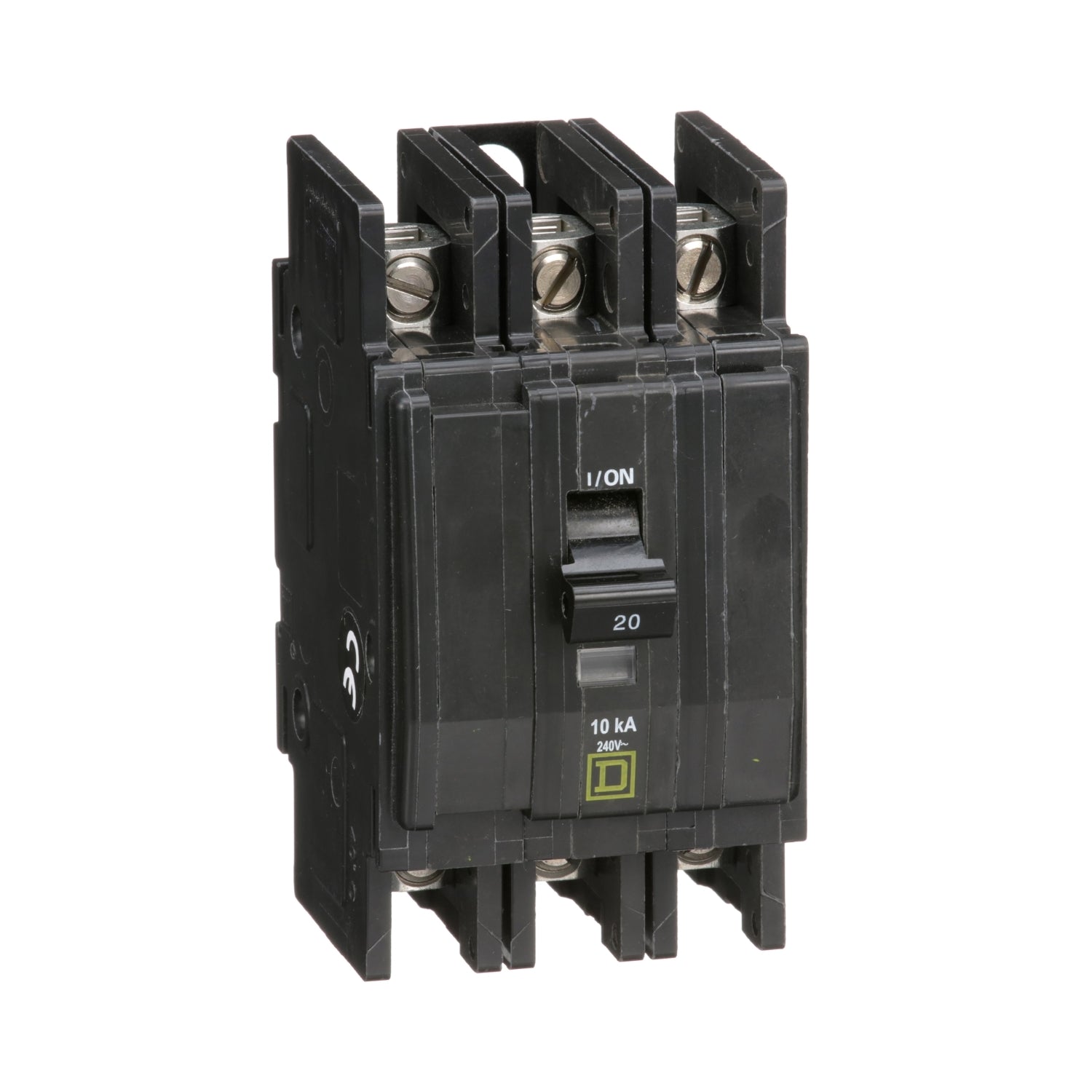

QOU320 | Schneider Electric QOU Series 3-Pole 20A Thermal Magnetic Circuit Breaker Bolt-On
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QOU320
Description
The Schneider Electric QOU320 is a three-pole molded case circuit breaker designed for three-phase electrical distribution systems operating at 240 volts. It provides thermal magnetic protection with long-time and instantaneous trip functions for dependable branch circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QOU320 |
| Subcategory | Molded Case Circuit Breaker |
| Family | QOU Series |
| Type | QOU |
| Rated Voltage | 240 V |
| Rated Current | 20 A |
| Number of Poles | 3 |
| Phase | Three-phase |
| Interrupt Rating | 10 kA at 240 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | Bolt-On |
| Operating Temperature | 40 °C |
Information About QOU320
The QOU320 is part of Schneider Electric’s QOU Series circuit breakers, engineered for use in commercial and industrial panelboard applications requiring compact design and reliable protection. It features a molded case construction with a fixed thermal magnetic trip unit that ensures consistent overload and short-circuit response. The three-pole configuration supports balanced protection across all phases in three-phase systems. This breaker is commonly installed in panelboards where bolt-on mounting and standard interrupting capacity are specified.
Key Features
- Three-pole molded case design: Provides coordinated disconnection and protection across all phases in three-phase circuits.
- 20 amp continuous current rating: Suitable for branch circuit applications with moderate load requirements.
- Thermal magnetic protection system: Combines inverse-time overload protection with instantaneous short-circuit response.
- LI trip functionality: Ensures dependable protection against sustained overcurrent and sudden fault conditions.
- Standard interrupting capacity: Rated at 10 kA at 240 V for typical commercial and industrial fault levels.
- Bolt-on mounting configuration: Delivers a secure mechanical and electrical connection to panelboard bus assemblies.
- QOU Series compatibility: Designed for use in Schneider Electric QOU panelboards and distribution equipment.
The QOU320 delivers the reliability and precision required for protecting three-phase branch circuits in commercial and industrial electrical distribution systems.
