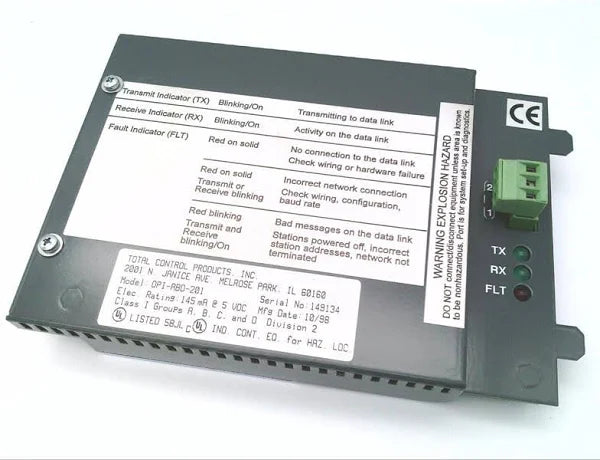

QPI-ABD-201 | GE Fanuc QuickPanel A-B Data Highway Plus Communication Module
- Regular price
- $622.00
- Sale price
- $622.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QPI-ABD-201
Description
The GE Fanuc QPI-ABD-201 is a communication module designed to interface QuickPanel operator terminals with Allen-Bradley Data Highway Plus networks. Engineered for seamless data exchange, it enhances integration between HMIs and PLCs in industrial automation environments. This module supports reliable communication, ensuring efficient control system performance in complex applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | HMI / MMI / OIT |
| Part Number | QPI-ABD-201 |
| Subcategory | OIT Boards/Module |
| Network Support | Allen-Bradley Data Highway Plus |
| Compatible Devices | GE Fanuc QuickPanel HMIs |
| Panel Size Support | 5"–12.1" QuickPanel models |
| Enclosure Rating | NEMA 4/12 (with host panel) |
| Certifications | UL, CE (typical for QuickPanel series) |
| Installation Type | Plug-in communication module |
| Application | HMI-to-PLC network integration |
| Operating Environment | Industrial, panel-mounted |
| Power Source | Supplied by host QuickPanel |
Information About QPI-ABD-201
The QPI-ABD-201 is part of the GE Fanuc QuickPanel family, designed as an optional expansion module that enables QuickPanel touchscreens to communicate on A-B Data Highway Plus networks. Serving as a dedicated interface, it allows the QuickPanel HMI to connect directly with Allen-Bradley PLCs, ensuring smooth data transfer and system coordination. The module complements a broad ecosystem of QuickPanel communication options, accommodating diverse industrial protocols such as Modbus Plus, Profibus, DeviceNet, and Genius I/O, each requiring its own dedicated module. Constructed to NEMA 4/12 standards, the QPI-ABD-201 integrates easily into industrial environments, supporting the rugged requirements of GE’s HMI product line.
Key Features:
- DH+ Network Interface: Enables QuickPanel HMIs to connect with Allen-Bradley Data Highway Plus PLC networks.
- QuickPanel Compatibility: Works with multiple screen sizes ranging from 5" to 12.1".
- Rugged Industrial Design: Built to NEMA 4/12 standards for harsh environments.
- Dedicated Communication Module: Ensures reliable, protocol-specific data transfer.
- Broad PLC Ecosystem Support: Complements other QuickPanel modules for various industrial network types.
- Seamless Integration: Enhances HMI-to-PLC connectivity for efficient automation workflows.
- GE Fanuc Quality: Designed to meet UL and CE approval standards.
- Simple Installation: Modular add-on format supports straightforward integration into existing QuickPanel units.
The QPI-ABD-201 delivers the reliability and precision required for communication between QuickPanel HMIs and Allen-Bradley DH+ networks.
