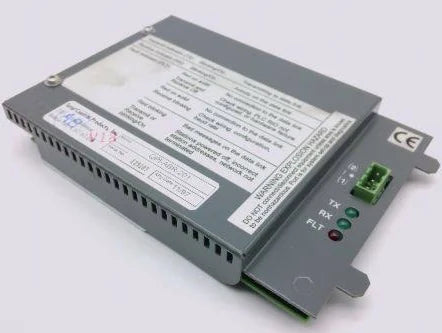

QPI-ABR-201 | GE Fanuc QuickPanel A-B Remote I/O Adapter Module For HMI Integration

Description

The GE Fanuc QPI-ABR-201 is a QuickPanel interface module designed to connect compatible HMI units to Allen-Bradley Remote I/O networks. This part number supports AC input ranges of 100–120 V or 200–240 V at 50/60 Hz, allowing flexible installation in diverse control environments. It serves as a communication bridge that enables coordinated data exchange between QuickPanel HMIs and A-B Remote I/O systems.

Technical Specifications

Information About QPI-ABR-201

The QPI-ABR-201 is part of the QuickPanel accessory module lineup developed by GE Fanuc to expand connectivity options for industrial operator interfaces. This module provides Remote I/O communication specifically for Allen-Bradley systems, allowing QuickPanel HMI units to function as visualization and control interfaces within A-B automation networks. The module is compatible with select 10.5-inch QPI and 12.1-inch QPL QuickPanel models, integrating directly into their rear expansion slot. Typical usage includes legacy industrial automation systems that require a dedicated RIO interface for communication with PLCs, remote racks, and distributed control points.

Key Features:

• A-B Remote I/O Connectivity: Enables QuickPanel HMIs to communicate with Allen-Bradley RIO networks.
• QuickPanel Expansion Module: Designed for use with 10.5-inch QPI and 12.1-inch QPL HMI units.
• Wide AC Input Range: Operates on 100–120 VAC or 200–240 VAC at 50/60 Hz.
• Legacy System Compatibility: Supports integration within older GE Fanuc and Allen-Bradley automation architectures.
• Dedicated Communication Interface: Provides stable data transfer between HMI and PLC-based control systems.
• Industrial Application Ready: Suitable for retrofit projects and maintenance of existing QuickPanel installations.

The QPI-ABR-201 delivers the reliability and precision required for interfacing QuickPanel HMIs with Allen-Bradley Remote I/O networks.
