QPI2D100L2P | GE Fanuc QuickPanel HMI
- Regular price
- $3,529.00
- Sale price
- $3,529.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QPI2D100L2P
Description
Technical Specifications
|
Manufacturer |
GE Fanuc Total Control |
|
Series |
QuickPanel |
|
Part Number |
QPI2D100L2P |
|
Screen Size |
10.4" |
|
LCD Type |
Monochrome Display |
|
Input Voltage |
24 VDC |
|
NEMA Rating |
Type 4X/12 IP65 |
|
Software Version |
QuickDesigner Version 3.7 |
Information About QPI2D100L2P

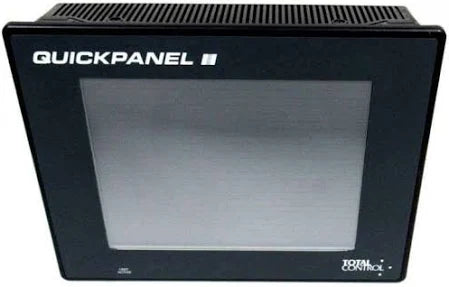

The QPI2D100L2P is a touchscreen human-machine interface (HMI) module offered by General Electric as part of its QuickPanel series. These panels serve as graphical information displays for industrial applications, ranging in size from 5 inches to 12 inches. The QPI2D100L2P specifically features a 10.5-inch display size.
Physically, the QPI2D100L2P is designed to be lightweight and durable. It measures 9.57 inches (243 mm) in height, 12.48 inches (317 mm) in width, and has a depth of 3.05 inches (77 mm), weighing approximately 6.6 pounds (2.99 kilograms).
Internally, the module incorporates a natural air convection cooling system to regulate temperature. It includes several external interface ports, notably a serial port (SI/O) and a download port. The unit operates with a nominal voltage ranging from 20.4 to 27.6 volts DC (VDC) at frequencies of 50 to 60 Hertz. Under maximum load, it consumes up to 50 volt-amperes. The module offers power failure immunity for up to 20 milliseconds following an outage.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
