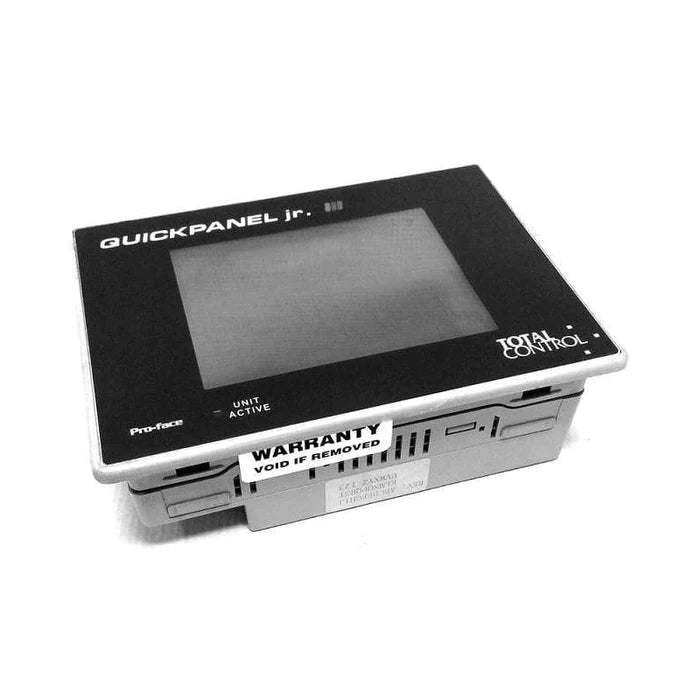

Part #: QPJ-2D100-L2P Manufactured by: Ge Fanuc

QPJ-2D100-L2P | Ge Fanuc Display

Regular price
$3,899.00
Sale price
$3,899.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
GE FANUC QPJ-2D100-L2P TOTAL CONTROL OPERATOR INTERFACE 4.7" INCH TOUCHSCREEN MONOCHROME DISPLAY, TYPE 4X/12, IP65, 20.4-2...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: QPJ-2D100-L2P
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Ge Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
QPJ-2D100-L2P | Ge Fanuc Display
    QPJ-2D100-L2P | Ge Fanuc Display
QPJ-2D100-L2P | Ge Fanuc Display
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: QPJ-2D100-L2P

Description / Specifications

Description

The GE FANUC QPJ-2D100-L2P is a high-performance display unit. Designed for industrial applications, it delivers precise and clear visual information, enhancing monitoring and control within GE FANUC systems.



Technical Specifications



Brand GE FANUC
Category HMI / MMI / OIT
Subcategory Operator Interface
Series QuickPanel Jr.
Part Number QPJ-2D100-L2P
Screen Size 4.7"
LCD Type Monochrome Display
Input Voltage 24 VDC
NEMA Rating Type 4X/12 IP65
Software Version QuickDesigner Version 3.7
Amperage 0.5





Information About QPJ-2D100-L2P

This model is one of several out of the QuickPanel series of touch screen panels. These Human/Machine interface modules are outfitted with a 5 inch screen, lit with a monochrome, LCD display. The ID number for this catalog of products is “QPJ-2D100-L2P.”

The QPJ-2D100-L2P model is outfitted with these general specifications. Mechanically, it has dimensions that make it 5 inches tall, 6.75 inches wide, and has a depth of 2.125 inches. The standard weight for this miniature touch screen module is only 1.5 pounds.  The resolution displays an image that’s made of 240 x 320 pixels, with a viewing area that has a width of 4 inches and a height of 3 inches. The image is captured in monochrome, composed of flashing white and gray.

The QPJ-2D100-L2P’s environmental specifications allow it to operate in temperatures ranging between 0 to 50 degrees Celsius, or 32 to 122 degrees Fahrenheit.  This model is also able to operate without producing any condensation, within a range of relative humidity that’s between 5 to 85 percent.

Electrically, the internal systems of the QPJ-2D100-L2P requires an operating voltage of direct current, ranging between 20.4 to 27.6 volts. The maximum about of power that this touch screen consumes is up to 12 watts, and has an immunity with up to 20 milliseconds of power failure. This model is able to withstand up to 1500 V/AC, (at 10 milliamperes over 1 minute, max), before overloading. The insulation is at 10 M (@ 500 V/AC)



Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The GE FANUC QPJ-2D100-L2P is a high-performance display unit. Designed for industrial applications, it delivers precise and clear visual information, enhancing monitoring and control within GE FANUC systems.



Technical Specifications



Brand GE FANUC
Category HMI / MMI / OIT
Subcategory Operator Interface
Series QuickPanel Jr.
Part Number QPJ-2D100-L2P
Screen Size 4.7"
LCD Type Monochrome Display
Input Voltage 24 VDC
NEMA Rating Type 4X/12 IP65
Software Version QuickDesigner Version 3.7
Amperage 0.5





Information About QPJ-2D100-L2P

This model is one of several out of the QuickPanel series of touch screen panels. These Human/Machine interface modules are outfitted with a 5 inch screen, lit with a monochrome, LCD display. The ID number for this catalog of products is “QPJ-2D100-L2P.”

The QPJ-2D100-L2P model is outfitted with these general specifications. Mechanically, it has dimensions that make it 5 inches tall, 6.75 inches wide, and has a depth of 2.125 inches. The standard weight for this miniature touch screen module is only 1.5 pounds.  The resolution displays an image that’s made of 240 x 320 pixels, with a viewing area that has a width of 4 inches and a height of 3 inches. The image is captured in monochrome, composed of flashing white and gray.

The QPJ-2D100-L2P’s environmental specifications allow it to operate in temperatures ranging between 0 to 50 degrees Celsius, or 32 to 122 degrees Fahrenheit.  This model is also able to operate without producing any condensation, within a range of relative humidity that’s between 5 to 85 percent.

Electrically, the internal systems of the QPJ-2D100-L2P requires an operating voltage of direct current, ranging between 20.4 to 27.6 volts. The maximum about of power that this touch screen consumes is up to 12 watts, and has an immunity with up to 20 milliseconds of power failure. This model is able to withstand up to 1500 V/AC, (at 10 milliamperes over 1 minute, max), before overloading. The insulation is at 10 M (@ 500 V/AC)



Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
