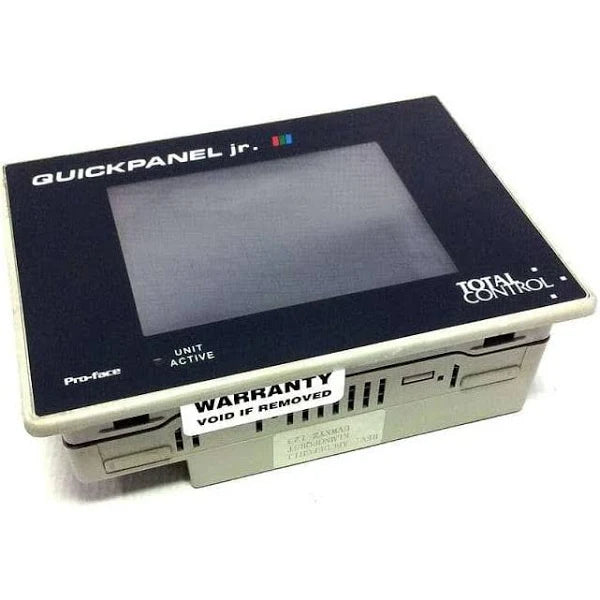

QPJ-2D100-S2P | GE Fanuc QuickPanel 4.7" STN Color HMI Touch Screen
- Regular price
- $2,062.00
- Sale price
- $2,062.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QPJ-2D100-S2P
Description
The GE Fanuc QPJ-2D100-S2P is a compact 4.7-inch QuickPanel HMI designed for intuitive operator interaction in industrial automation systems. Its 240 × 320 STN color display provides clear visualization within a small footprint, making it suitable for space-restricted control panels. Operating on 24V DC power, it maintains reliable performance with built-in power failure immunity and robust electrical tolerance.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | GE Fanuc |
| Category | HMI / MMI / OIT |
| Part Number | QPJ-2D100-S2P |
| Subcategory | Operator Interface |
| Screen Size | 4.7" |
| Resolution | 240 × 320 pixels |
| LCD Type | STN color display |
| Input Voltage | 24 VDC (20.4–27.6 VDC) |
| Power Failure Immunity | 20 ms |
| Electrical Withstand | 1500 VAC, 10 mA, 1 minute |
| NEMA Rating | 4X / 12, IP65 (front) |
| Software Version | QuickDesigner 3.7 |
| Operating Temperature | 0–50°C |
| Storage Temperature | –20–60°C |
| Dimensions | 5" H × 6.75" W × 2.125" D |
| Weight | 1.5 lb |
Information About QPJ-2D100-S2P
The QPJ-2D100-S2P is part of the GE QuickPanel series, engineered to deliver reliable and efficient operator interface capabilities across industrial environments. Featuring a 240 × 320 super-twisted nematic (STN) LCD, it offers a 4" × 3" viewing area optimized for machine-level monitoring and control. Its electrical design includes a 20.4–27.6 VDC operating range and the ability to withstand 1500 VAC isolation, matching the rugged performance expected from GE Fanuc automation hardware. The unit carries a NEMA Type 4X/12 (IP65) rating on the front panel, ensuring protection against dust, water, and industrial contaminants. With support for QuickDesigner Version 3.7 software, the QPJ-2D100-S2P integrates easily into existing GE control architectures, offering a dependable and compact HMI solution.
Key Features
- 240 × 320 STN Color Display: Provides a sharp, compact visualization interface suitable for machine-level operations.
- 4.7-Inch Touchscreen Panel: Features a 4" × 3" viewing area in an efficient form factor for tight control panel layouts.
- 24V DC Industrial Power Range: Operates from 20.4–27.6 VDC with 20 ms power loss immunity for continuous reliability.
- High Electrical Isolation: Withstands 1500 VAC at 10 mA for one minute, ensuring durable protection in demanding environments.
- NEMA 4X/12, IP65 Front Rating: Offers resistance to dust, splashing water, and industrial fluids for harsh-area deployment.
- QuickDesigner 3.7 Compatible: Supports GE’s established HMI development environment for rapid design and commissioning.
- Compact & Lightweight Construction: Measures 5" × 6.75" × 2.125" and weighs only 1.5 lb for simplified panel mounting.
- Reliable Environmental Operation: Functions within 0–50°C and stores safely at –20–60°C for versatile installation conditions.
The QPJ-2D100-S2P delivers the reliability and precision required for compact HMI applications in GE Fanuc QuickPanel automation systems.
