QPJ-ABR-201 | General Electric QuickPanel

Description

The QPJABR201, classified as a communication module, facilitates connectivity between the A-B Remote I/O system and a QuickPanel touch screen unit. Although these modules are optional, they offer enhanced functionality by enabling interaction between QuickPanel units and major programmable logic controllers. Compatible systems include A-B Remote I/O, A-B DH Plus, Modbus Plus, Genius I/O, Profibus, DeviceNet, and Interbus-S.

QuickPanel models feature advanced backlighting options, including amber electroluminescent, liquid crystal, or super twisted nematic displays. Power intake options include direct current (20 to 27 V/DC) or alternating current (85 to 132 V/AC).

Technical Specifications

Information About QPJ-ABR-201

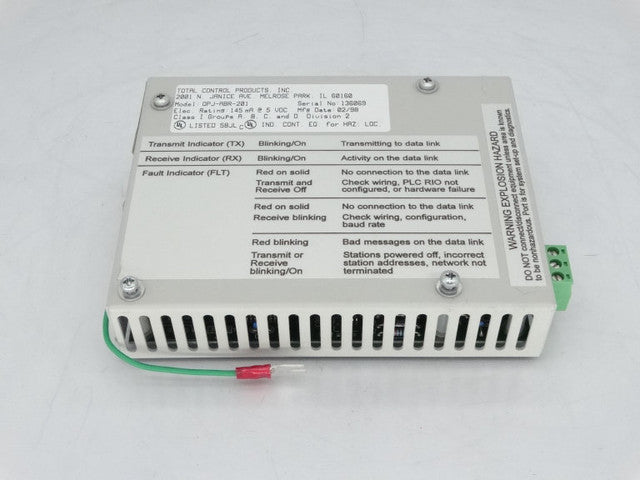

The General Electric QPJ-ABR-201 is a high-performance A-B Remote I/O Interface Module, specifically designed for integration within Human-Machine Interface (HMI), Man-Machine Interface (MMI), and Operator Interface Terminal (OIT) systems. As a critical component within the OIT boards/module subcategory, the QPJ-ABR-201 facilitates seamless communication between control systems and remote I/O devices, enhancing the overall efficiency and reliability of industrial automation setups.

This interface module operates with a current rating of 145 mA, ensuring low power consumption while maintaining robust performance. Its efficient design allows it to handle complex data communication tasks without compromising on power efficiency, making it an ideal choice for energy-conscious industrial environments.

The QPJ-ABR-201 requires a stable power supply of 5 VDC, which is standard for many industrial control systems. This voltage requirement ensures that the module can be easily integrated into existing setups without the need for extensive power supply modifications. The 5 VDC power supply also contributes to the module's reliability, providing consistent power to support its data processing and communication functions.

Functionally, the QPJ-ABR-201 serves as an A-B Remote I/O Interface Module. This means it is responsible for managing the data exchange between Allen-Bradley remote I/O devices and the central control system. By effectively bridging these components, the module ensures that data from remote sensors, actuators, and other devices are accurately transmitted to and from the control system, enabling real-time monitoring and control of industrial processes.

The QPJ-ABR-201 is engineered to support a wide range of industrial applications, providing the versatility needed to accommodate various control system configurations. Its robust construction and reliable performance make it suitable for use in harsh industrial environments where consistent operation is crucial.

In terms of installation, the QPJ-ABR-201 is designed for ease of integration. Its compact form factor and standardized connectors allow for straightforward mounting and connection within existing HMI, MMI, and OIT systems. This ease of installation helps minimize downtime and ensures that the module can be quickly deployed to enhance the functionality of the control system.

In summary, the General Electric QPJ-ABR-201 A-B Remote I/O Interface Module is a vital component for industrial automation systems requiring reliable data communication between remote I/O devices and central control systems. With a current rating of 145 mA and a power supply requirement of 5 VDC, this module offers efficient performance and ease of integration. Its role in managing data exchange within HMI, MMI, and OIT systems underscores its importance in maintaining the accuracy and efficiency of industrial processes. The QPJ-ABR-201 exemplifies General Electric's commitment to quality and innovation, providing a dependable solution for enhancing industrial automation systems.
