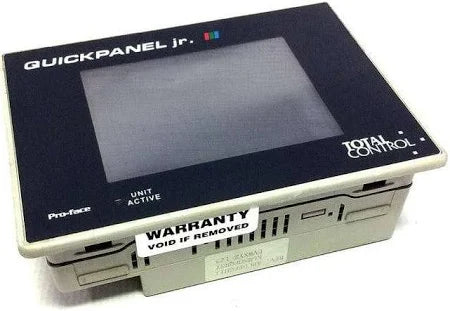

QPJ2D100S2P | Ge Fanuc QuickPanel Jr. Color Touchscreen HMI Operator Interface
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QPJ2D100S2P
Description
The GE Fanuc QPJ2D100S2P is a compact QuickPanel Jr. HMI designed for operator control and monitoring in industrial automation systems. It features a color STN touchscreen, operates on 24 V DC power, and supports serial communication through a 25-pin D-shell interface.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | GE Fanuc |
| Category | HMI / MMI / OIT |
| Part Number | QPJ2D100S2P |
| Subcategory | Operator Interface |
| Series | QuickPanel Jr. |
| Screen Size | 4.7 in |
| LCD Type | STN Color Display |
| Display Resolution | 240 × 320 pixels |
| Display Colors | 16 hues (8 solid, 8 flashing) |
| Input Voltage | 24 V DC (20.4–27.6 V DC) |
| Power Consumption | Up to 12 W |
| Communication Interface | 25-pin D-shell serial interface |
| NEMA Rating | Type 4X / 12, IP65 |
| Cooling Method | Natural air convection |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Dimensions (W×H×D) | 6.71 × 5.43 × 3.437 in |
| Weight | Approx. 1.5 lbs |
Information About QPJ2D100S2P
The QPJ2D100S2P is part of the GE Fanuc QuickPanel Jr. HMI family developed for compact and cost-effective operator interface applications. It is built with a color STN touchscreen that supports basic visualization, alarms, and operator input. The unit integrates serial communication via a 25-pin D-shell connector and is configured using QuickDesigner version 3.7 software. It is typically used in small machine control panels where space efficiency and reliable operator interaction are required.
Key Features
- Compact Color Touchscreen Interface: Provides a 4.7-inch STN color display suitable for basic visualization and operator input tasks.
- QuickPanel Jr. Platform: Designed for entry-level and space-constrained industrial HMI applications.
- Serial Communication Support: Includes a 25-pin D-shell interface for reliable serial device connectivity.
- 24 V DC Power Operation: Compatible with standard industrial control power systems.
- Rugged Front Protection: Rated NEMA Type 4X/12 and IP65 for resistance to dust and water in industrial environments.
- Natural Convection Cooling: Fanless design supports quiet operation and reduced maintenance.
- QuickDesigner Software Compatibility: Enables straightforward configuration and application development.
The QPJ2D100S2P delivers the reliability and precision required for compact operator interface solutions in industrial automation systems.
