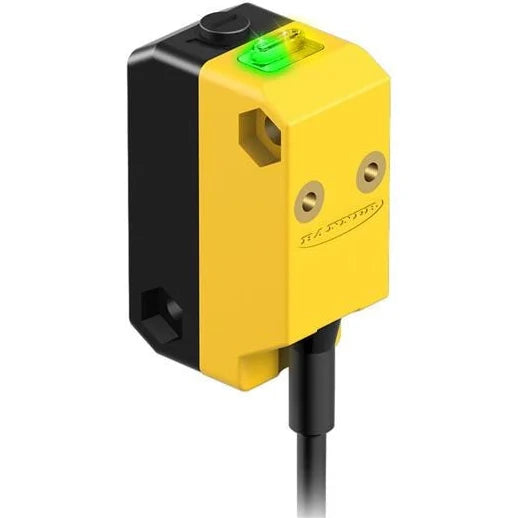

QS18VP6LLPQ5 | Banner QS18 Laser Polar Retro Sensor – 10m Range
- Regular price
- $147.00
- Sale price
- $147.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QS18VP6LLPQ5
Description
The Banner Engineering QS18VP6LLPQ5 is a World-Beam QS18 laser-based polarized retroreflective photoelectric sensor designed for precise and reliable small-object detection. With a visible red Class 1 laser, a sensing range up to 10 meters, and complementary solid-state PNP outputs, this compact sensor provides high-performance detection in demanding industrial applications.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Banner Engineering |
| Series | World-Beam QS18 |
| Part Number | QS18VP6LLPQ5 |
| Product Type | Photoelectric Sensor |
| Sensing Mode | Polarized Retroreflective |
| Light Source | Visible Red Laser |
| Sensing Range | 0.1–10 m |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary Solid-State PNP |
| Connector Type | M12 Euro-style |
| Cable Length | 150 mm pigtail |
| Number of Pins | 4 |
| Housing Style | QS18 Standard Body |
| Application | Small object detection, position sensing, automation |
| Operating Indicators | 360° LED status indicators |
Information About QS18VP6LLPQ5
The Banner QS18VP6LLPQ5 is part of the well-known QS18 series—compact, rugged, and versatile photoelectric sensors used across manufacturing, automation, and material-handling applications. This model features polarized retroreflective sensing with a visible red laser, delivering superior precision and excellent performance even in long-range or close-up conditions. The narrow laser beam makes the sensor ideal for detecting small objects, registration marks, and applications requiring accurate position control. Banner’s built-in crosstalk rejection safeguards performance when multiple sensors operate nearby, minimizing false triggers caused by optical interference. Designed for fast installation, this model includes a 150 mm pigtail with M12 Euro-style connector, enabling quick integration into existing wiring systems. Bright 360° visible indicators provide clear feedback of signal strength and sensor status, improving diagnostics and reducing setup time.
Key Features:
- Visible Class 1 red laser for precise detection
- Polarized retroreflective sensing mode
- Long 0.1–10 m sensing range
- Complementary solid-state PNP outputs
- Narrow beam for small-object detection and exact position sensing
- 150 mm pigtail with Euro-style M12 connector
- Crosstalk rejection for multi-sensor environments
- 360° bright LED indicators for easy alignment and status feedback
- Rugged QS18 housing with sealed electronics
- Operates on 10–30 VDC
Compact yet rugged, the QS18VP6LLPQ5 features sealed circuitry, durable housing, and reliable operation using a 10–30 VDC supply voltage. Its complementary solid-state PNP outputs provide flexible switching for a wide range of industrial applications.
Description
The Banner Engineering QS18VP6LLPQ5 is a World-Beam QS18 laser-based polarized retroreflective photoelectric sensor designed for precise and reliable small-object detection. With a visible red Class 1 laser, a sensing range up to 10 meters, and complementary solid-state PNP outputs, this compact sensor provides high-performance detection in demanding industrial applications.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Banner Engineering |
| Series | World-Beam QS18 |
| Part Number | QS18VP6LLPQ5 |
| Product Type | Photoelectric Sensor |
| Sensing Mode | Polarized Retroreflective |
| Light Source | Visible Red Laser |
| Sensing Range | 0.1–10 m |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary Solid-State PNP |
| Connector Type | M12 Euro-style |
| Cable Length | 150 mm pigtail |
| Number of Pins | 4 |
| Housing Style | QS18 Standard Body |
| Application | Small object detection, position sensing, automation |
| Operating Indicators | 360° LED status indicators |
Information About QS18VP6LLPQ5
The Banner QS18VP6LLPQ5 is part of the well-known QS18 series—compact, rugged, and versatile photoelectric sensors used across manufacturing, automation, and material-handling applications. This model features polarized retroreflective sensing with a visible red laser, delivering superior precision and excellent performance even in long-range or close-up conditions. The narrow laser beam makes the sensor ideal for detecting small objects, registration marks, and applications requiring accurate position control. Banner’s built-in crosstalk rejection safeguards performance when multiple sensors operate nearby, minimizing false triggers caused by optical interference. Designed for fast installation, this model includes a 150 mm pigtail with M12 Euro-style connector, enabling quick integration into existing wiring systems. Bright 360° visible indicators provide clear feedback of signal strength and sensor status, improving diagnostics and reducing setup time.
Key Features:
- Visible Class 1 red laser for precise detection
- Polarized retroreflective sensing mode
- Long 0.1–10 m sensing range
- Complementary solid-state PNP outputs
- Narrow beam for small-object detection and exact position sensing
- 150 mm pigtail with Euro-style M12 connector
- Crosstalk rejection for multi-sensor environments
- 360° bright LED indicators for easy alignment and status feedback
- Rugged QS18 housing with sealed electronics
- Operates on 10–30 VDC
Compact yet rugged, the QS18VP6LLPQ5 features sealed circuitry, durable housing, and reliable operation using a 10–30 VDC supply voltage. Its complementary solid-state PNP outputs provide flexible switching for a wide range of industrial applications.
