Product Description P/N: QSE-CI-DMX
Description

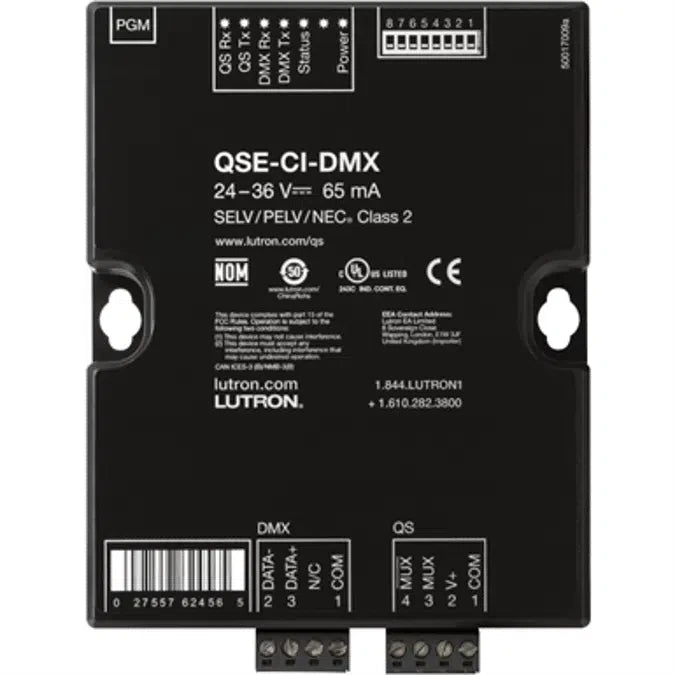

The Lutron QSE-CI-DMX is a QS DMX control interface that enables integration between Lutron lighting zones and DMX512-controlled devices. It supports RGB/CMY color control and up to 32 DMX channels, operating within QS standalone, HomeWorks, Quantum, or Athena systems. Designed for seamless system-wide integration, it enables dynamic lighting and color control in professional environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | QSE-CI-DMX |
| Subcategory | DMX Interfaces |
| Input Voltage | 24–36 V DC |
| Power Consumption | 1.2 W (2 Power Draw Units on QS Link) |
| DMX Channels Supported | Up to 32 per device |
| System Compatibility | QS Standalone, HomeWorks, Quantum, Athena |
| Control Modes | 1-Channel (dimming/integration), 3-Channel (RGB/CMY) |
| Color Tables | Built-in RGB/CMY lookup table (customizable via software) |
| Communication Protocol | DMX512 + Lutron QS Link |
| Memory | Power failure memory included |
| Mounting Options | Surface, rack (LUT-19AV-1U), or Lutron enclosures (LV14, PNL8, etc.) |
| Wiring Type | SELV/PELV Class 2: 18 AWG (power), 22–18 AWG twisted shielded (data) |
| Surge Protection | IEC 61000-4-5 compliant |
| ESD Protection | IEC 61000-4-2 compliant |
| Environmental Rating | Indoor use only, 32–104°F (0–40°C), 0–90% RH, non-condensing |
| Dimensions | 4.26 in x 5.26 in x 1.06 in (108.2 mm x 133.6 mm x 26.9 mm) |
| Certifications | CE, UL, cUL, S-Mark, RoHS |
| Weight | ~0.6 lb |
Information About QSE-CI-DMX
The QSE-CI-DMX serves as a bridge between Lutron’s QS-based lighting systems and DMX512 protocols used in theatrical or architectural lighting. It maps Lutron zones to DMX channels, supporting 1-channel or 3-channel RGB/CMY color control modes. It is fully compatible with GRAFIK Eye QS in standalone configurations, or integrated into Quantum, Athena, or HomeWorks systems for distributed DMX control. Built for robust automation, it includes power failure memory, color lookup tables, and programmable logic via design software.
Key Features:
- Lutron-to-DMX Integration: Maps QS zones to 1 or 3 DMX512 channels for color control.
- RGB/CMY Support: Includes customizable lookup tables for color transitions.
- System Compatibility: Operates in HomeWorks, Quantum, Athena, or standalone QS environments.
- Supports 32 Channels: Controls up to 32 DMX channels per device.
- Low Voltage Power: Operates on 24–36 VDC, 1.2 W, and uses 2 PDUs on QS Link.
- Flexible Mounting: Surface mount or rack/enclosure mount with supported Lutron kits.
- Power Failure Memory: Automatically returns to previous state after power loss.
- Secure Communication: Meets ESD and surge protection standards.
The QSE-CI-DMX delivers advanced color control and seamless integration between Lutron and DMX512 lighting systems for creative and architectural lighting applications.
