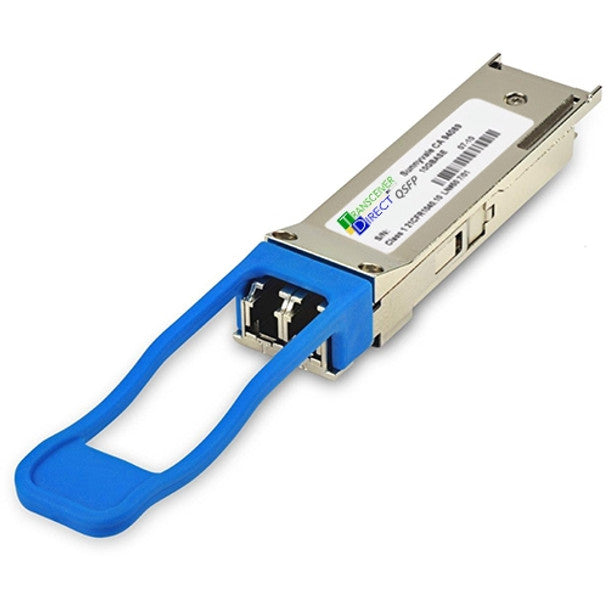

QSFP-100G-LR4-S | Cisco LR4 QSFP Transceiver
- Regular price
- $364.00
- Sale price
- $364.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSFP-100G-LR4-S
Description
The Cisco QSFP-100G-LR4-S is a 100G QSFP28 optical transceiver for long-range data transmission up to 10 km over singlemode fiber (SMF). It uses LC duplex connectors and operates at a 1295 nm wavelength.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Transceivers & Optical Modules
|
| Part Number | QSFP-100G-LR4-S |
| Subcatecory |
100G Long-Range Transceivers
|
| Form Factor | QSFP28 |
| Data Transfer Rate | 100 Gbps |
| Transceiver Type | 100GBASE-LR4 |
| Fiber Type | Singlemode Fiber (SMF) |
| Wavelength | 1295 nm |
| Connector Type | LC Duplex |
| Transmission Distance | 10 km |
| Transmit Power | -4.3 to +4.5 dBm |
| Dimensions (HxWxD) | 13.5 x 18.4 x 72.4 mm |
| Weight | 100g |
Information About QSFP-100G-LR4-S
The QSFP-100G-LR4-S is a 100GBASE-LR4 optical transceiver module from Cisco, designed to provide high-speed long-distance connectivity over singlemode fiber (SMF). Engineered for data centers, enterprise networks, and service providers, this QSFP28 hot-swappable transceiver delivers reliable 100Gbps transmission up to 10 kilometers. This module uses a standard LC duplex connector and operates on the 1295 nm wavelength, offering compatibility with a wide range of Cisco equipment.
Key Features:
-
100Gbps Data Rate: High-performance 100GBASE-LR4 transmission
-
10 km Reach: Long-range communication over singlemode fiber
-
QSFP28 Form Factor: Compact and hot-swappable for flexible upgrades
-
LC Duplex Interface: Standardized connection for fiber-optic links
-
Wide Temperature Range: Operates in temperatures from 0°C to 70°C
-
Cisco Compatible: Ensures seamless integration with Cisco networking gear
-
Transmit and Receive Power: Ranges suited for long-distance signal reliability
The QSFP-100G-LR4-S is a robust and cost-effective solution for 100G long-haul connectivity in modern enterprise and data center networks.
